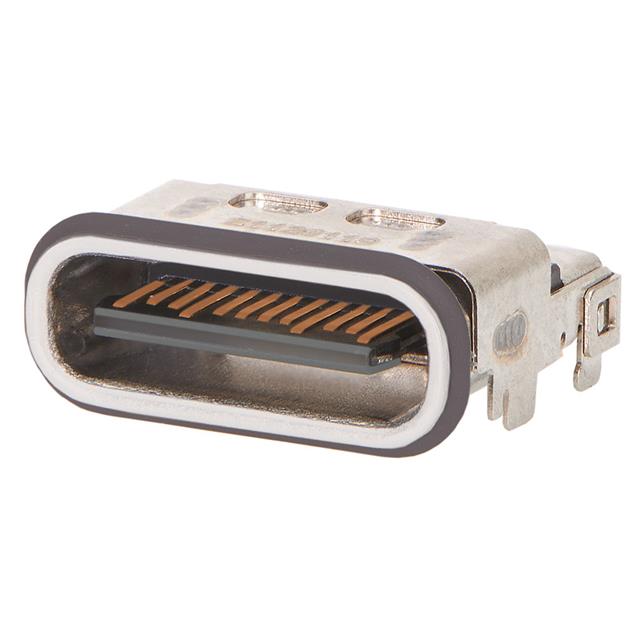

Universal Serial Bus (USB) Shielded I/O Receptacle, Type C, 24 Pin, Right-Angle, Top Mount, Surface Mount, Waterproof
Universal Serial Bus (USB) Shielded I/O Receptacle, Type C, 24 Pin, Right-Angle, Top Mount, Surface Mount, Waterproof
Universal Serial Bus (USB) Shielded I/O Receptacle, Type C, 24 Pin, Right-Angle, Top Mount, Surface Mount, Waterproof
| Part | Current Rating (Amps) | Specifications | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Termination | Insulation Color | Shell/Shielding Material | Connector Type | Gender | Number of Ports | Mating Cycles | Features | Ingress Protection | Mounting Feature | Shielding | Voltage - Rated | Contact Finish | Material Flammability Rating | Number of Contacts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.25 A 1.25 A 5 A | USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1)) | 85 °C | -40 °C | Surface Mount Right Angle Through Hole | Solder | Black | Stainless Steel | USB-C (USB TYPE-C) | Receptacle | 1 | 10000 | Board Guide | IPX8 - Waterproof | Horizontal | Shielded | 30 V | Gold | UL94 V-0 | 24 |
