725-064 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 64POS 0.100

Part	Termination Rows	Material - Insulation	Number of Positions/Bay/Row	Mounting Type	Color	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Card Type	Card Thickness [Max]	Card Thickness [Min]	Number of Rows	Number of Positions	Contact Material	Pitch	Pitch	Contact Type	Read Out	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Termination Rows [custom]	Number of Rows [custom]
EDAC Inc. 725-064-520-101	1	Polyester Thermoplastic	64	Through Hole	Black	Gold	30 Áin	0.76 Ám	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	1	64	Copper Alloy	0.1 "	2.54 mm	Cantilever	Single	Press-Fit	-40 C	105 ░C	Female
EDAC Inc. 725-064-522-101	1	Polyester Thermoplastic	64	Through Hole	Black	Gold	30 Áin	0.76 Ám	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	1	64	Copper Alloy	0.1 "	2.54 mm	Cantilever	Single	Press-Fit	-40 C	105 ░C	Female
EDAC Inc. 725-064-541-101	1	Polyester Thermoplastic	64	Through Hole	Black	Gold	30 Áin	0.76 Ám	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	1	64	Copper Alloy	0.1 "	2.54 mm	Cantilever	Single	Press-Fit Wire Wrap	-40 C	105 ░C	Female

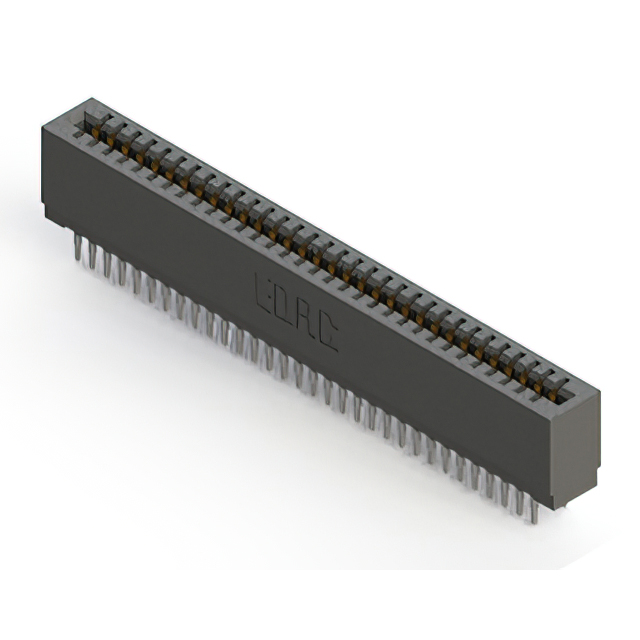

EDAC Inc. 725-064-525-201		Polyester Thermoplastic	32	Through Hole	Black	Gold	30 Áin	0.76 Ám	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm		64	Copper Alloy	0.1 "	2.54 mm	Cantilever	Dual	Press-Fit	-40 C	105 ░C	Female	2	2
EDAC Inc. 725-064-522-201		Polyester Thermoplastic	32	Through Hole	Black	Gold	30 Áin	0.76 Ám	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm		64	Copper Alloy	0.1 "	2.54 mm	Cantilever	Dual	Press-Fit	-40 C	105 ░C	Female	2	2

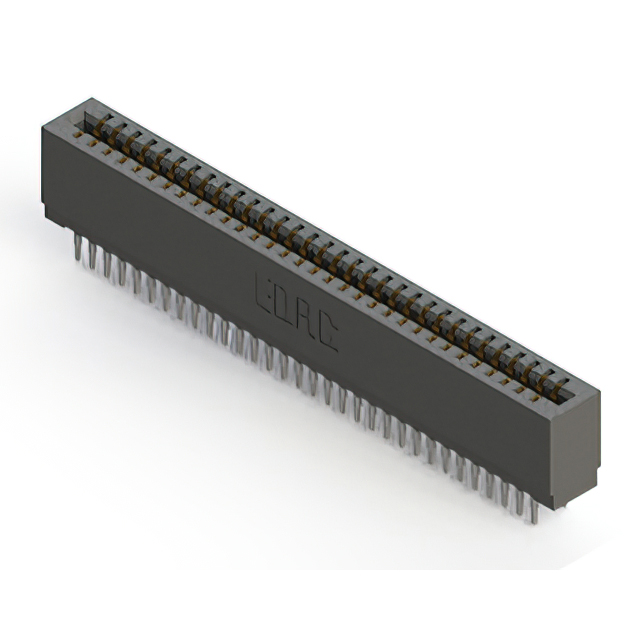

EDAC Inc. 725-064-560-201		Polyester Thermoplastic	32	Through Hole	Black	Gold	30 Áin	0.76 Ám	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm		64	Copper Alloy	0.1 "	2.54 mm	Cantilever Make Before Break	Dual	Press-Fit	-40 C	105 ░C	Female	2	2
EDAC Inc. 725-064-525-101	1	Polyester Thermoplastic	64	Through Hole	Black	Gold	30 Áin	0.76 Ám	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	1	64	Copper Alloy	0.1 "	2.54 mm	Cantilever	Single	Press-Fit	-40 C	105 ░C	Female
EDAC Inc. 725-064-520-201		Polyester Thermoplastic	32	Through Hole	Black	Gold	30 Áin	0.76 Ám	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm		64	Copper Alloy	0.1 "	2.54 mm	Cantilever	Dual	Press-Fit	-40 C	105 ░C	Female	2	2
EDAC Inc. 725-064-545-201		Polyester Thermoplastic	32	Through Hole	Black	Gold	30 Áin	0.76 Ám	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm		64	Copper Alloy	0.1 "	2.54 mm	Cantilever	Dual	Press-Fit Wire Wrap	-40 C	105 ░C	Female	2	2
EDAC Inc. 725-064-540-201		Polyester Thermoplastic	32	Through Hole	Black	Gold	30 Áin	0.76 Ám	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm		64	Copper Alloy	0.1 "	2.54 mm	Cantilever	Dual	Press-Fit Wire Wrap	-40 C	105 ░C	Female	2	2
