MDS-060 Series

Catalog

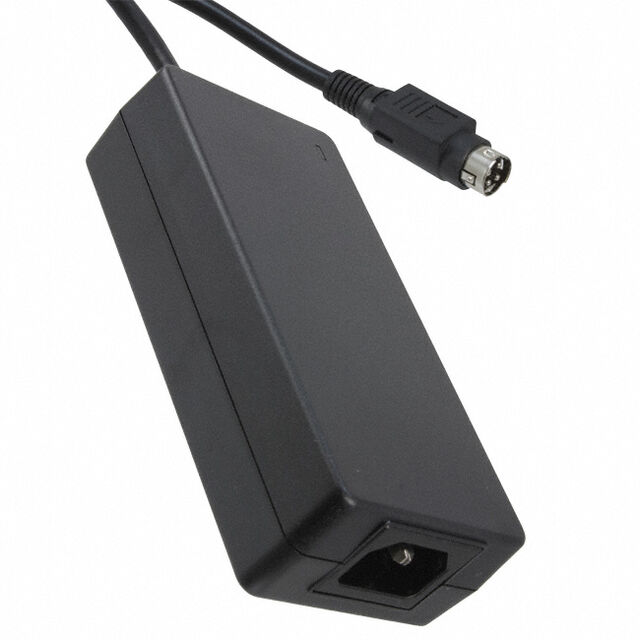

AC/DC DESKTOP ADAPTER 24V 60W

Part	Weight	Weight	Voltage - Output	Form	Cord Length	Cord Length	Efficiency	No Load Power Consumption	Output Connector	Region Utilized	Standard Number	Current - Output (Max) [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Input Connector	Applications	Input Type	Power (Watts)
Delta Electronics MDS-060AAS24 BA	0.553 lb	250.84 g	24 V	Desktop (Class I)	1.2 m	47.2 in	Level VI	500 mW	Power DIN 4 Pin	International	50581 55011 55032 60601-1 60950-1	2.5 A	275 VAC	90 VAC	CB Scheme CE EN UL	40 °C	0 °C	34.1 mm	1.34 "	135 mm	5.31 in	2.44 "	62 mm	IEC 320-C14	ITE (Commercial) Medical	Cord (Sold Separately)	60 W
Delta Electronics MDS-060AAS15 BA	0.553 lb	250.84 g	15 V	Desktop (Class I)	1.2 m	47.2 in	Level VI	500 mW	Power DIN 4 Pin	International	50581 55011 55032 60601-1 60950-1	4 A	275 VAC	90 VAC	CB Scheme CE EN UL	40 °C	0 °C	34.1 mm	1.34 "	135 mm	5.31 in	2.44 "	62 mm	IEC 320-C14	ITE (Commercial) Medical	Cord (Sold Separately)	60 W
