499-87 Series

Manufacturer: Preci-Dip

Catalog

CONN SOCKET 8P 0.1 GOLD PCB R/A

Part	Contact Shape	Insulation Material	Contact Material	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Fastening Type	Mounting Type	Connector Type	Current Rating (Amps)	Contact Type	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows [custom]	Contact Finish Thickness - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Pitch - Mating	Pitch - Mating	Contact Finish - Mating

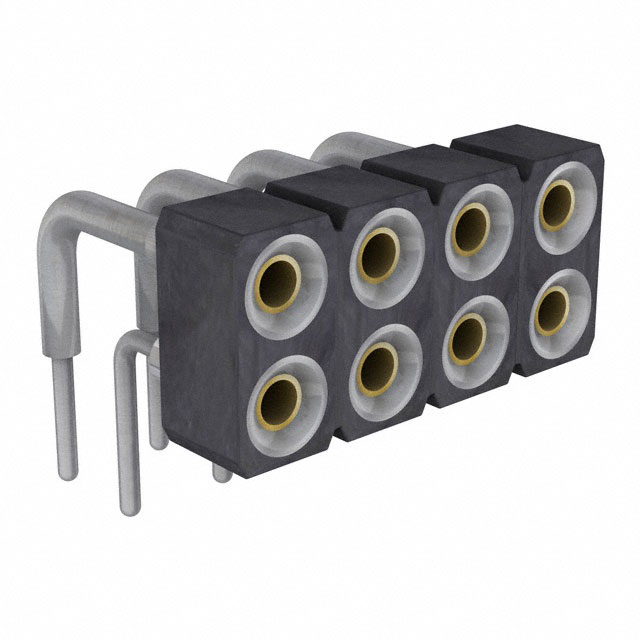

Preci-Dip 499-87-208-10-003101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	UL94 V-0	0.1 in	2.54 mm	Black	Push-Pull	Right Angle Through Hole	Socket	3 A	Female Socket	All	0.2 in	5.08 mm	Tin	0.126 "	3.2 mm	2	Flash	8	-55 C	125 °C	Solder	0.1 "	2.54 mm	Gold
Preci-Dip 499-87-246-10-003101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	UL94 V-0	0.1 in	2.54 mm	Black	Push-Pull	Right Angle Through Hole	Socket	3 A	Female Socket	All	0.2 in	5.08 mm	Tin	0.126 "	3.2 mm	2	Flash	46	-55 C	125 °C	Solder	0.1 "	2.54 mm	Gold
Preci-Dip 499-87-268-10-003101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	UL94 V-0	0.1 in	2.54 mm	Black	Push-Pull	Right Angle Through Hole	Socket	3 A	Female Socket	All	0.2 in	5.08 mm	Tin	0.126 "	3.2 mm	2	Flash	68 positions	-55 C	125 °C	Solder	0.1 "	2.54 mm	Gold
Preci-Dip 499-87-258-10-003101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	UL94 V-0	0.1 in	2.54 mm	Black	Push-Pull	Right Angle Through Hole	Socket	3 A	Female Socket	All	0.2 in	5.08 mm	Tin	0.126 "	3.2 mm	2	Flash	58	-55 C	125 °C	Solder	0.1 "	2.54 mm	Gold
Preci-Dip 499-87-272-10-003101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	UL94 V-0	0.1 in	2.54 mm	Black	Push-Pull	Right Angle Through Hole	Socket	3 A	Female Socket	All	0.2 in	5.08 mm	Tin	0.126 "	3.2 mm	2	Flash	72	-55 C	125 °C	Solder	0.1 "	2.54 mm	Gold
Preci-Dip 499-87-214-10-003101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	UL94 V-0	0.1 in	2.54 mm	Black	Push-Pull	Right Angle Through Hole	Socket	3 A	Female Socket	All	0.2 in	5.08 mm	Tin	0.126 "	3.2 mm	2	Flash	14	-55 C	125 °C	Solder	0.1 "	2.54 mm	Gold
Preci-Dip 499-87-260-10-003101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	UL94 V-0	0.1 in	2.54 mm	Black	Push-Pull	Right Angle Through Hole	Socket	3 A	Female Socket	All	0.2 in	5.08 mm	Tin	0.126 "	3.2 mm	2	Flash	60	-55 C	125 °C	Solder	0.1 "	2.54 mm	Gold
Preci-Dip 499-87-226-10-003101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	UL94 V-0	0.1 in	2.54 mm	Black	Push-Pull	Right Angle Through Hole	Socket	3 A	Female Socket	All	0.2 in	5.08 mm	Tin	0.126 "	3.2 mm	2	Flash	26	-55 C	125 °C	Solder	0.1 "	2.54 mm	Gold
Preci-Dip 499-87-236-10-003101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	UL94 V-0	0.1 in	2.54 mm	Black	Push-Pull	Right Angle Through Hole	Socket	3 A	Female Socket	All	0.2 in	5.08 mm	Tin	0.126 "	3.2 mm	2	Flash	36	-55 C	125 °C	Solder	0.1 "	2.54 mm	Gold
Preci-Dip 499-87-262-10-003101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	UL94 V-0	0.1 in	2.54 mm	Black	Push-Pull	Right Angle Through Hole	Socket	3 A	Female Socket	All	0.2 in	5.08 mm	Tin	0.126 "	3.2 mm	2	Flash	62	-55 C	125 °C	Solder	0.1 "	2.54 mm	Gold
