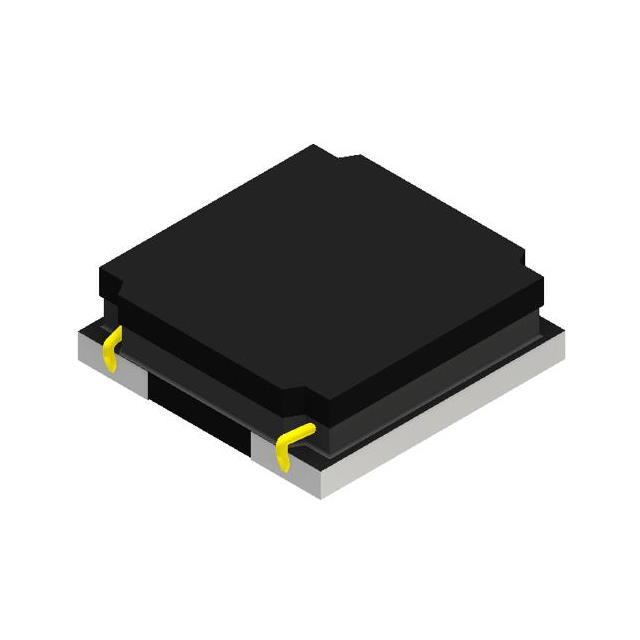

HPC 3012BMV Series
Manufacturer: TAI-TECH Advanced Electronics Co., Ltd.
Beta
⌘K
FIXED IND 3.3UH 2.1A 0.13OHM SMD
| Part | Material - Core | Current Rating (Amps) | Inductance Frequency - Test | Mounting Type | Package / Case | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Shielding | Tolerance | DC Resistance (DCR) | Type | Current - Saturation (Isat) | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Inductance | Supplier Device Package | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TAI-TECH Advanced Electronics Co., Ltd. | Ferrite | 2.1 A | 100 kHz | Surface Mount | 3030 Metric | 1212 | 1.2 mm | 0.047 " | Shielded | 20 % | 130 mOhm | Wirewound | 1.6 A | -55 C | 125 °C | AEC-Q200 | 3.3 µH | 3012 | 3 mm | 0.118 in | 3 mm | 0.118 " | |
TAI-TECH Advanced Electronics Co., Ltd. | Ferrite | 3.8 A | 100 kHz | Surface Mount | 3030 Metric | 1212 | 1.2 mm | 0.047 " | Shielded | 20 % | Wirewound | 3.3 A | -55 C | 125 °C | AEC-Q200 | 1 µH | 3012 | 3 mm | 0.118 in | 3 mm | 0.118 " | 48 mOhm | |
TAI-TECH Advanced Electronics Co., Ltd. | Ferrite | 1.7 A | 100 kHz | Surface Mount | 3030 Metric | 1212 | 1.2 mm | 0.047 " | Shielded | 20 % | Wirewound | 1.3 A | -55 C | 125 °C | AEC-Q200 | 4.7 ÁH | 3012 | 3 mm | 0.118 in | 3 mm | 0.118 " | 168 mOhm | |
TAI-TECH Advanced Electronics Co., Ltd. | Ferrite | 2.5 A | 100 kHz | Surface Mount | 3030 Metric | 1212 | 1.2 mm | 0.047 " | Shielded | 20 % | Wirewound | 2.1 A | -55 C | 125 °C | AEC-Q200 | 2.2 µH | 3012 | 3 mm | 0.118 in | 3 mm | 0.118 " | 90 mOhm | |
TAI-TECH Advanced Electronics Co., Ltd. | Ferrite | 1.2 A | 100 kHz | Surface Mount | 3030 Metric | 1212 | 1.2 mm | 0.047 " | Shielded | 20 % | 345 mOhm | Wirewound | 900 mA | -55 C | 125 °C | AEC-Q200 | 10 µH | 3012 | 3 mm | 0.118 in | 3 mm | 0.118 " | |
TAI-TECH Advanced Electronics Co., Ltd. | Ferrite | 800 mA | 100 kHz | Surface Mount | 3030 Metric | 1212 | 1.2 mm | 0.047 " | Shielded | 20 % | Wirewound | 630 mA | -55 C | 125 °C | AEC-Q200 | 22 µH | 3012 | 3 mm | 0.118 in | 3 mm | 0.118 " | 840 mOhm |
