1747049 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

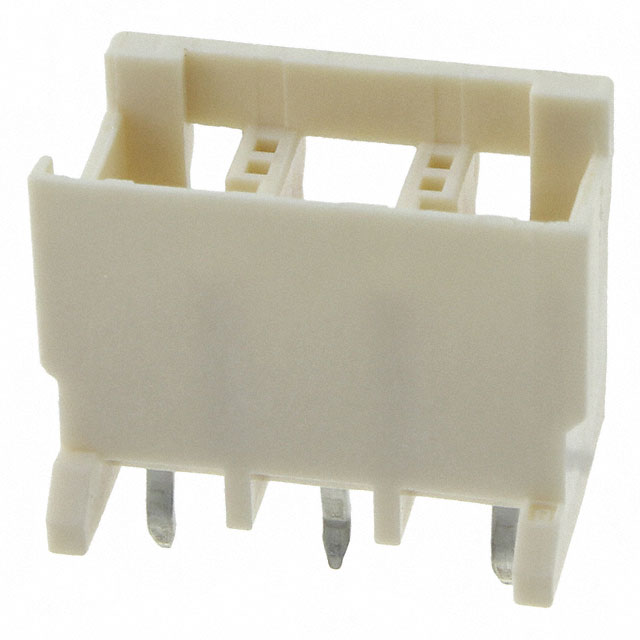

(1747049-1) GRACE INERTIA CONNECTOR 6.5 3POS HEADER
| Part | Features | Style | Fastening Type | Contact Type | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Termination | Insulation Color | Applications | Pitch - Mating | Pitch - Mating | Insulation Material | Contact Shape | Current Rating (Amps) | Voltage Rating | Number of Rows | Contact Material | Insulation Height | Insulation Height | Number of Positions Loaded | Contact Finish - Post | Mounting Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Board Guide | Board to Cable/Wire | Latch Holder | Tab | UL94 V-0 | -30 ░C | 105 ░C | Shrouded - 4 Wall | Press-Fit Solder | Natural | General Purpose Industrial | 2.5 mm | 0.098 in | Polyamide (PA66) Nylon 6/6 Glass Filled | Rectangular | Varies by Wire Gauge | 300 VAC | 1 | Copper Alloy | 14.5 mm | 0.571 in | All | Tin | Through Hole | Header |
