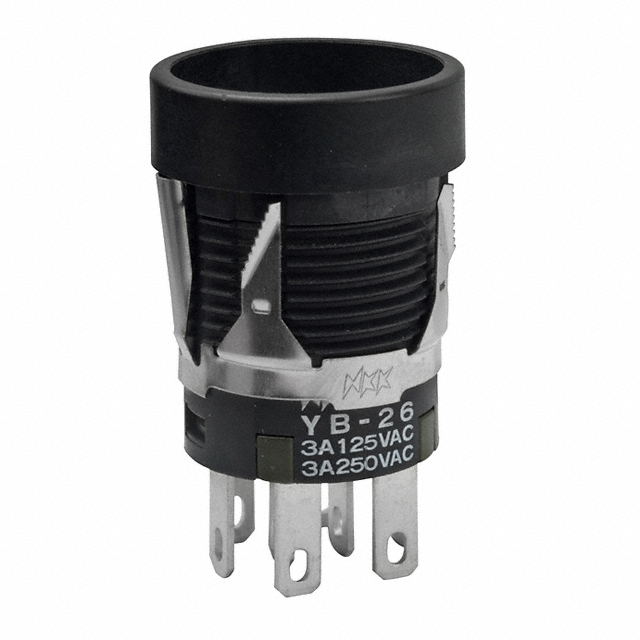

YB26MK Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH PUSHBUTTON DPDT 3A 125V
| Part | Electrical Life | Mechanical Life | Actuator Marking | Mounting Type | Illumination Voltage (Nominal) | Circuit | Type | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Color - Actuator/Cap | Switch Function | Features | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 100000 Cycles | 200000 Cycles | No Marking | Panel Mount Snap-In | 2 VDC | DPDT | Illuminated Standard | 16 mm | 3 A | 125 V | 30 V | Clear | On-On | Voltage Reduction Lighting | Solder Quick Connect - 0.110" (2.8mm) | 50 °C | -25 °C | Button Round | Amber LED |
NKK Switches | 100000 Cycles | 200000 Cycles | No Marking | Panel Mount Snap-In | 5 VDC | DPDT | Illuminated Standard | 16 mm | 3 A | 125 V | 30 V | Clear | On-On | Voltage Reduction Lighting | Solder Quick Connect - 0.110" (2.8mm) | 50 °C | -25 °C | Button Round | Green/Red LED |
NKK Switches | 100000 Cycles | 200000 Cycles | No Marking | Panel Mount Snap-In | 12 VDC | DPDT | Illuminated Standard | 16 mm | 3 A | 125 V | 30 V | Clear | On-On | Voltage Reduction Lighting | Solder Quick Connect - 0.110" (2.8mm) | 50 °C | -25 °C | Button Round | Amber LED |
NKK Switches | 100000 Cycles | 200000 Cycles | No Marking | Panel Mount Snap-In | DPDT | Standard | 16 mm | 0.4 VA | 28 V | 28 V | On-On | Voltage Reduction Lighting | Solder Quick Connect - 0.110" (2.8mm) | 70 °C | -25 °C | Plunger for Cap | |||
NKK Switches | 100000 Cycles | 200000 Cycles | No Marking | Panel Mount Snap-In | DPDT | Standard | 16 mm | 3 A | 125 V | 30 V | Red | On-On | Voltage Reduction Lighting | Solder Quick Connect - 0.110" (2.8mm) | 70 °C | -25 °C | Button Round |
