55020-02 Series

SW TGL SPST MOM HENCOL 12

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

SW TGL SPST MOM HENCOL 12

Part	Actuator Type	Panel Cutout Dimensions [diameter]	Termination Style	Actuator Material	Voltage Rating - DC	Switch Function	Actuator Length [x]	Bushing Thread	Circuit	Illumination	Current Rating (Amps)
Littelfuse/Commercial Vehicle Products 55020-02	Standard Round	11.9 mm	Screw Terminal	Brass Nickel Plated	24 V	Off-Mom	17.46 mm	15/32-32	SPST-NO	Non-Illuminated	15 A

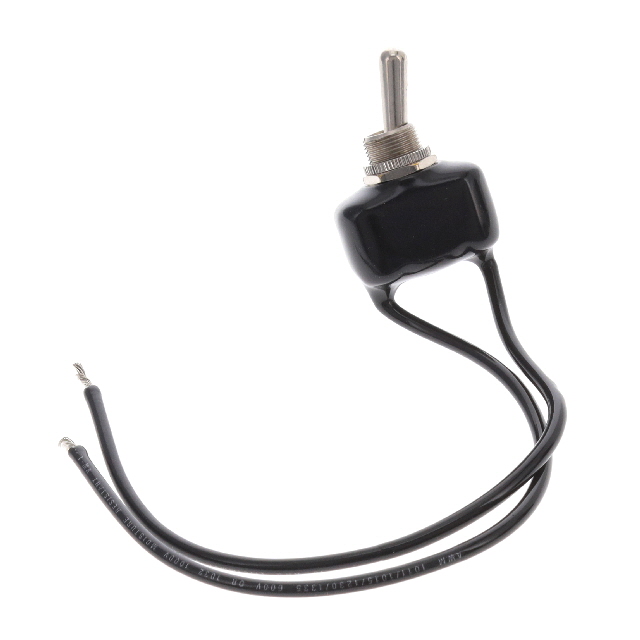

Littelfuse/Commercial Vehicle Products 55020-04	Standard Round	11.9 mm	Wire Leads	Brass Nickel Plated	12 V	Off-Mom	17.46 mm	15/32-32	SPST-NO	Non-Illuminated	25 A

Catalog

SW TGL SPST MOM HENCOL 12

Description

Littelfuse Toggle Switches are designed for universal applications within harsh environments. Their mounting, body, and actuator features are designed for ease-of-use and extended product lifecycle. The Standard Heavy Duty Toggle Switch Series is our most robust series of toggle switches, available in several configurations of actuators and circuitries.
