LH795 Series

Catalog

RISC MCU 32-BIT FLASH

Part	Oscillator Type	Number of I/O	Mounting Type	Data Converters [x]	Data Converters [y]	Speed	Connectivity	Supplier Device Package	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Package / Case	Program Memory Type	RAM Size	Core Processor	Operating Temperature [Max]	Operating Temperature [Min]	Core Size	Peripherals

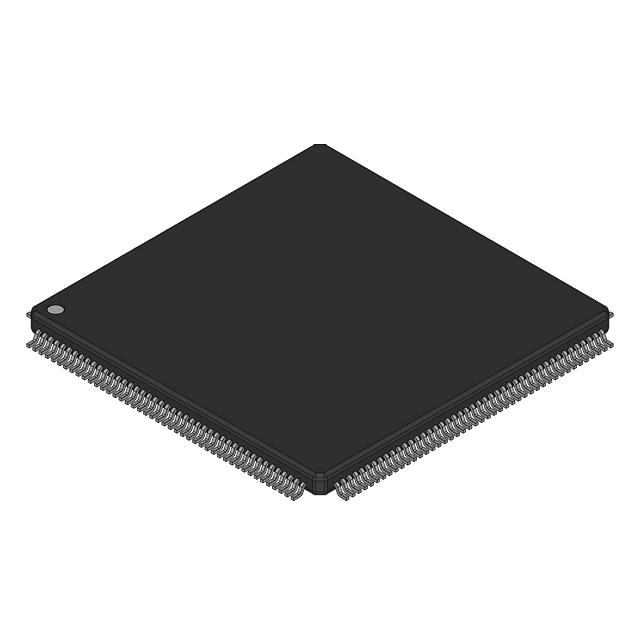

Freescale Semiconductor - NXP LH79520N0Q000B1557
Freescale Semiconductor - NXP LH79525N0Q100A1;55	External	86	Surface Mount	10	10 b	76.2 MHz	EBI/EMI Ethernet I2C IrDA Microwire SPI SSI SSP UART/USART USB	176-LQFP (20x20)	3.6 V	1.7 V	176-LQFP	ROMless	16 K	ARM7®	85 °C	-40 °C	32-Bit Single-Core	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT

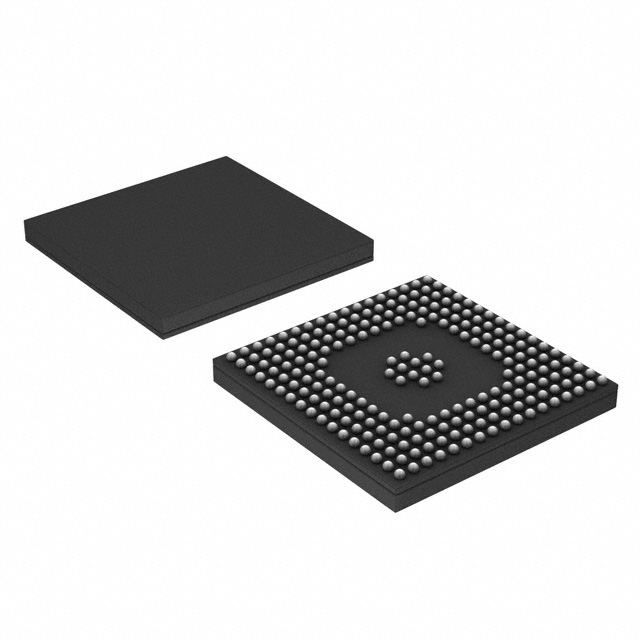

Freescale Semiconductor - NXP LH79524N0F100A1;55	External	108	Surface Mount	10	10 b	76.2 MHz	EBI/EMI Ethernet I2C IrDA Microwire SPI SSI SSP UART/USART USB	208-LFBGA (14x14)	3.6 V	1.7 V	208-LFBGA	ROMless	16 K	ARM7®	85 °C	-40 °C	32-Bit Single-Core	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT
Freescale Semiconductor - NXP LH79525N0Q100A1	Internal	86	Surface Mount	10	10 b	76.205 MHz	EBI/EMI Ethernet I2C IrDA Microwire SPI SSI SSP UART/USART USB	176-LQFP (20x20)	1.9 V	1.7 V	176-LQFP	ROMless	16 K	ARM720T™ RISC	85 °C	-40 °C	32-Bit Single-Core	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT
