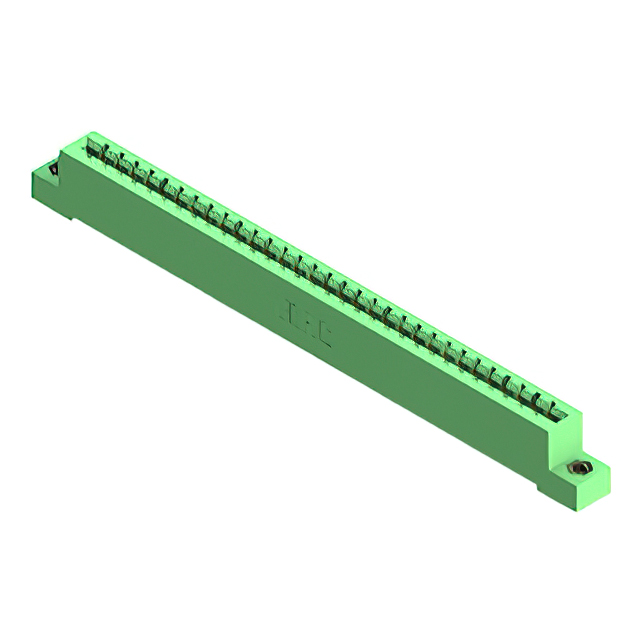

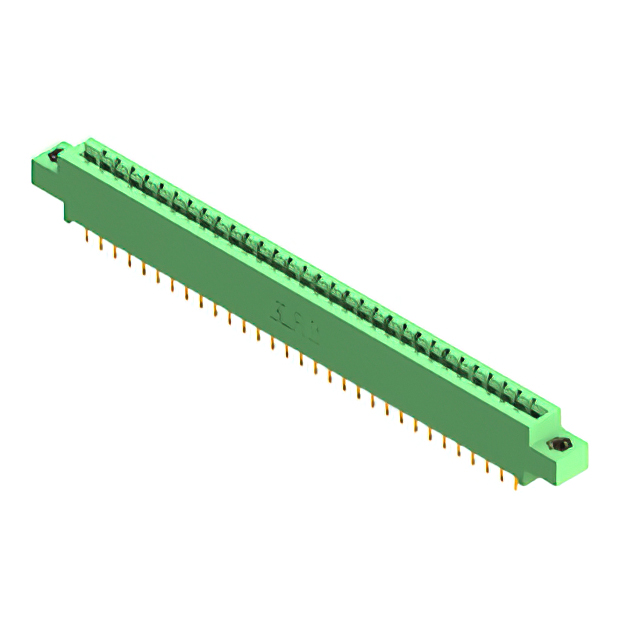

837-031 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE SGL FMALE 31POS 0.156
...
| Part | Number of Positions | Color | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Flange Feature | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Pitch [x] | Pitch [x] | Contact Material | Gender | Read Out | Number of Positions/Bay/Row [custom] | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Mounting Type | Termination | Termination Rows | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 31 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | M3 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 0.156 in | 3.96 mm | Copper Alloy | Female | Single | 31 | Non Specified - Single Edge | 125 °C | -40 °C | 1 | Through Hole | Wire Wrap | 1 | Cantilever | ||||
 EDAC Inc. | 31 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Floating Bobbin Flush Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 0.156 in | 3.96 mm | Copper Alloy | Female | Single | 31 | Non Specified - Single Edge | 125 °C | -40 °C | 1 | Through Hole | Wire Wrap | 1 | Cantilever | 0.116 in | 2.95 mm | ||
 EDAC Inc. | 31 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 0.156 in | 3.96 mm | Copper Alloy | Female | Single | 31 | Non Specified - Single Edge | 125 °C | -40 °C | 1 | Through Hole | Wire Wrap | 1 | Cantilever | ||||
 EDAC Inc. | 31 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 0.156 in | 3.96 mm | Copper Alloy | Female | Single | 31 | Non Specified - Single Edge | 125 °C | -40 °C | 1 | Through Hole | Solder | 1 | Cantilever | ||||
 EDAC Inc. | 31 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 0.156 in | 3.96 mm | Copper Alloy | Female | Single | 31 | Non Specified - Single Edge | 125 °C | -40 °C | 1 | Through Hole Right Angle | Solder | 1 | Cantilever | |||||
 EDAC Inc. | 31 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 0.156 in | 3.96 mm | Copper Alloy | Female | Single | 31 | Non Specified - Single Edge | 125 °C | -40 °C | 1 | Through Hole Right Angle | Solder | 1 | Cantilever | ||||
 EDAC Inc. | 31 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Flush Mount M3 Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 0.156 in | 3.96 mm | Copper Alloy | Female | Single | 31 | Non Specified - Single Edge | 125 °C | -40 °C | 1 | Through Hole | Solder | 1 | Cantilever | ||||
 EDAC Inc. | 31 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 0.156 in | 3.96 mm | Copper Alloy | Female | Single | 31 | Non Specified - Single Edge | 125 °C | -40 °C | 1 | Through Hole | Wire Wrap | 1 | Cantilever | |||||
 EDAC Inc. | 31 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 0.156 in | 3.96 mm | Copper Alloy | Female | Single | 31 | Non Specified - Single Edge | 125 °C | -40 °C | 1 | Through Hole | Wire Wrap | 1 | Cantilever | 0.128 " | 3.25 mm | ||
 EDAC Inc. | 31 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Side Mount Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 0.156 in | 3.96 mm | Copper Alloy | Female | Single | 31 | Non Specified - Single Edge | 125 °C | -40 °C | 1 | Through Hole | Wire Wrap | 1 | Cantilever | 3.25 mm | 0.128 in |
