PBC29 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 58POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Mounting Type	Shrouding	Insulation Material	Overall Contact Length [x]	Overall Contact Length [x]	Fastening Type	Style	Insulation Height	Insulation Height	Number of Rows [custom]	Material Flammability Rating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Termination	Contact Type	Number of Positions	Contact Material	Number of Rows	Overall Contact Length	Overall Contact Length	Contact Length - Post [custom]	Contact Length - Post [custom]	Insulation Height [z]	Insulation Height [z]

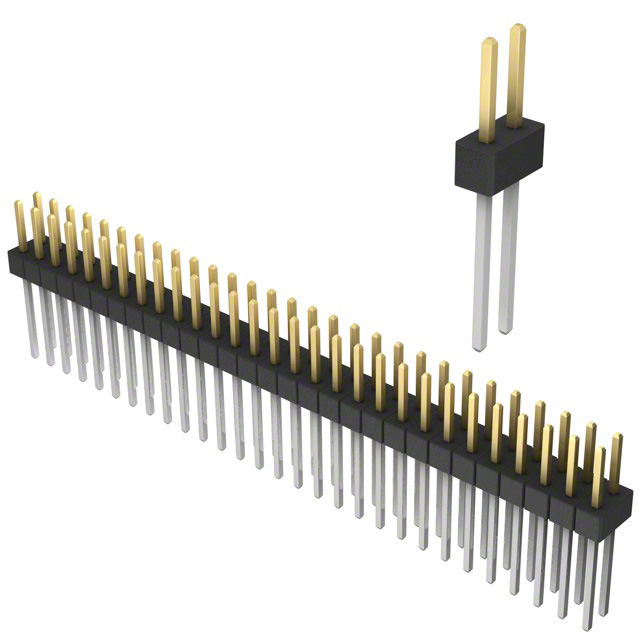

Sullins Connector Solutions PBC29DADN	2.54 µm	100 µin	All	Through Hole	Unshrouded	Polybutylene Terephthalate (PBT)	19.05 mm	0.75 in	Push-Pull	Board to Board Cable	0.1 in	2.54 mm	2	UL94 V-0	Header Breakaway	-65 ░C	125 °C	Tin	0.25 µm	10 µin	Black	0.1 "	2.54 mm	Gold	10.67 mm	0.42 in	0.1 in	2.54 mm	Square	0.23 in	5.84 mm	3 A	Solder	Male Pin	58	Phosphor Bronze
Sullins Connector Solutions PBC29SABN	2.54 µm	100 µin	All	Through Hole	Unshrouded	Polybutylene Terephthalate (PBT)			Push-Pull	Board to Board Cable	0.1 in	2.54 mm		UL94 V-0	Header Breakaway	-65 ░C	125 °C	Tin	0.25 µm	10 µin	Black	0.1 "	2.54 mm	Gold	5.84 mm	0.23 "			Square	0.23 in	5.84 mm	3 A	Solder	Male Pin	29	Phosphor Bronze	1	0.56 in	14.22 mm

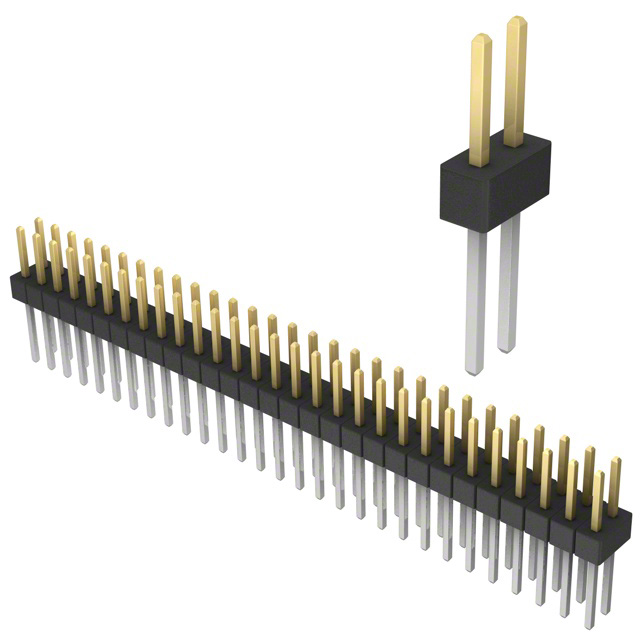

Sullins Connector Solutions PBC29DACN	2.54 µm	100 µin	All	Through Hole	Unshrouded	Polybutylene Terephthalate (PBT)			Push-Pull	Board to Board Cable	0.1 in	2.54 mm	2	UL94 V-0	Header Breakaway	-65 ░C	125 °C	Tin	0.25 µm	10 µin	Black	0.1 "	2.54 mm	Gold	8.13 mm	0.32 in	0.1 in	2.54 mm	Square	0.23 in	5.84 mm	3 A	Solder	Male Pin	58	Phosphor Bronze		0.65 in	16.51 mm

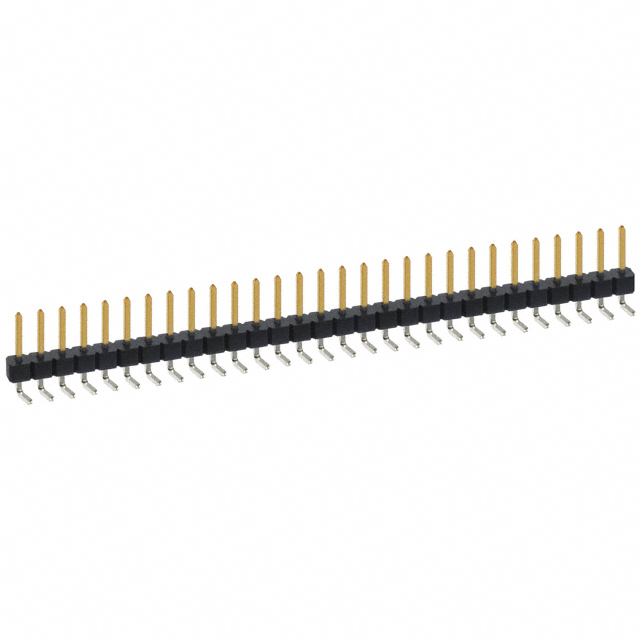

Sullins Connector Solutions PBC29SBAN	2.54 µm	100 µin	All	Right Angle Through Hole	Unshrouded	Polybutylene Terephthalate (PBT)			Push-Pull	Board to Board Cable	0.14 in	3.56 mm		UL94 V-0	Header Breakaway	-65 ░C	125 °C	Tin	0.25 µm	10 µin	Black	0.1 "	2.54 mm	Gold	2.54 mm	0.1 in			Square	0.23 in	5.84 mm	3 A	Solder	Male Pin	29	Phosphor Bronze	1

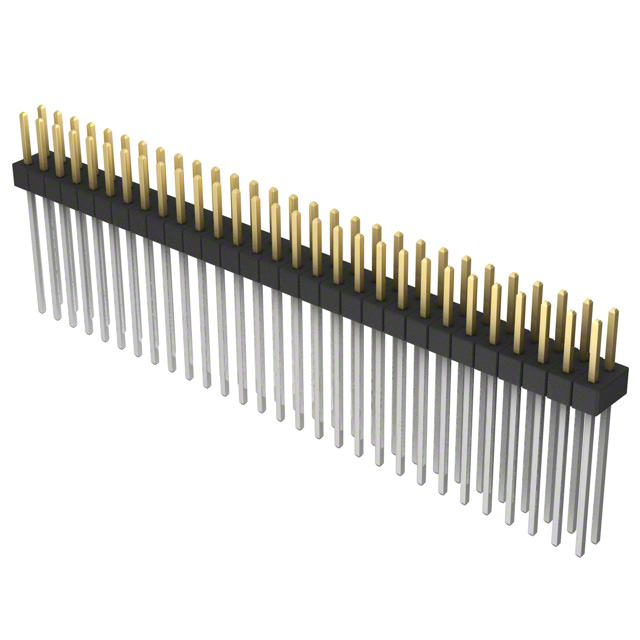

Sullins Connector Solutions PBC29DAFN	2.54 µm	100 µin	All	Through Hole	Unshrouded	Polybutylene Terephthalate (PBT)			Push-Pull	Board to Board Cable	0.1 in	2.54 mm	2	UL94 V-0	Header Breakaway	-65 ░C	125 °C	Tin	0.25 µm	10 µin	Black	0.1 "	2.54 mm	Gold			0.1 in	2.54 mm	Square	0.23 in	5.84 mm	3 A	Solder	Male Pin	58	Phosphor Bronze		0.95 in	24.13 mm	15.75 mm	0.62 "
Sullins Connector Solutions PBC29SFAN	2.54 µm	100 µin	All	Through Hole	Unshrouded	Polybutylene Terephthalate (PBT)	13.67 mm	0.538 in	Push-Pull	Board to Board Cable	0.1 in	2.54 mm		UL94 V-0	Header Breakaway	-65 ░C	125 °C	Tin	0.25 µm	10 µin	Black	0.1 "	2.54 mm	Gold	3.05 mm	0.12 in			Square	0.318 in	8.08 mm	3 A	Solder	Male Pin	29	Phosphor Bronze	1
Sullins Connector Solutions PBC29DFEN	2.54 µm	100 µin	All	Through Hole	Unshrouded	Polybutylene Terephthalate (PBT)			Push-Pull	Board to Board Cable	0.1 in	2.54 mm	2	UL94 V-0	Header Breakaway	-65 ░C	125 °C	Tin	0.25 µm	10 µin	Black	0.1 "	2.54 mm	Gold	13.21 mm	0.52 in	0.1 in	2.54 mm	Square	0.318 in	8.08 mm	3 A	Solder	Male Pin	58	Phosphor Bronze		0.938 in	23.83 mm
Sullins Connector Solutions PBC29DGAN	2.54 µm	100 µin	All	Right Angle Through Hole	Unshrouded	Polybutylene Terephthalate (PBT)			Push-Pull	Board to Board Cable			2	UL94 V-0	Header Breakaway	-65 ░C	125 °C	Tin	0.25 µm	10 µin	Black	0.1 "	2.54 mm	Gold	2.54 mm	0.1 in	0.1 in	2.54 mm	Square	0.318 in	8.08 mm	3 A	Solder	Male Pin	58	Phosphor Bronze						6.1 mm	0.24 in

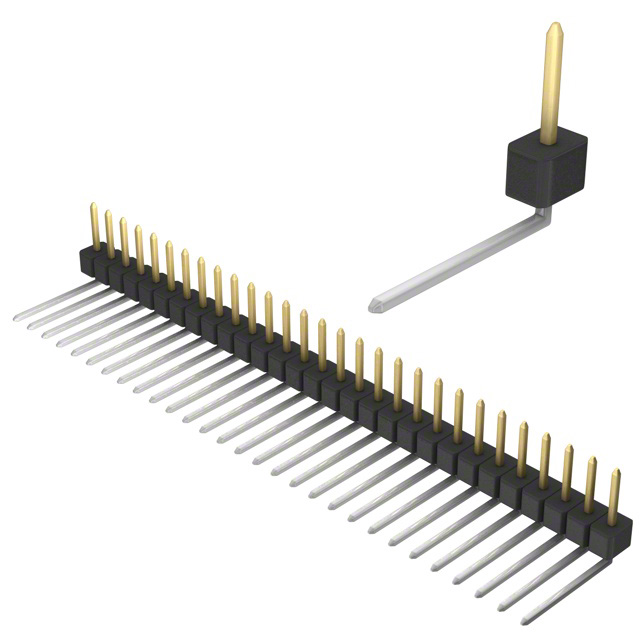

Sullins Connector Solutions PBC29SBDN	2.54 µm	100 µin	All	Right Angle Through Hole	Unshrouded	Polybutylene Terephthalate (PBT)			Push-Pull	Board to Board Cable	0.14 in	3.56 mm		UL94 V-0	Header Breakaway	-65 ░C	125 °C	Tin	0.25 µm	10 µin	Black	0.1 "	2.54 mm	Gold	10.16 mm	0.4 in			Square	0.23 in	5.84 mm	3 A	Solder	Male Pin	29	Phosphor Bronze	1
Sullins Connector Solutions PBC29DFAN	2.54 µm	100 µin	All	Through Hole	Unshrouded	Polybutylene Terephthalate (PBT)	13.67 mm	0.538 in	Push-Pull	Board to Board Cable	0.1 in	2.54 mm	2	UL94 V-0	Header Breakaway	-65 ░C	125 °C	Tin	0.25 µm	10 µin	Black	0.1 "	2.54 mm	Gold	3.05 mm	0.12 in	0.1 in	2.54 mm	Square	0.318 in	8.08 mm	3 A	Solder	Male Pin	58	Phosphor Bronze
