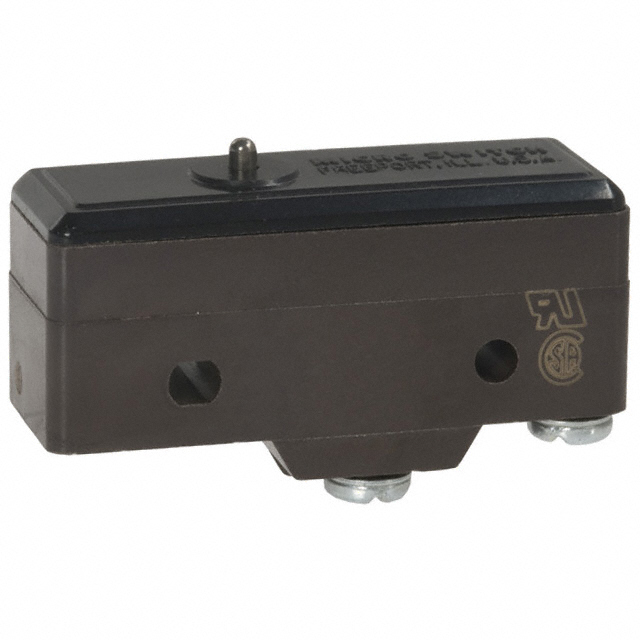

BA-3 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 25A 125V
| Part | Switch Function | Operating Position | Operating Position | Mechanical Life | Differential Travel | Differential Travel | Voltage Rating - AC | Operating Force [Max] | Operating Force [Min] | Circuit | Termination Style | Pretravel | Pretravel | Actuator Type | Release Force | Current Rating (Amps) | Mounting Type | Voltage Rating - DC | Overtravel | Overtravel | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | On-Mom | 0.64 in | 16.3 mm | 20000000 Cycles | 0.008 in | 0.2 mm | 125 V | 1077 gf | 737 gf | SPDT (DB/DM) | Screw Terminal | 1.65 mm | 0.065 in | Round (Pin Plunger) | 283 gf | 1 A 25 A | Chassis Mount | 125 VDC | 0.25 mm | 0.01 in | 85 °C | -55 °C |
