RR9LI1500 Series

Catalog

AC/DC DSKTP/WALL MT ADPT 24V 36W

Part	Form	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Polarization	Current - Output (Max) [Max]	Input Connector	Region Utilized	Power (Watts)	Efficiency	Output Connector [x]	Output Connector [diameter]	Output Connector	Cord Length	Cord Length	Standard Number	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Applications	Approval Agency	No Load Power Consumption	Input Type

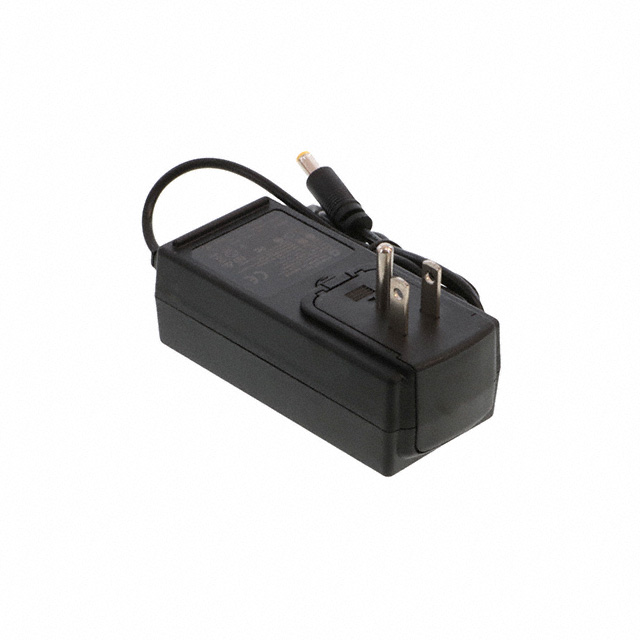

GlobTek, Inc. RR9LI1500CCPIMNAR6B	Desktop Wall Mount	24 V	264 VAC	90 VAC	-20 ░C	40 °C	Positive Center	1.5 A	IEC 320-C6 Multi-Blade (Single Blade Included)	International	36 W	Level VI	11 mm	2.1 mm 5.5 mm	Barrel Plug	60.2 in	1.53 m	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	1.83 "	38.2 mm	46.5 mm	101.7 mm	1.5 in	4 in	Household Appliances ITE (Commercial) Medical	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UkrSEPRO VCCI	75 mW	Cord (Sold Separately) Multi-Blade (Single Blade Included)

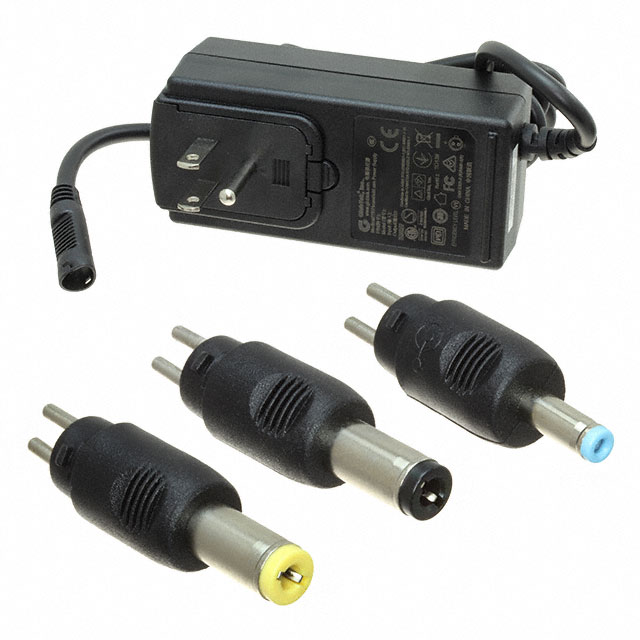

GlobTek, Inc. RR9LI1500T00NAIMR6B	Desktop Wall Mount	24 V	264 VAC	90 VAC	-20 ░C	40 °C		1.5 A	IEC 320-C6 Multi-Blade (Single Blade Included)	International	36 W	Level VI			Barrel Plug Kit (1.3mm x 3.5mm	59 in	1.5 m	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	1.83 "	38.2 mm	46.5 mm	101.7 mm	1.5 in	4 in	Household Appliances ITE (Commercial) Medical	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UkrSEPRO VCCI	75 mW	Cord (Sold Separately) Multi-Blade (Single Blade Included)
