FCE17B25 Series

Manufacturer: Amphenol ICC (Commercial Products)

Catalog

CONN D-SUB PLUG 25POS VERT SLDR

Part	Dielectric Material	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Color	Current Rating (Amps)	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Connector Type	Contact Type	Material Flammability Rating	Mounting Type	Number of Rows [custom]	Termination	Features	Contact Finish	Number of Positions	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Backset Spacing	Backset Spacing	Flange Feature
Amphenol ICC (Commercial Products) FCE17B25PE250	Thermoplastic Glass Filled	Phosphor Bronze	85 °C	-40 C	Black	5 A	B DB	3	Plug Male Pins	Signal	UL94 V-0	Through Hole	2	Solder	Filter Grounding Indents	Gold	25	D-Sub	0.38 µm	15 µin	Housing/Shell (Unthreaded)
Amphenol ICC (Commercial Products) FCE17B25PA650	Thermoplastic Glass Filled	Phosphor Bronze	85 °C	-40 C	Black	5 A	B DB	3	Plug Male Pins	Signal	UL94 V-0	Right Angle Through Hole	2	Solder	Board Lock Filter Grounding Indents	Gold	25	D-Sub	0.38 µm	15 µin	Housing/Shell (M3)	8.08 mm	0.318 "
Amphenol ICC (Commercial Products) FCE17B25SB410	Thermoplastic Glass Filled	Phosphor Bronze	85 °C	-40 C	Black	5 A	B DB	3	Receptacle Female Sockets	Signal	UL94 V-0	Right Angle Through Hole	2	Solder	Board Lock Filter	Gold	25	D-Sub	0.38 µm	15 µin	Housing/Shell	10.29 mm	0.405 in	4-40
Amphenol ICC (Commercial Products) FCE17B25PC2EB	Thermoplastic Glass Filled	Phosphor Bronze	85 °C	-40 C	Black	5 A	B DB	3	Plug Male Pins	Signal	UL94 V-0	Right Angle Through Hole	2	Solder	Filter Grounding Indents Mounting Brackets	Gold	25	D-Sub	0.38 µm	15 µin	Housing/Shell (Unthreaded)	14.99 mm	0.59 in
Amphenol ICC (Commercial Products) FCE17B25SA240	Thermoplastic Glass Filled	Phosphor Bronze	85 °C	-40 C	Black	5 A	B DB	3	Receptacle Female Sockets	Signal	UL94 V-0	Right Angle Through Hole	2	Solder	Board Lock Filter	Gold	25	D-Sub	0.38 µm	15 µin	Housing/Shell (Unthreaded)	8.08 mm	0.318 "
Amphenol ICC (Commercial Products) FCE17B25PC48B	Thermoplastic Glass Filled	Phosphor Bronze	85 °C	-40 C	Black	5 A	B DB	3	Plug Male Pins	Signal	UL94 V-0	Right Angle Through Hole	2	Solder	Filter Grounding Indents Mounting Brackets	Gold	25	D-Sub	0.38 µm	15 µin	Board Side (4-40)	14.99 mm	0.59 in

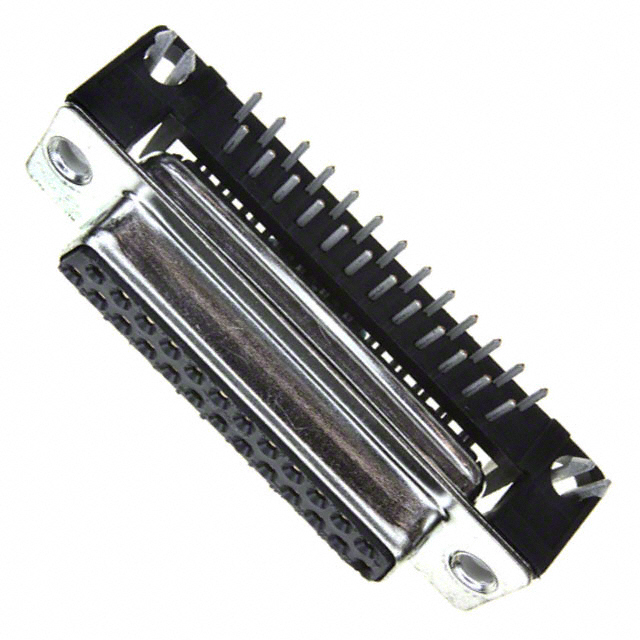

Amphenol ICC (Commercial Products) FCE17-B25SA-450	Thermoplastic Glass Filled	Phosphor Bronze	85 °C	-40 C	Black	5 A	B DB	3	Receptacle Female Sockets	Signal	UL94 V-0	Right Angle Through Hole	2	Solder	Board Lock Filter	Gold	25	D-Sub	0.38 µm	15 µin	Housing/Shell	8.08 mm	0.318 "	4-40

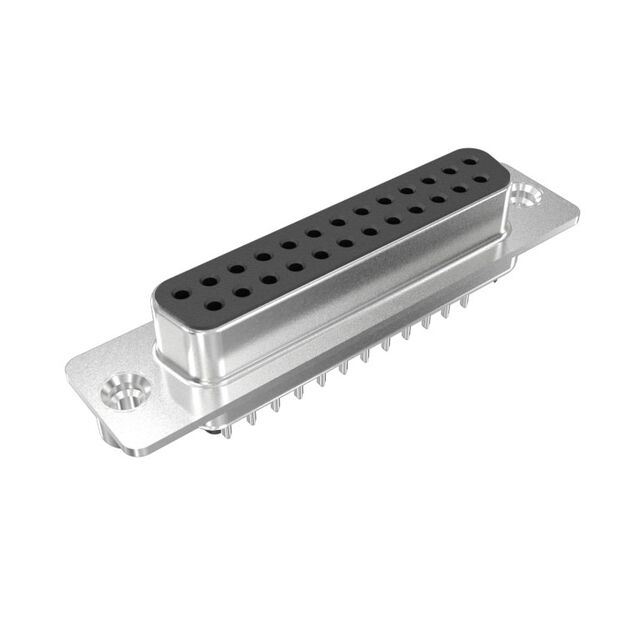

Amphenol ICC (Commercial Products) FCE17B25SE410	Thermoplastic Glass Filled	Phosphor Bronze	85 °C	-40 C	Black	5 A	B DB	3	Receptacle Female Sockets	Signal	UL94 V-0	Through Hole	2	Solder	Filter	Gold	25	D-Sub	0.38 µm	15 µin	Board Side (4-40)
Amphenol ICC (Commercial Products) FCE17B25PE450	Thermoplastic Glass Filled	Phosphor Bronze	85 °C	-40 C	Black	5 A	B DB	3	Plug Male Pins	Signal	UL94 V-0	Through Hole	2	Solder	Filter Grounding Indents	Gold	25	D-Sub	0.38 µm	15 µin	Board Side (4-40)

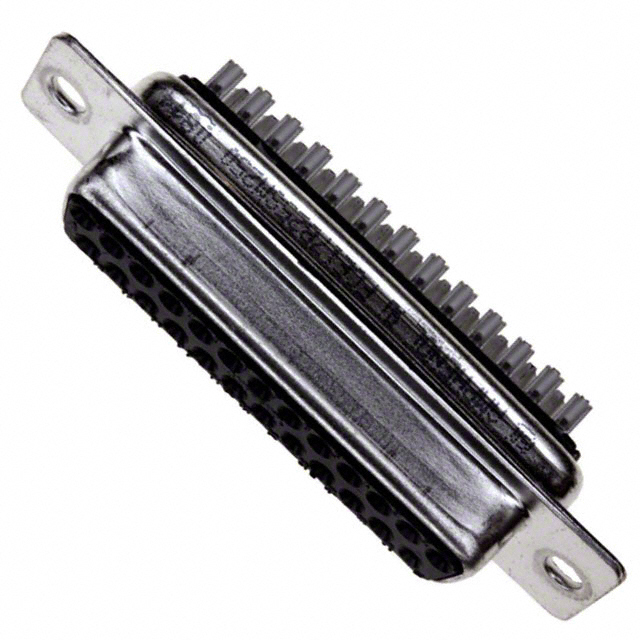

Amphenol ICC (Commercial Products) FCE17-B25SM-250	Thermoplastic Glass Filled	Phosphor Bronze	85 °C	-40 C	Black	5 A	B DB	3	Receptacle Female Sockets	Signal	UL94 V-0	Free Hanging (In-Line)	2		Filter	Gold	25	D-Sub	0.38 µm	15 µin	Housing/Shell (Unthreaded)
