V15H2 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH SNAP ACT SPST-NO 22A 250V

Part	Operating Force	Voltage Rating - AC	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Pretravel	Pretravel	Differential Travel	Differential Travel	Circuit	Mechanical Life	Switch Function	Termination Style	Actuator Type	Operating Position	Operating Position	Current Rating (Amps)	Overtravel [custom]	Overtravel [custom]	Release Force	Electrical Life
Honeywell Sensing and Productivity Solutions V15H22-CP100A02-K	60 gf	250 V	Chassis Mount	150 °C	-25 °C	0.125 in	3.2 mm	1.2 mm	0.047 in	SPST-NO	5000000 Cycles	Off-Mom	Quick Connect - 0.250" (6.3mm)	Lever Straight	15.3 mm	0.602 in	22 A	0.051 "	1.3 mm	10 gf	10000 Cycles

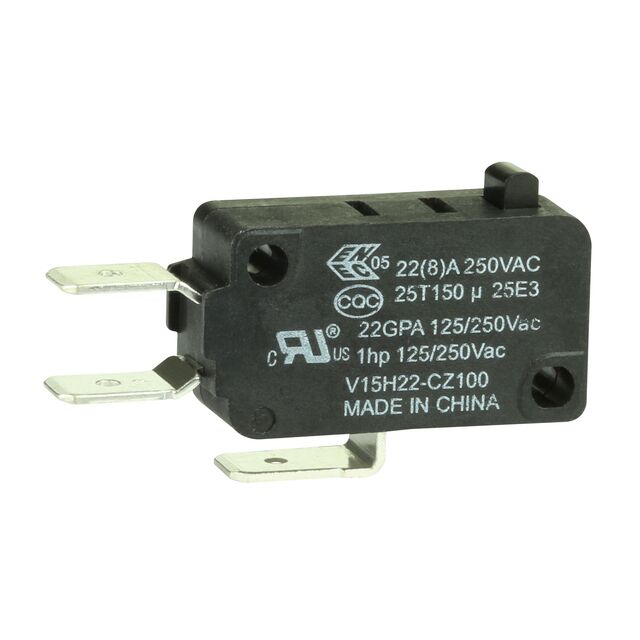

Honeywell Sensing and Productivity Solutions V15H22-CZ100	100 gf	125 V	Chassis Mount	150 °C	-25 °C	0.06 in	1.5 mm	0.5 mm	0.02 in	SPDT	1000000 Cycles	On-Mom	Quick Connect - 0.250" (6.3mm)	Round (Pin Plunger)	14.7 mm	0.579 in	22 A	0.03 "	0.76 mm	25 gf

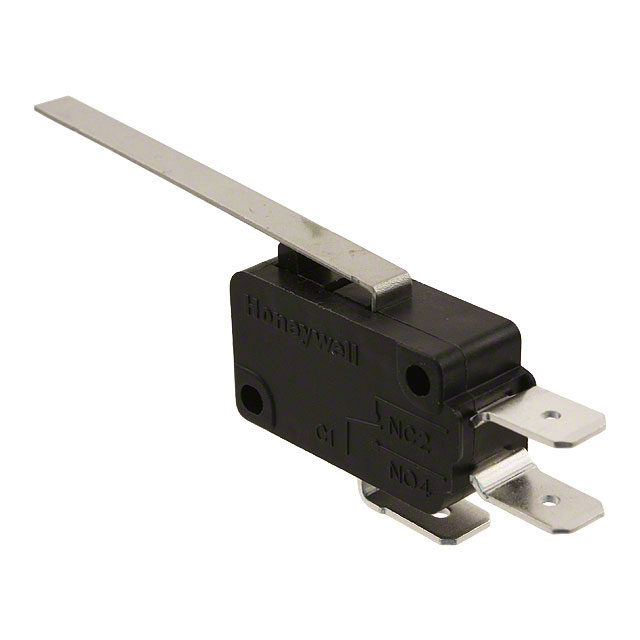

Honeywell Sensing and Productivity Solutions V15H22-CZ100A03-K	30 gf	250 V	Chassis Mount	150 °C	-25 °C	0.252 in	6.4 mm	2.4 mm	0.094 in	SPDT	5000000 Cycles	On-Mom	Quick Connect - 0.250" (6.3mm)	Lever Straight	15.3 mm	0.602 in	22 A	0.102 "	2.6 mm		10000 Cycles
Honeywell Sensing and Productivity Solutions V15H22-CZ300A05-K	350 gf	250 V	Chassis Mount	150 °C	-25 °C	0.063 in	1.6 mm	0.4 mm	0.016 in	SPDT	1000000 Cycles	On-Mom	Quick Connect - 0.250" (6.3mm)	Lever Roller	20.6 mm	0.812 in	22 A	0.03 "	0.76 mm	60 gf	10000 Cycles
Honeywell Sensing and Productivity Solutions V15H22-CZ300-K	300 gf	250 V	Chassis Mount	150 °C	-25 °C	0.063 in	1.6 mm	0.4 mm	0.016 in	SPDT	1000000 Cycles	On-Mom	Quick Connect - 0.250" (6.3mm)	Round (Pin Plunger)	14.7 mm	0.579 in	22 A	0.03 "	0.76 mm	75 gf	10000 Cycles

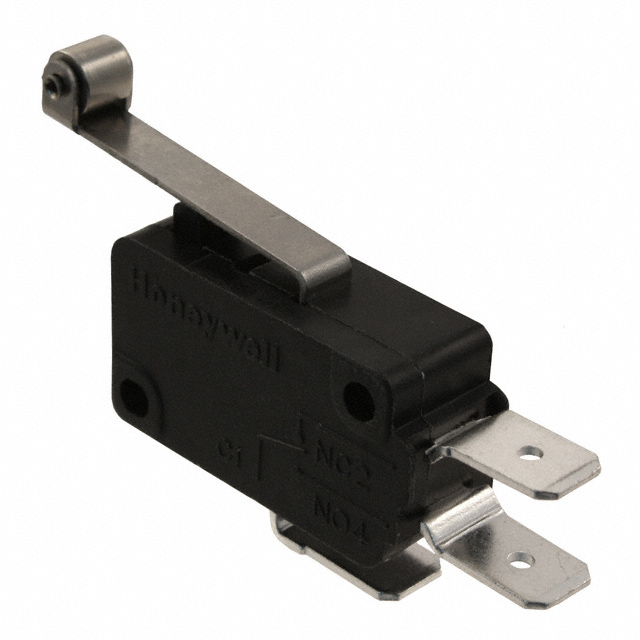

Honeywell Sensing and Productivity Solutions V15H22-CZ100A06-K	60 gf	250 V	Chassis Mount	150 °C	-25 °C	0.125 in	3.2 mm	1.2 mm	0.047 in	SPDT	5000000 Cycles	On-Mom	Quick Connect - 0.250" (6.3mm)	Lever Roller	20.6 mm	0.812 in	22 A	0.051 "	1.3 mm	10 gf	10000 Cycles
Honeywell Sensing and Productivity Solutions V15H22-CP200B03-K	32 gf	250 V	Chassis Mount	150 °C	-25 °C	0.472 "	12 mm	3.5 mm	0.138 in	SPST-NO	5000000 Cycles	Off-Mom	Quick Connect - 0.250" (6.3mm)	Lever Straight	15.3 mm	0.602 in	22 A	0.209 "	5.3 mm	8 gf	10000 Cycles

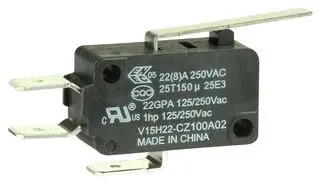

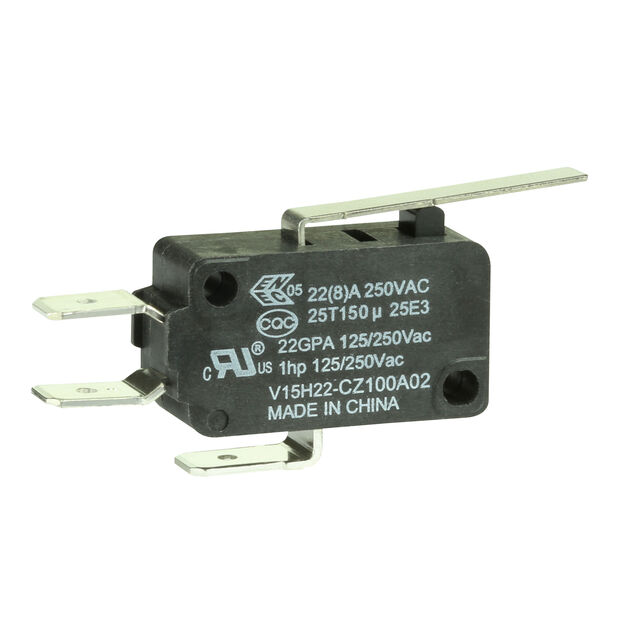

Honeywell Sensing and Productivity Solutions V15H22-CZ100A02	60 gf	125 V	Chassis Mount	150 °C	-25 °C	0.125 in	3.2 mm	1.2 mm	0.047 in	SPDT	1000000 Cycles	On-Mom	Quick Connect - 0.250" (6.3mm)	Lever Straight	15.3 mm	0.602 in	22 A	0.051 "	1.3 mm	10 gf
Honeywell Sensing and Productivity Solutions V15H22-CZ100-K	100 gf	250 V	Chassis Mount	150 °C	-25 °C	0.063 in	1.6 mm	0.4 mm	0.016 in	SPDT	5000000 Cycles	On-Mom	Quick Connect - 0.250" (6.3mm)	Round (Pin Plunger)	14.7 mm	0.579 in	22 A	0.03 "	0.76 mm	25 gf	10000 Cycles
