44AM1111 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

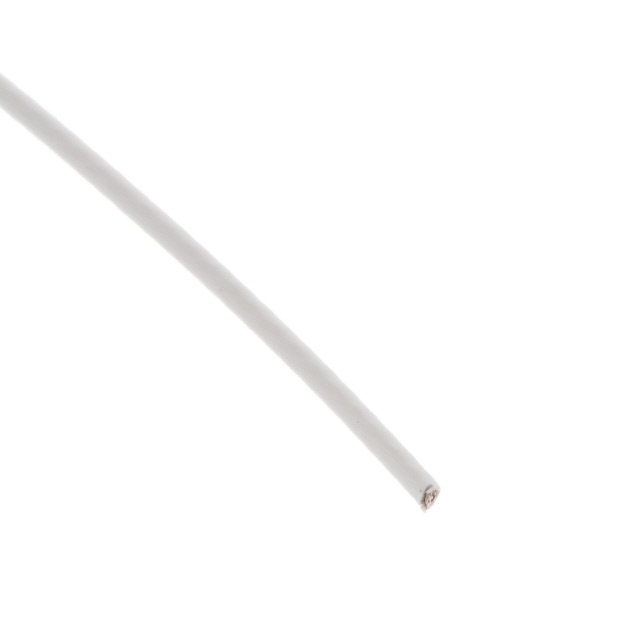

HOOK-UP DL STRND 16AWG WHT 25'

Part	Operating Temperature	Length [x]	Length [x]	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Cable Type	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Wire Gauge	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]
TE Connectivity Aerospace, Defense and Marine 44AM1111-16-9-9CS2275	150 °C	25 ft	7.62 m	Polyvinyl Fluoride (PVF)	19 Strands	29 AWG	0.005 in	0.13 mm	1 ft	300 mm	Hook-Up Dual Wall Shielded	600 V	2.67 mm	0.105 in	Copper Tinned	16 AWG
TE Connectivity Aerospace, Defense and Marine 44AM1111-16-9-9				Polyvinyl Fluoride (PVF)	19 Strands	29 AWG					Hook-Up	600 V	2.67 mm	0.105 in	Copper Tinned	16 AWG	MIL-C-27500 MIL-W-81044	-65 ░C	150 °C
TE Connectivity Aerospace, Defense and Marine 44AM1111-16-925-9-1KF				Polyvinyl Fluoride (PVF)	19 Strands	29 AWG					Hook-Up	600 V	2.67 mm	0.105 in	Copper Tinned	16 AWG	MIL-C-27500 MIL-W-81044	-65 ░C	150 °C
TE Connectivity Aerospace, Defense and Marine 44AM1111-24-9-9CS2275	150 °C	25 ft 50 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	Polyvinyl Fluoride (PVF)			0.005 in	0.13 mm	1 ft 5 '	1.52 m 15.24 m 300 mm	Hook-Up Dual Wall Shielded	600 V	1.8 mm	0.071 "	Copper Tinned	24 AWG
TE Connectivity Aerospace, Defense and Marine 44AM1111-24-9-9				Polyvinyl Fluoride (PVF)							Hook-Up	600 V	1.8 mm	0.071 "	Copper Tinned	24 AWG	MIL-C-27500 MIL-W-81044	-65 ░C	150 °C
TE Connectivity Aerospace, Defense and Marine 44AM1111-22-9-9				Polyvinyl Fluoride (PVF)		32 AWG					Hook-Up	600 V			Copper Tinned	20 AWG	MIL-C-27500 MIL-W-81044	-65 ░C	150 °C	19
