EVQ-PF Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

SWITCH TACTILE SPST-NO 0.02A 15V

Part	Actuator Orientation	Circuit	Outline [x]	Outline [y]	Illumination	Switch Function	Mounting Type	Contact Rating @ Voltage [x]	Switch Travel	Actuator Length, Right Angle [x]	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Actuator Type	Mechanical Life	Actuator Length, Right Angle

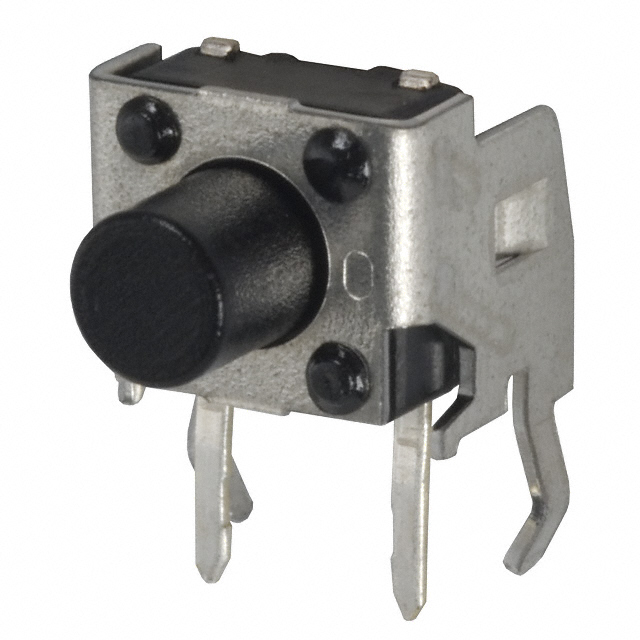

Panasonic Industrial Automation Sales EVQ-PF306K	Side Actuated	SPST-NO	7.5 mm	7.1 mm	Non-Illuminated	Off-Mom	Through Hole Right Angle	0.02 A 15 VDC	0.25 mm	5.85 mm	PC Pin	-20 C	70 °C	260 gf	Standard

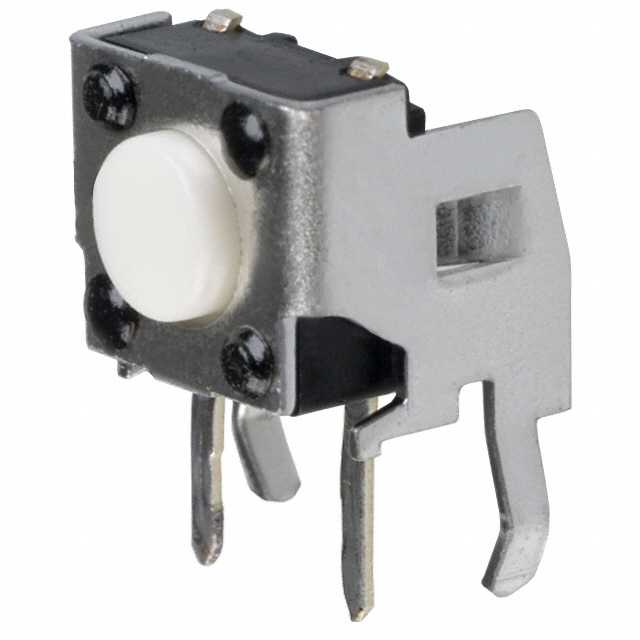

Panasonic Industrial Automation Sales EVQ-PF203M	Side Actuated	SPST-NO	7.5 mm	7.1 mm	Non-Illuminated	Off-Mom	Through Hole Right Angle	0.02 A 15 VDC	0.25 mm		PC Pin	-20 C	70 °C		Standard	100000 Cycles	3.15 mm

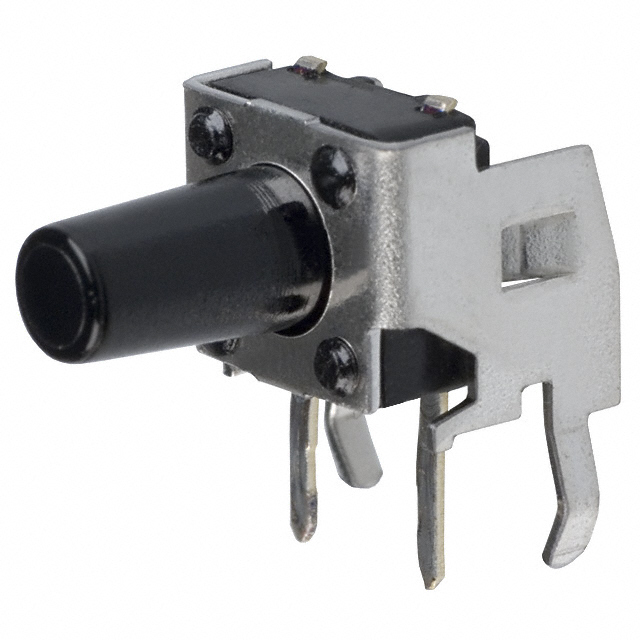

Panasonic Industrial Automation Sales EVQ-PF008K	Side Actuated	SPST-NO	7.5 mm	7.1 mm	Non-Illuminated	Off-Mom	Through Hole Right Angle	0.02 A 15 VDC	0.25 mm		PC Pin	-20 C	70 °C	100 gf	Standard	100000 Cycles	8.35 mm
Panasonic Industrial Automation Sales EVQ-PF108K	Side Actuated	SPST-NO	7.5 mm	7.1 mm	Non-Illuminated	Off-Mom	Through Hole Right Angle	0.02 A 15 VDC	0.25 mm		PC Pin	-20 C	70 °C	130 gf	Standard	100000 Cycles	8.35 mm
Panasonic Industrial Automation Sales EVQ-PF804B	Side Actuated	SPST-NO	7.5 mm	7.1 mm	Non-Illuminated	Off-Mom	Through Hole Right Angle	0.02 A 15 VDC	0.25 mm		PC Pin	-20 C	70 °C		Standard		3.85 mm
Panasonic Industrial Automation Sales EVQ-PF103M	Side Actuated	SPST-NO	7.5 mm	7.1 mm	Non-Illuminated	Off-Mom	Through Hole Right Angle	0.02 A 15 VDC	0.25 mm		PC Pin	-20 C	70 °C	130 gf	Standard	100000 Cycles	3.15 mm
Panasonic Industrial Automation Sales EVQ-PF208K	Side Actuated	SPST-NO	7.5 mm	7.1 mm	Non-Illuminated	Off-Mom	Through Hole Right Angle	0.02 A 15 VDC	0.25 mm		PC Pin	-20 C	70 °C		Standard	100000 Cycles	8.35 mm

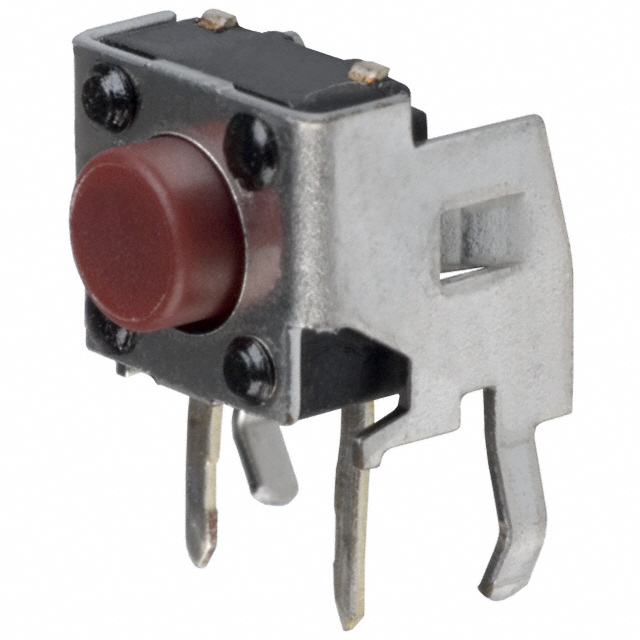

Panasonic Industrial Automation Sales EVQ-PF104R	Side Actuated	SPST-NO	7.5 mm	7.1 mm	Non-Illuminated	Off-Mom	Through Hole Right Angle	0.02 A 15 VDC	0.25 mm		PC Pin	-20 C	70 °C	130 gf	Standard	100000 Cycles	3.85 mm
Panasonic Industrial Automation Sales EVQ-PF303M	Side Actuated	SPST-NO	7.5 mm	7.1 mm	Non-Illuminated	Off-Mom	Through Hole Right Angle	0.02 A 15 VDC	0.25 mm		PC Pin	-20 C	70 °C	260 gf	Standard		3.15 mm
