178293 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER R/A 3POS 3.81MM

Part	Voltage Rating	Mounting Type	Number of Positions Loaded	Material Flammability Rating	Shrouding	Number of Rows	Contact Finish - Post	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Style	Contact Material	Insulation Material	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Insulation Color	Contact Finish - Mating	Contact Type	Fastening Type	Termination

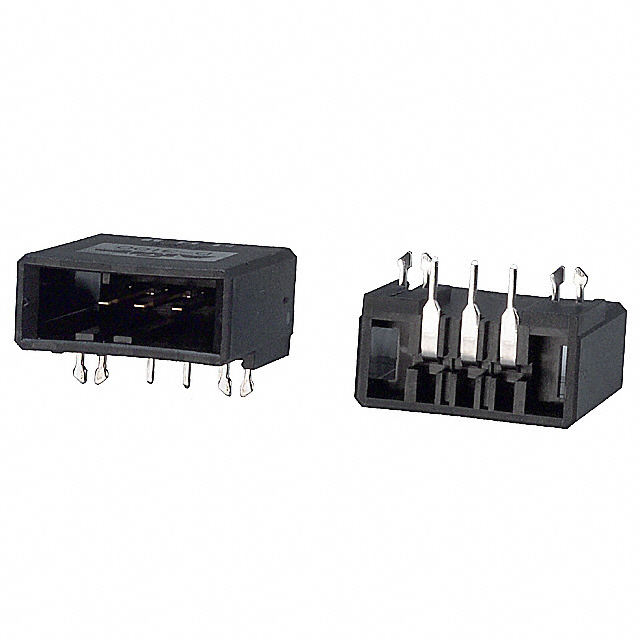

TE Connectivity Raychem Cable Protection 2-178293-3	250 VDC	Through Hole Right Angle	All	UL94 V-0	Shrouded - 4 Wall	1	Tin	Header	30 Áin	0.76 Ám	General Purpose Industrial	0.15 in	3.81 mm	Rectangular	Board to Board Cable	Copper Alloy	Glass Filled Polyester Thermoplastic	3.81 mm	0.15 in	105 ░C	-55 °C	9.35 mm	0.368 in	Black	Gold	Tab	Detent Lock	Solder

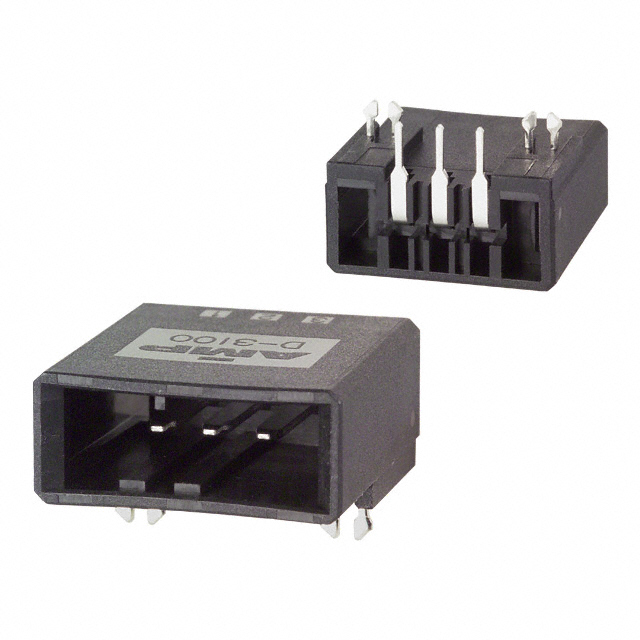

TE Connectivity Raychem Cable Protection 2-178293-5	250 VDC	Through Hole Right Angle	All	UL94 V-0	Shrouded - 4 Wall	1	Tin	Header	78.7 µin	2 µm	General Purpose Industrial	0.15 in	3.81 mm	Rectangular	Board to Board Cable	Copper Alloy	Glass Filled Polyester Thermoplastic	3.81 mm	0.15 in	105 ░C	-55 °C	9.35 mm	0.368 in	Black		Tab	Detent Lock	Solder

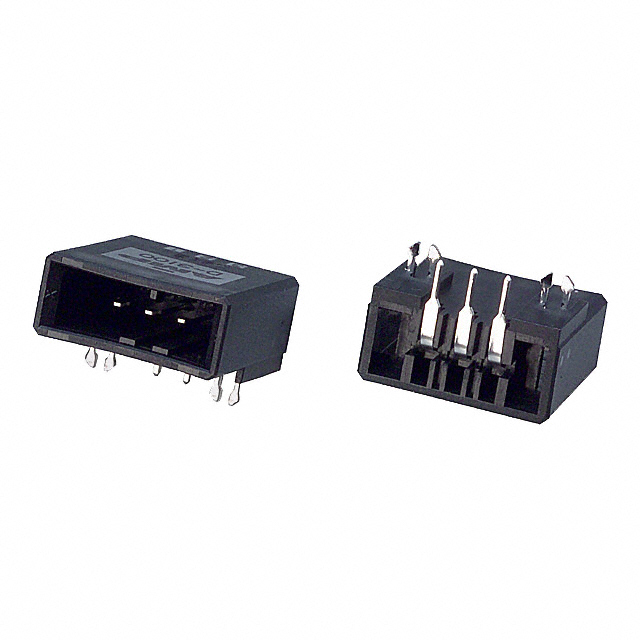

TE Connectivity Raychem Cable Protection 1-178293-5	250 VDC	Through Hole Right Angle	All	UL94 V-0	Shrouded - 4 Wall	1	Tin	Header	78.7 µin	2 µm	General Purpose Industrial	0.15 in	3.81 mm	Rectangular	Board to Board Cable	Copper Alloy	Glass Filled Polyester Thermoplastic	3.81 mm	0.15 in	105 ░C	-55 °C	9.35 mm	0.368 in	Black		Tab	Detent Lock	Solder
TE Connectivity Raychem Cable Protection 2-178293-2	250 VDC	Through Hole Right Angle	All	UL94 V-0	Shrouded - 4 Wall	1	Tin	Header	15 µin	0.38 µm	General Purpose Industrial	0.15 in	3.81 mm	Rectangular	Board to Board Cable	Copper Alloy	Glass Filled Polyester Thermoplastic	3.81 mm	0.15 in	105 ░C	-55 °C	9.35 mm	0.368 in	Black	Gold PdNi +Gold	Tab	Detent Lock	Solder
TE Connectivity Raychem Cable Protection 1-178293-3	250 VDC	Through Hole Right Angle	All	UL94 V-0	Shrouded - 4 Wall	1	Tin	Header	30 Áin	0.76 Ám	General Purpose Industrial	0.15 in	3.81 mm	Rectangular	Board to Board Cable	Copper Alloy	Glass Filled Polyester Thermoplastic	3.81 mm	0.15 in	105 ░C	-55 °C	9.35 mm	0.368 in	Black	Gold	Tab	Detent Lock	Solder
