XC5D Series

Catalog

CONN DIN RCPT 96POS PCB GOLD

Part	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Material - Insulation	Contact Finish	Number of Positions	Number of Positions Loaded	Number of Rows [custom]	Mounting Type	Style	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Termination
Omron Electronics Inc-EMC Div XC5D-9631-0	UL94 V-0	-55 C	125 °C	2 A	Polybutylene Terephthalate (PBT) Glass Filled	Gold	96	All	3	Through Hole	C	Receptacle Female Sockets	16 µin	0.41 µm	0.1 "	2.54 mm	Solder
Omron Electronics Inc-EMC Div XC5D-3221	UL94 V-0	-55 C	125 °C	2 A	Polybutylene Terephthalate (PBT) Glass Filled				3		C	Receptacle Female Sockets			0.1 "	2.54 mm

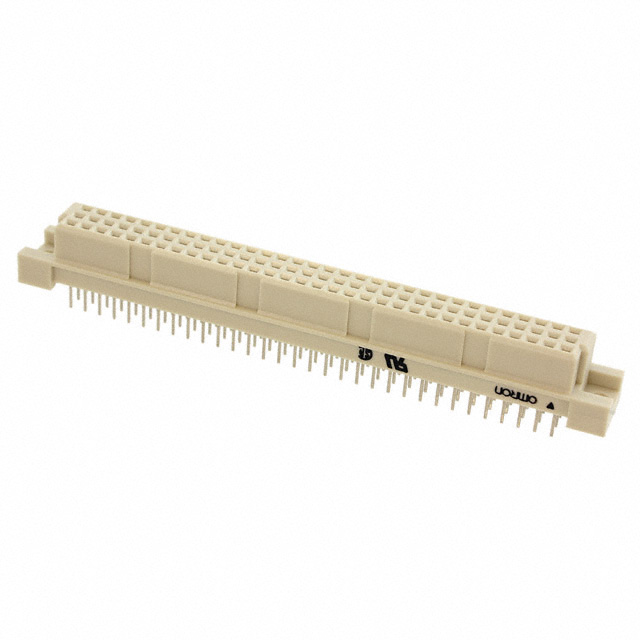

Omron Electronics Inc-EMC Div XC5D-9621	UL94 V-0	-55 C	125 °C	2 A	Polybutylene Terephthalate (PBT) Glass Filled	Gold	96	All	3	Through Hole	C	Receptacle Female Sockets	16 µin	0.41 µm	0.1 "	2.54 mm	Solder
