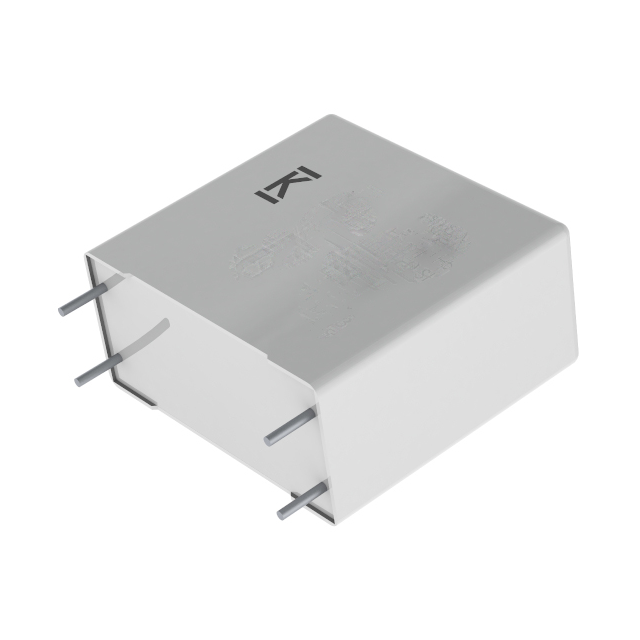

C4AF9B Series

Manufacturer: KEMET

Catalog

CAP FILM 17UF 10% 310VAC RADIAL

Part	Package / Case	Voltage Rating - AC	ESR (Equivalent Series Resistance)	Dielectric Material	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Lead Spacing	Lead Spacing	Mounting Type	Termination	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Size / Dimension [x]	Size / Dimension [y]
KEMET C4AF9BW5170A3OK	Radial - 4 Leads	310 V	1.5 mOhm	Polypropylene (PP) Metallized	AEC-Q200	50.2 mm	1.976 "	17 µF	37.5 mm	1.476 in	Through Hole	PC Pins	10 %	-55 C	105 ░C	42 mm	1.654 in	35 mm	1.378 in	Automotive
KEMET C4AF9BW4680A3FK	Radial - 4 Leads	310 V	3.3 mOhms	Polypropylene (PP) Metallized	AEC-Q200			6.8 µF	37.5 mm	1.476 in	Through Hole	PC Pins	10 %	-55 C	105 ░C	42 mm	1.654 in	20 mm	0.787 in	Automotive	40.2 mm	1.583 in
KEMET C4AF9BW4680T3FK	Radial - 4 Leads	310 V	5.8 mOhms	Polypropylene (PP) Metallized	AEC-Q200			6.8 µF	37.5 mm	1.476 in	Through Hole	PC Pins	10 %	-55 C	105 ░C	42 mm	1.654 in	20 mm	0.787 in	Automotive	40.2 mm	1.583 in
KEMET C4AF9BW5100A3JK	Radial - 4 Leads	310 V	2.3 mOhms	Polypropylene (PP) Metallized	AEC-Q200			10 µF	37.5 mm	1.476 in	Through Hole	PC Pins	10 %	-55 C	105 ░C	42 mm	1.654 in	28 mm	1.102 "	Automotive	37.2 mm	1.465 in
KEMET C4AF9BU4150A1XK	Radial	310 V	9.5 mOhms	Polypropylene (PP) Metallized	AEC-Q200			1500 nF	27.5 mm	1.083 in	Through Hole	PC Pins	10 %	-55 C	105 ░C	31.5 mm	1.24 in	13 mm	0.512 "	Automotive	25.2 mm	0.992 in
KEMET C4AF9BU4100A1WK	Radial	310 V	13.4 mOhms	Polypropylene (PP) Metallized	AEC-Q200		0.795 in	1 µF	27.5 mm	1.083 in	Through Hole	PC Pins	10 %	-55 C	105 ░C					Automotive			20.2 mm
KEMET C4AF9BW5220A3NK	Radial - 4 Leads	310 V	2.1 mOhms	Polypropylene (PP) Metallized	AEC-Q200			22 µF	52.5 mm	2.067 in	Through Hole	PC Pins	10 %	-55 C	105 ░C	2.264 in		1.378 in		Automotive				57.5 mm	35 mm
