193132 Series
Manufacturer: NI
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

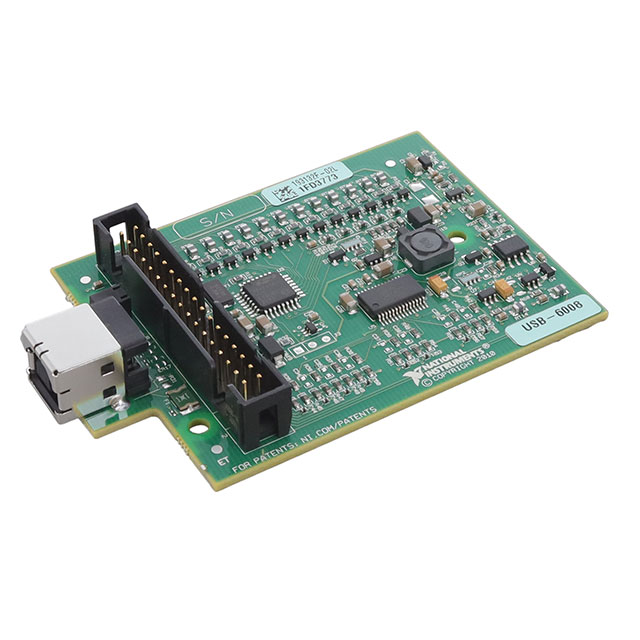

DAQ DEVICE MULTIFUNC I/O USB 2.0
| Part | Front Connection | Sampling Rate (Per Second) | Function | Output Voltage Range (Min) | Output Voltage Range (Max) | Type | Counter/Timers | Bus Connection | Input Types | Analog Input Subtypes | Number of Analog Inputs (Single-Ended) | Number of Analog Inputs | Number of Analog Inputs (Differential) | Number of Inputs | Number of Digital Inputs | Output Resolution | Analog Outputs | Output Type | Number of Outputs | Digital Outputs | Bidirectional Channels | Input Voltage (Max) | Input Voltage (Min) | Input Resolution |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Screw Terminal | 10 kHz | Multifunction I/O | 0 V | 5 V | DAQ Device | 1 | USB 2.0 | Analog Digital | Differential Single-Ended | 0 | 8 | 4 | 16 | 8 | 12 Bits | 2 | Analog Digital | 10 | 8 | 8 | 10 VDC | -10 V | 12 Bits |
