UB215KK Series

Catalog

SWITCH PUSHBUTTON SPDT 5A 125V

Part	Mechanical Life	Electrical Life	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Type	Actuator Marking	Voltage Rating - DC	Circuit	Illumination Voltage (Nominal) [Max]	Illumination Voltage (Nominal) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Rating - AC	Actuator Type	Switch Function	Termination Style	Mounting Type	Color - Actuator/Cap	Illumination Type, Color	Features	Illumination Voltage (Nominal)

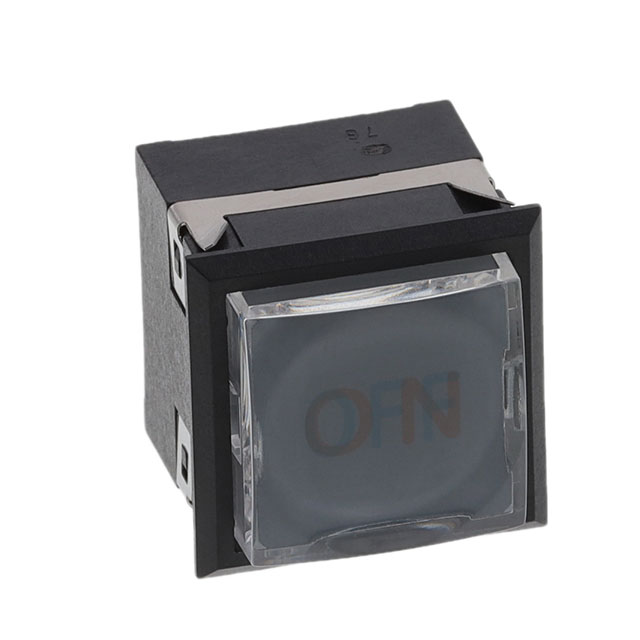

NKK Switches UB215KKW016DG-4JDG11	1000000 Cycles	10000 Cycles	17.4 mm	17.4 mm	Illuminated Standard	ON/OFF	30 V	SPDT	2.8 VDC	2 VDC	50 °C	-25 °C	5 A	125 V	Alternating Legend Button Square	On-Mom	Solder Lug	Panel Mount Snap-In	Clear	Amber Blue LED

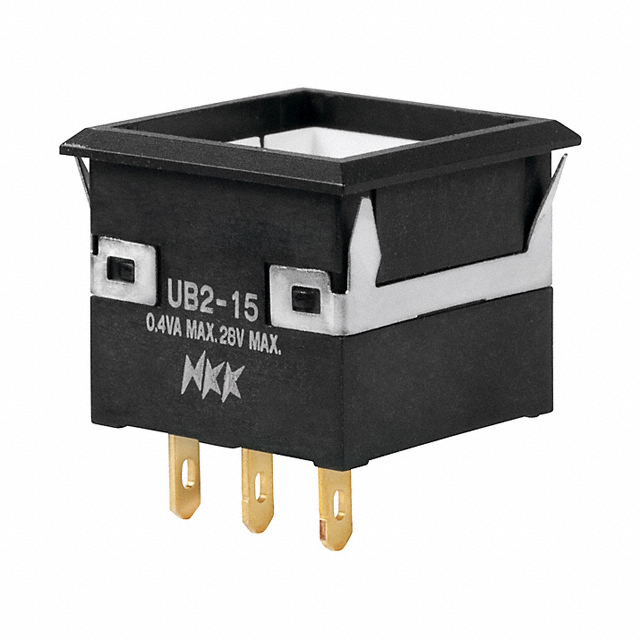

NKK Switches UB215KKG01N	1000000 Cycles	200000 Cycles	17.4 mm	17.4 mm	Standard	No Marking	28 V	SPDT			70 °C	-25 °C	0.4 VA	28 V	Plunger for Cap	On-Mom	Solder Lug	Panel Mount Snap-In			Pulse 300 ms

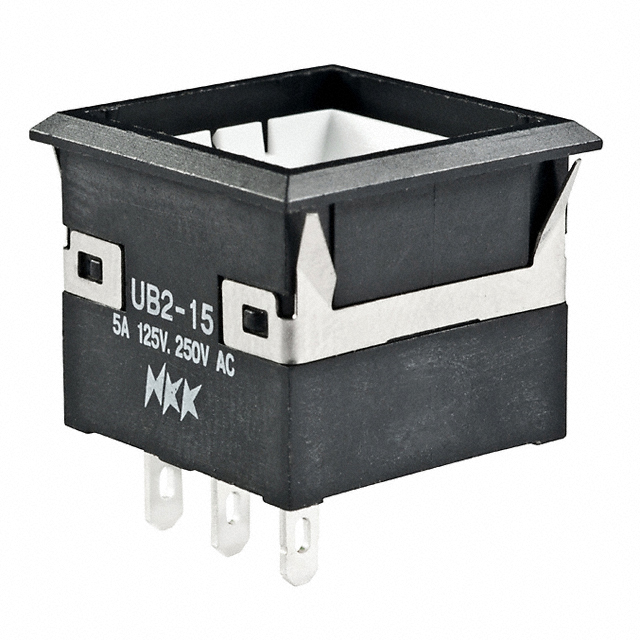

NKK Switches UB215KKW01N	1000000 Cycles	10000 Cycles	17.4 mm	17.4 mm	Standard	No Marking	30 V	SPDT			70 °C	-25 °C	5 A	125 V	Plunger for Cap	On-Mom	Solder Lug	Panel Mount Snap-In			RTV Adhesive Sealant on Terminals

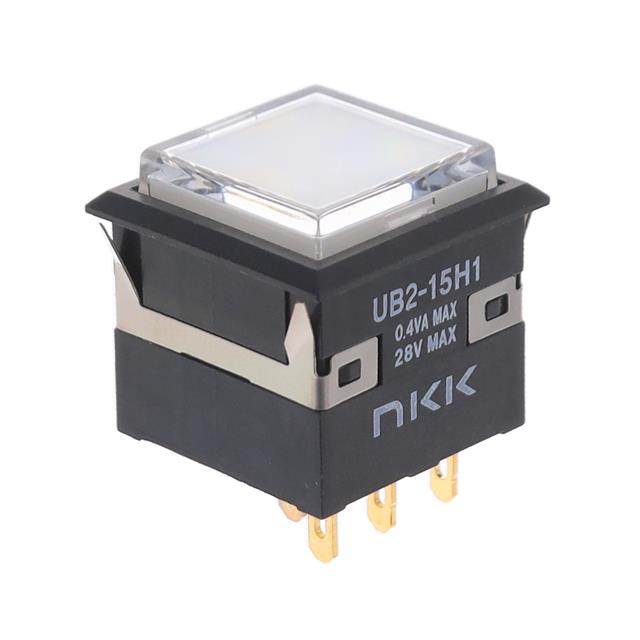

NKK Switches UB215KKG015C-3JB	1000000 Cycles	200000 Cycles	17.4 mm	17.4 mm	Illuminated Standard	No Marking	28 V	SPDT			50 °C	-25 °C	0.4 VA	28 V	Button Square	On-Mom	Solder Lug	Panel Mount Snap-In	Clear	LED Red	Process Sealed	1.85 VDC
NKK Switches UB215KKG016CF-5JCF11	1000000 Cycles	200000 Cycles	17.4 mm	17.4 mm	Illuminated Standard	ON/OFF	28 V	SPDT			50 °C	-25 °C	0.4 VA	28 V	Alternating Legend Button Square	On-Mom	Solder Lug	Panel Mount Snap-In	Clear	Green/Red LED		2.1 VDC 3.5 VDC
NKK Switches UB215KKG015C-3JF	1000000 Cycles	200000 Cycles	17.4 mm	17.4 mm	Illuminated Standard	No Marking	28 V	SPDT			50 °C	-25 °C	0.4 VA	28 V	Button Square	On-Mom	Solder Lug	Panel Mount Snap-In	Clear	LED Red	Process Sealed	1.85 VDC
NKK Switches UB215KKG015D	1000000 Cycles	200000 Cycles	17.4 mm	17.4 mm	Illuminated Standard	No Marking	28 V	SPDT			50 °C	-25 °C	0.4 VA	28 V	Plunger for Cap	On-Mom	Solder Lug	Panel Mount Snap-In		Amber LED	Process Sealed	2 VDC

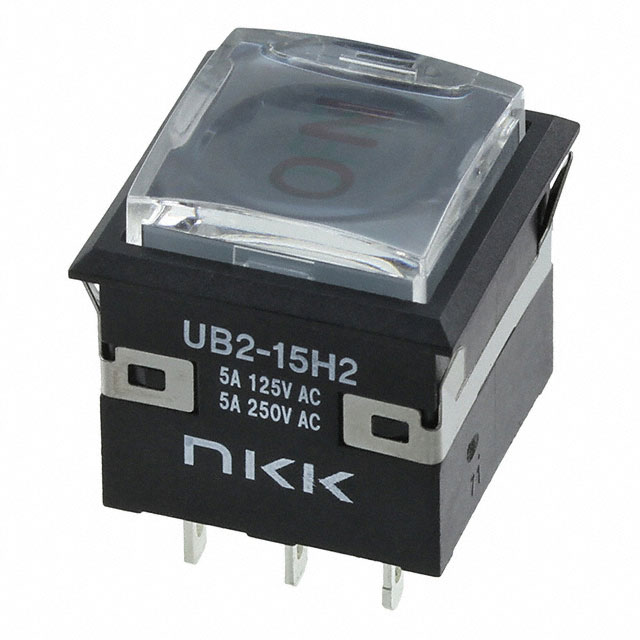

NKK Switches UB215KKW016CF-4JCF11	1000000 Cycles	10000 Cycles	17.4 mm	17.4 mm	Illuminated Standard	ON/OFF	30 V	SPDT			50 °C	-25 °C	5 A	125 V	Alternating Legend Button Square	On-Mom	Solder Lug	Panel Mount Snap-In	Clear	Green/Red LED		2.1 VDC 3.5 VDC
NKK Switches UB215KKW016F-1JF	1000000 Cycles	10000 Cycles	17.4 mm	17.4 mm	Illuminated Standard	No Marking	30 V	SPDT			50 °C	-25 °C	5 A	125 V	Button Square	On-Mom	Solder Lug	Panel Mount Snap-In	Clear	Green LED	RTV Adhesive Sealant on Terminals	3.5 VDC

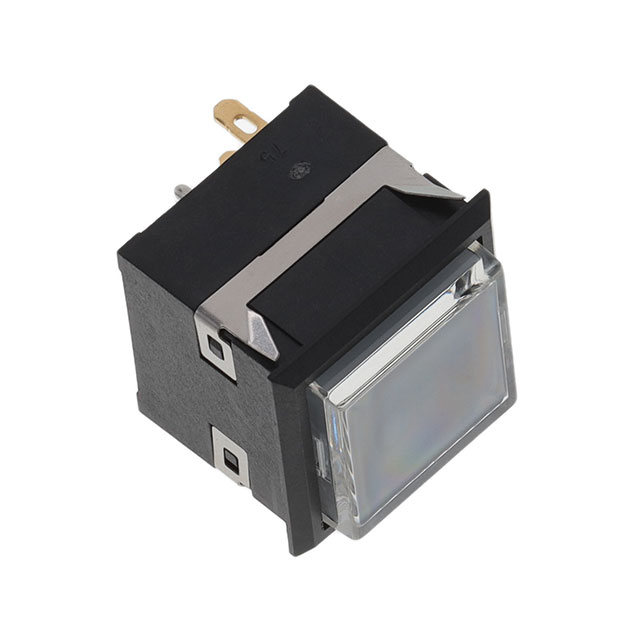

NKK Switches UB215KKG016DG-5JDG11	1000000 Cycles	200000 Cycles	17.4 mm	17.4 mm	Illuminated Standard	ON/OFF	28 V	SPDT	2.8 VDC	2 VDC	50 °C	-25 °C	0.4 VA	28 V	Alternating Legend Button Square	On-Mom	Solder Lug	Panel Mount Snap-In	Clear	Amber Blue LED
