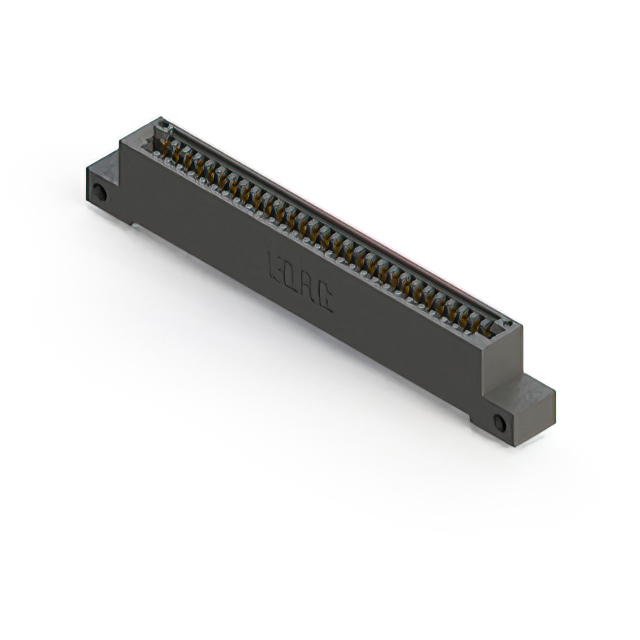

395-029 Series
Manufacturer: EDAC Inc.
Beta
⌘K
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
| Part | Termination Rows | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Termination | Card Type | Number of Rows | Card Thickness [Max] | Card Thickness [Min] | Number of Positions/Bay/Row | Read Out | Contact Material | Gender | Color | Mounting Type | Number of Positions | Contact Type | Pitch | Pitch | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Solder | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 29 | Single | Copper Alloy | Female | Black | Through Hole | 29 | Cantilever | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | 0.128 " | 3.25 mm | Solder | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 29 | Single | Copper Alloy | Female | Black | Right Angle Through Hole | 29 | Cantilever | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Wire Wrap | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 29 | Single | Copper Alloy | Female | Black | Through Hole | 29 | Cantilever | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Solder | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 29 | Single | Copper Alloy | Female | Black | Through Hole | 29 | Cantilever | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Wire Wrap | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 29 | Single | Copper Alloy | Female | Black | Through Hole | 29 | Cantilever | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | M3 Threaded Insert Top Mount Opening | Solder | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 29 | Single | Copper Alloy | Female | Black | Through Hole | 29 | Cantilever | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Wire Wrap | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 29 | Single | Copper Alloy | Female | Black | Through Hole | 29 | Cantilever | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | |

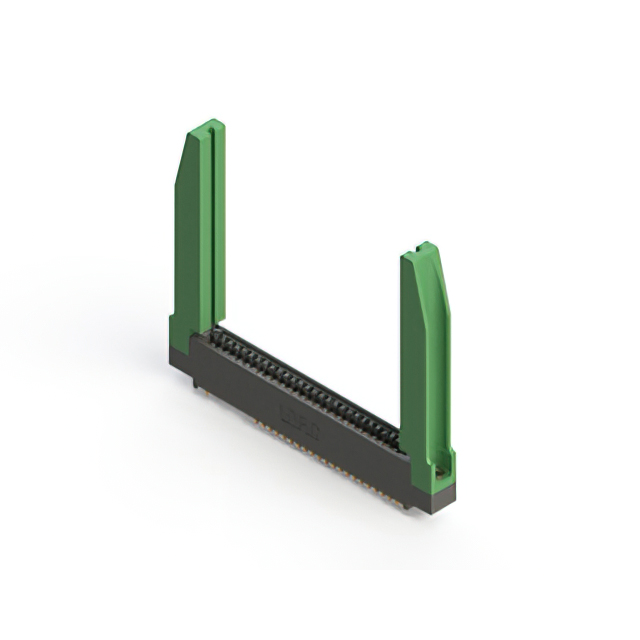

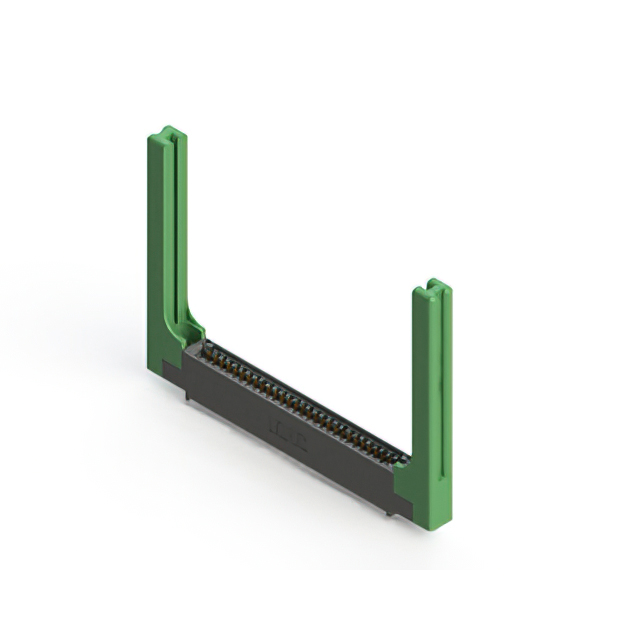

 EDAC Inc. | 1 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | Solder | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 29 | Single | Copper Alloy | Female | Black | Right Angle Through Hole | 29 | Cantilever | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | Solder | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 29 | Single | Copper Alloy | Female | Black | Right Angle Through Hole | 29 | Cantilever | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | M3 Threaded Insert Top Mount Opening | Wire Wrap | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 29 | Single | Copper Alloy | Female | Black | Through Hole | 29 | Cantilever | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C |
