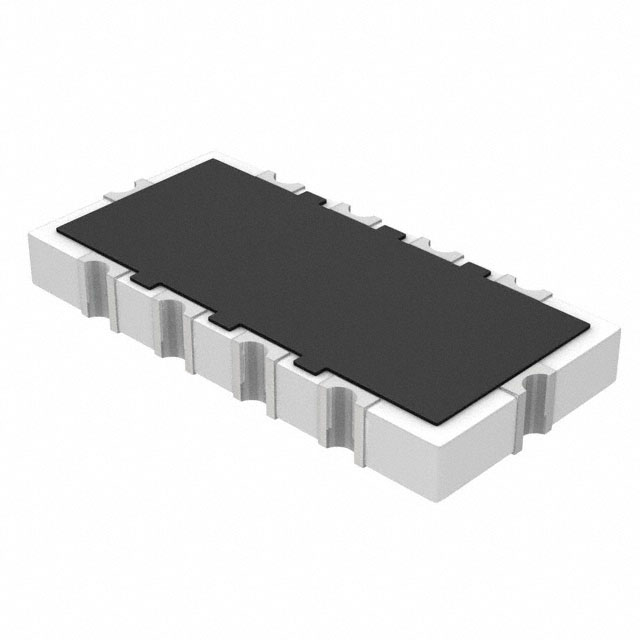

EZA-NT Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
FILTER RC(PI) 470 OHM/470PF SMD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Height [z] | Height [z] | Voltage - Rated | Filter Order | Applications | Values | Mounting Type | Type | Package / Case | Package / Case | Package / Case | Number of Channels | Technology | Resistance - Channel (Ohms) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | ESD Protection | Resistance - Channel (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | -25 °C | 85 °C | 0.039 in | 1 mm | 50 VDC | 1st | Data Lines for Mobile Devices | 470 pF 470 Ohms | Surface Mount | Low Pass | Concave | 2512 | 6432 Metric | 4 | RC (Pi) | 470 Ohms | 3.1 mm | 6.4 mm | 0.252 in | 0.122 in | ||
Panasonic Industrial Automation Sales | -25 °C | 85 °C | 0.039 in | 1 mm | 50 VDC | 1st | Data Lines for Mobile Devices | 1 kOhms 1000 pF | Surface Mount | Low Pass | Concave | 2512 | 6432 Metric | 4 | RC (Pi) | 3.1 mm | 6.4 mm | 0.252 in | 0.122 in | 1k | ||
Panasonic Industrial Automation Sales | -25 °C | 85 °C | 0.039 in | 1 mm | 50 VDC | 1st | Data Lines for Mobile Devices | 47 Ohms 470 pF | Surface Mount | Low Pass | Concave | 2512 | 6432 Metric | 4 | RC (Pi) | 47 Ohms | 3.1 mm | 6.4 mm | 0.252 in | 0.122 in | ||
Panasonic Industrial Automation Sales | -25 °C | 85 °C | 0.039 in | 1 mm | 50 VDC | 1st | Data Lines for Mobile Devices | 1 kOhms 470 pF | Surface Mount | Low Pass | Concave | 2512 | 6432 Metric | 4 | RC (Pi) | 3.1 mm | 6.4 mm | 0.252 in | 0.122 in | 1k | ||
Panasonic Industrial Automation Sales | -25 °C | 85 °C | 0.039 in | 1 mm | 50 VDC | 1st | Data Lines for Mobile Devices | 22 Ohms 1000 pF | Surface Mount | Low Pass | Concave | 2512 | 6432 Metric | 4 | RC (Pi) | 22 Ohms | 3.1 mm | 6.4 mm | 0.252 in | 0.122 in | ||
Panasonic Industrial Automation Sales | -25 °C | 85 °C | 0.039 in | 1 mm | 50 VDC | 1st | Data Lines for Mobile Devices | 100 Ohms 220 pF | Surface Mount | Low Pass | Concave | 2512 | 6432 Metric | 4 | RC (Pi) | 100 Ohms | 3.1 mm | 6.4 mm | 0.252 in | 0.122 in | ||
Panasonic Industrial Automation Sales | -25 °C | 85 °C | 0.039 in | 1 mm | 50 VDC | 1st | Data Lines for Mobile Devices | 22 Ohms 220 pF | Surface Mount | Low Pass | Concave | 2512 | 6432 Metric | 4 | RC (Pi) | 22 Ohms | 3.1 mm | 6.4 mm | 0.252 in | 0.122 in | ||
Panasonic Industrial Automation Sales | -25 °C | 85 °C | 0.039 in | 1 mm | 50 VDC | 1st | Data Lines for Mobile Devices | Surface Mount | Low Pass | Concave | 2512 | 6432 Metric | 4 | RC (Pi) | 47 Ohms | 3.1 mm | 6.4 mm | 0.252 in | 0.122 in |
