89842 Series
Manufacturer: Belden Inc.
Beta
⌘K

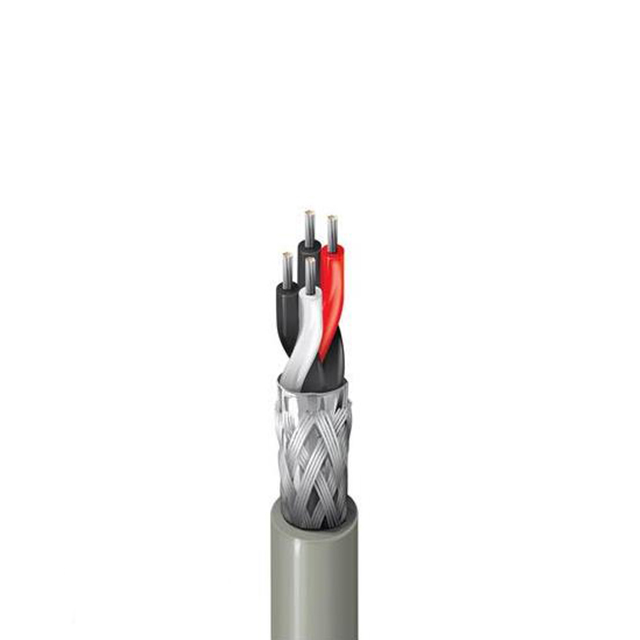

MULTI-PAIR 4COND 24AWG RED
| Part | Shield Coverage | Shield Material | Length | Length | Wire Gauge | Cable Type | Jacket Color | Number of Conductors | Ratings | Conductor Material | Jacket (Insulation) Material | Voltage | Conductor Insulation | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 90 % 100 % | Aluminum Copper Tinned | 152.4 m | 500 ft | 24 AWG | Multi-Pair | Red | 4 | UL Style CMP | Copper Tinned | Fluorinated Ethylene-Propylene (FEP) Plenum | 300 VDC | Foam Fluorinated Ethylene-Propylene (FFEP) | Braid Foil | 0.014 in | 0.356 mm | Computer | Drain Wire | 0.305 in | 7.75 mm | 7 | 32 AWG | 150 °C | -70 °C |
