PTH05020 Series

Catalog

CONV DC/DC 5VIN ADJ OUT 22A SMD

Part	Voltage - Input (Max) [Max]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Mounting Type	Package / Case	Efficiency	Type	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Power (Watts)	Applications

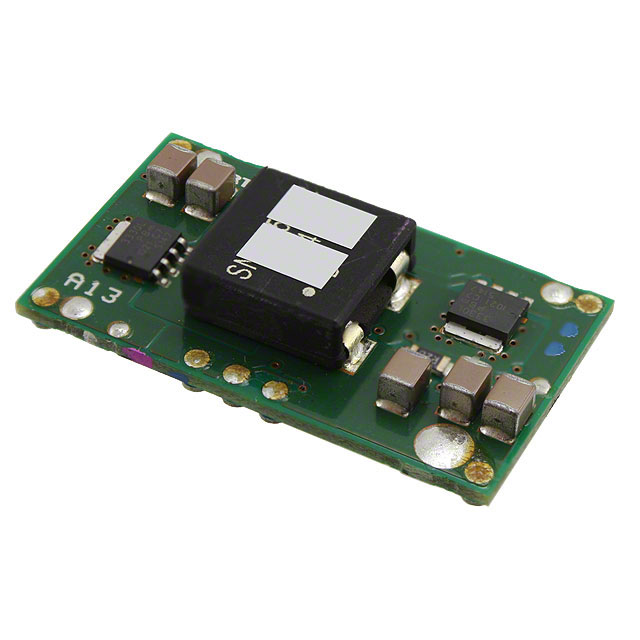

ARTESYN / Advanced Energy PTH05020WAZ	5.5 V	1	85 °C	-40 C	UVLO	38.1 mm	1.5 in	0.35 in	0.87 in	8.9 mm	22.1 mm	Surface Mount	10-SMD Module	95 %	Non-Isolated PoL Module	22 A	4.5 V	3.6 V	0.8 V
ARTESYN / Advanced Energy PTH05020WAZT	5.5 V	1	85 °C	-40 C	OTP Remote On/Off SCP UVLO	38.1 mm	1.5 in	0.35 in	0.87 in	9 mm	22.1 mm	Surface Mount	10-SMD Module	96 %	Non-Isolated PoL Module	22 A	4.5 V	3.6 V	0.8 V	79 W	ITE (Commercial)
