1.14.100 Series
Manufacturer: RAFI USA
Beta
⌘K

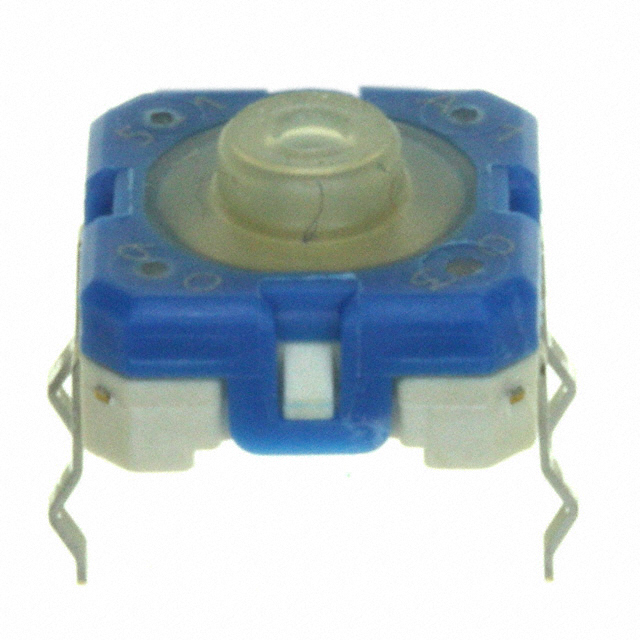

TACTILE SWITCH, SPST, 0.1A, 35V, THT
| Part | Outline [y] | Outline [x] | Switch Function | Actuator Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Illumination | Actuator Type | Termination Style | Contact Rating @ Voltage | Operating Force | Mounting Type | Circuit | Actuator Height off PCB, Vertical [z] | Switch Travel | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RAFI USA | 8.4 mm | 8.4 mm | Off-Mom | Top Actuated | 80 °C | -40 C | Non-Illuminated | Standard | PC Pin | 0.1 A 42 VAC/DC | 330 gf | Through Hole | SPST-NO | 4.9 mm | ||
 RAFI USA | 8.4 mm | 8.4 mm | Off-Mom | Top Actuated | 90 °C | -40 C | Non-Illuminated | Standard | PC Pin | 0.1 A 35 VAC/DC | 489 gf | Through Hole | SPST-NO | 4.9 mm | 0.42 mm | 1000000 Cycles |
 RAFI USA | 8.4 mm | 8.4 mm | Off-Mom | Top Actuated | 80 °C | -40 C | Non-Illuminated | Standard | PC Pin | 0.1 A 42 VAC/DC | 330 gf | Through Hole | SPST-NO | 4.9 mm | ||
 RAFI USA | 8.4 mm | 8.4 mm | Off-Mom | Top Actuated | 90 °C | -40 C | Non-Illuminated | Standard | Gull Wing | 0.1 A 35 VAC/DC | 489 gf | Surface Mount | SPST-NO | 5 mm | 0.42 mm | 1000000 Cycles |
 RAFI USA | 8.4 mm | 8.4 mm | Off-Mom | Top Actuated | 80 °C | -40 C | Non-Illuminated | Standard | Gull Wing | 0.1 A 42 VAC/DC | 330 gf | Surface Mount | SPST-NO | 5 mm | 0.34 mm | 1000000 Cycles |
RAFI USA | 8.4 mm | 8.4 mm | Off-Mom | Top Actuated | 80 °C | -40 C | Non-Illuminated | Standard | PC Pin | 0.1 A 42 VAC/DC | 330 gf | Through Hole | SPST-NO | 4.9 mm | 0.34 mm | 1000000 Cycles |
RAFI USA | 8.4 mm | 8.4 mm | Off-Mom | Top Actuated | 90 °C | -40 C | Non-Illuminated | Standard | Gull Wing | 0.1 A 35 VAC/DC | 489 gf | Surface Mount | SPST-NO | 5 mm | ||
RAFI USA | 8.4 mm | 8.4 mm | Off-Mom | Top Actuated | 80 °C | -40 C | Non-Illuminated | Standard | Gull Wing | 0.1 A 42 VAC/DC | 330 gf | Surface Mount | SPST-NO | 5 mm | ||
RAFI USA | 8.4 mm | 8.4 mm | Off-Mom | Top Actuated | 80 °C | -40 C | Non-Illuminated | Standard | PC Pin | 0.1 A 42 VAC/DC | 330 gf | Through Hole | SPST-NO | 4.9 mm | 0.34 mm | 1000000 Cycles |
RAFI USA | 8.4 mm | 8.4 mm | Off-Mom | Top Actuated | 90 °C | -40 C | Non-Illuminated | Standard | PC Pin | 0.1 A 35 VAC/DC | 489 gf | Through Hole | SPST-NO | 4.9 mm |
