1761605 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

IDC LOW PRO HDR 50P RA BLUE

Part	Contact Shape	Material Flammability Rating	Contact Material	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Connector Type	Number of Positions Loaded	Features	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Positions	Voltage Rating	Shrouding	Insulation Color	Fastening Type	Contact Length - Mating	Contact Length - Mating [x]	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions

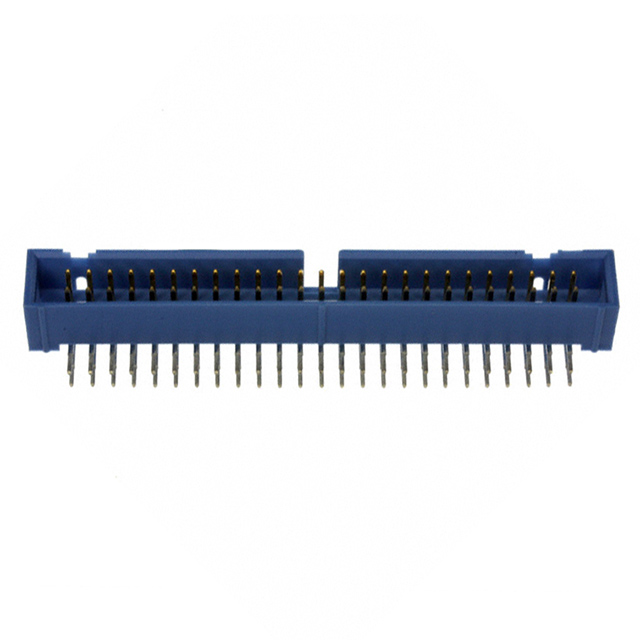

TE Connectivity Raychem Cable Protection 3-1761605-5	Square	UL94 V-0	Phosphor Bronze	2	2.54 µm	100 µin	Tin	1 A	0.102 in	2.6 mm	0.35 in	8.89 mm	30 Áin	0.76 Ám	Board to Cable/Wire	Header	All	Keying Slot	Gold	2.54 mm	0.1 in	Solder	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	50	250 VAC	Shrouded - 4 Wall	Blue	Push-Pull	6.1 mm	0.24 in	Male Pin	-65 ░C	105 ░C	Through Hole Right Angle
TE Connectivity Raychem Cable Protection 2-1761605-8	Square	UL94 V-0	Phosphor Bronze	2	2.54 µm	100 µin	Tin	1 A	0.102 in	2.6 mm	0.35 in	8.89 mm	30 Áin	0.76 Ám	Board to Cable/Wire	Header	All	Keying Slot	Gold	2.54 mm	0.1 in	Solder	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	24	250 VAC	Shrouded - 4 Wall	Blue	Push-Pull	6.1 mm	0.24 in	Male Pin	-65 ░C	105 ░C	Through Hole Right Angle

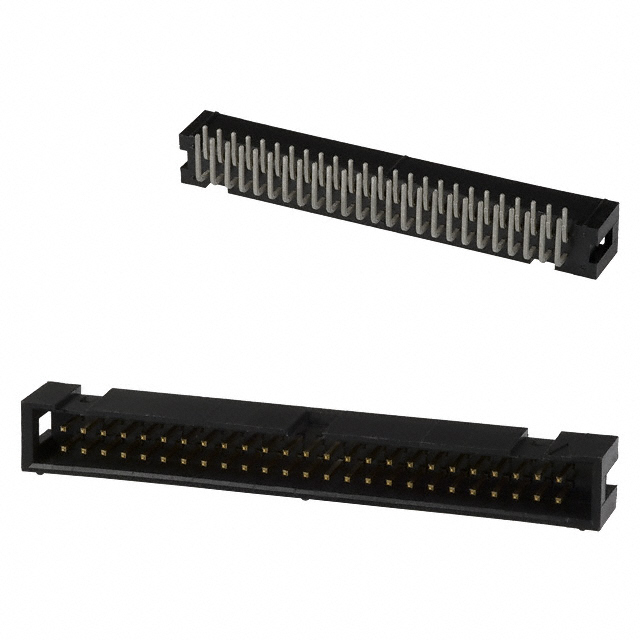

TE Connectivity Raychem Cable Protection 1-1761605-5	Square	UL94 V-0	Phosphor Bronze	2	2.54 µm	100 µin	Tin	1 A	0.102 in	2.6 mm	0.35 in	8.89 mm	30 Áin	0.76 Ám	Board to Cable/Wire	Header	All	Keying Slot	Gold	2.54 mm	0.1 in	Solder	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	50	250 VAC	Shrouded - 4 Wall	Black	Push-Pull	6.1 mm	0.24 in	Male Pin	-65 ░C	105 ░C	Through Hole Right Angle

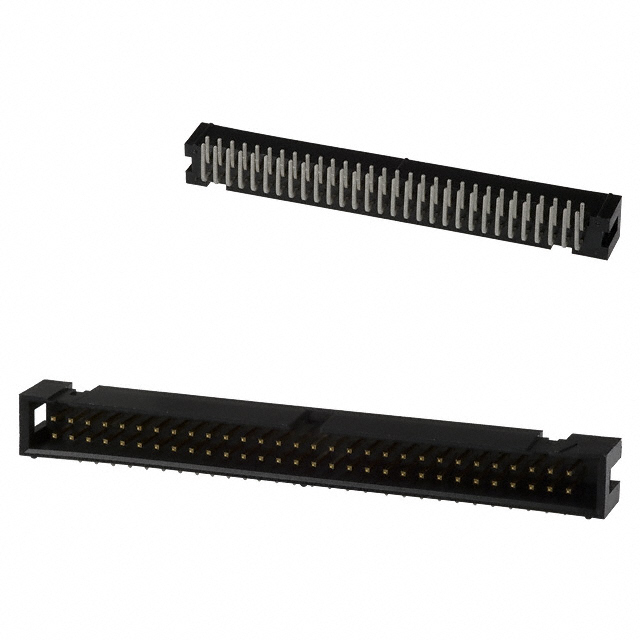

TE Connectivity Raychem Cable Protection 1-1761605-6	Square	UL94 V-0	Phosphor Bronze	2	2.54 µm	100 µin	Tin	1 A	0.102 in	2.6 mm	0.35 in	8.89 mm	30 Áin	0.76 Ám	Board to Cable/Wire	Header	All	Keying Slot	Gold	2.54 mm	0.1 in	Solder	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	60	250 VAC	Shrouded - 4 Wall	Black	Push-Pull	6.1 mm	0.24 in	Male Pin	-65 ░C	105 ░C	Through Hole Right Angle
TE Connectivity Raychem Cable Protection 1761605-6	Square	UL94 V-0	Phosphor Bronze	2	2.54 µm	100 µin	Tin	1 A	0.102 in	2.6 mm	0.35 in	8.89 mm	30 Áin	0.76 Ám	Board to Cable/Wire	Header	All	Keying Slot	Gold	2.54 mm	0.1 in	Solder	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm		250 VAC	Shrouded - 4 Wall	Black	Push-Pull	6.1 mm	0.24 in	Male Pin	-65 ░C	105 ░C	Through Hole Right Angle	16

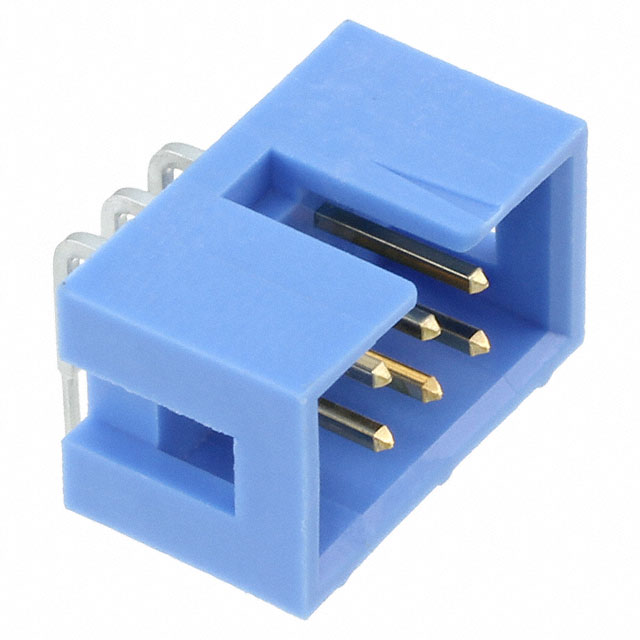

TE Connectivity Raychem Cable Protection 2-1761605-1	Square	UL94 V-0	Phosphor Bronze	2	2.54 µm	100 µin	Tin	1 A	0.102 in	2.6 mm	0.35 in	8.89 mm	30 Áin	0.76 Ám	Board to Cable/Wire	Header	All	Keying Slot	Gold	2.54 mm	0.1 in	Solder	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	6	250 VAC	Shrouded - 4 Wall	Blue	Push-Pull	6.1 mm	0.24 in	Male Pin	-65 ░C	105 ░C	Through Hole Right Angle

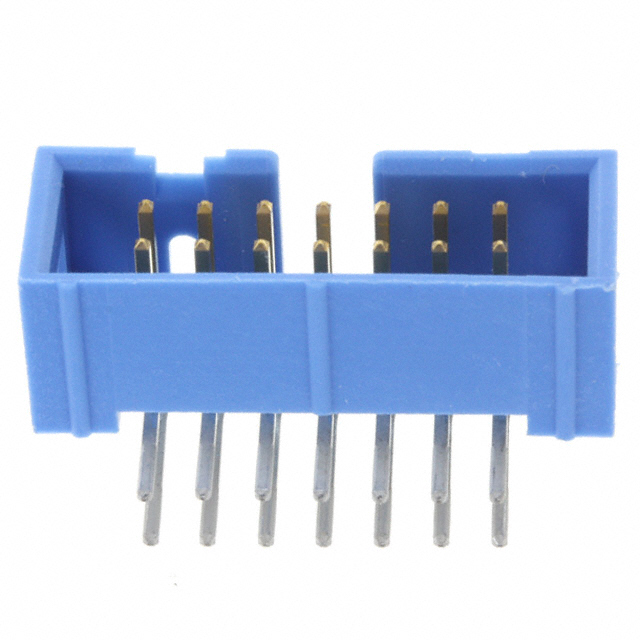

TE Connectivity Raychem Cable Protection 2-1761605-5	Square	UL94 V-0	Phosphor Bronze	2	2.54 µm	100 µin	Tin	1 A	0.102 in	2.6 mm	0.35 in	8.89 mm	30 Áin	0.76 Ám	Board to Cable/Wire	Header	All	Keying Slot	Gold	2.54 mm	0.1 in	Solder	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	14	250 VAC	Shrouded - 4 Wall	Blue	Push-Pull	6.1 mm	0.24 in	Male Pin	-65 ░C	105 ░C	Through Hole Right Angle

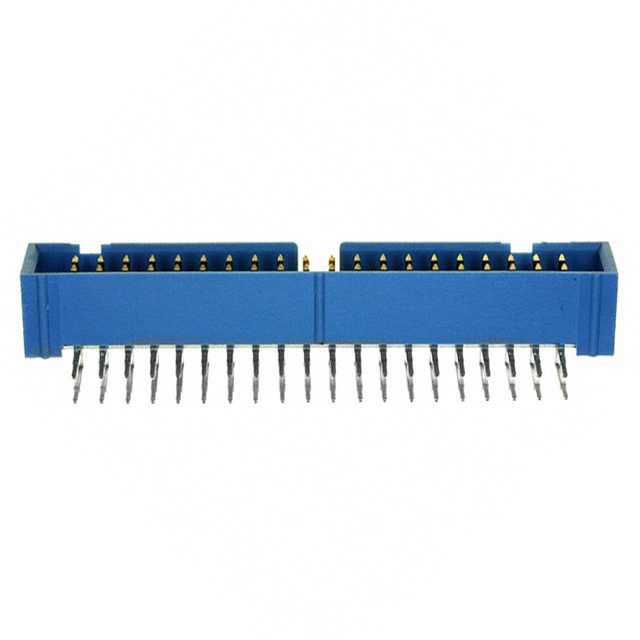

TE Connectivity Raychem Cable Protection 3-1761605-3	Square	UL94 V-0	Phosphor Bronze	2	2.54 µm	100 µin	Tin	1 A	0.102 in	2.6 mm	0.35 in	8.89 mm	30 Áin	0.76 Ám	Board to Cable/Wire	Header	All	Keying Slot	Gold	2.54 mm	0.1 in	Solder	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	40	250 VAC	Shrouded - 4 Wall	Blue	Push-Pull	6.1 mm	0.24 in	Male Pin	-65 ░C	105 ░C	Through Hole Right Angle

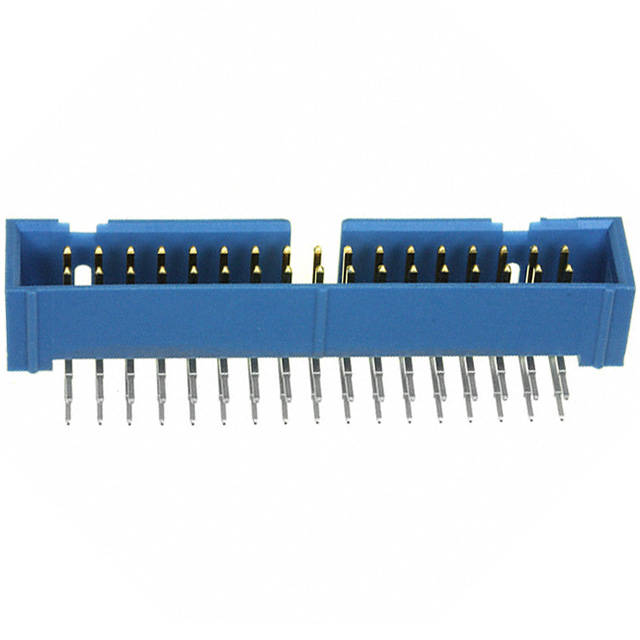

TE Connectivity Raychem Cable Protection 3-1761605-1	Square	UL94 V-0	Phosphor Bronze	2	2.54 µm	100 µin	Tin	1 A	0.102 in	2.6 mm	0.35 in	8.89 mm	30 Áin	0.76 Ám	Board to Cable/Wire	Header	All	Keying Slot	Gold	2.54 mm	0.1 in	Solder	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	34	250 VAC	Shrouded - 4 Wall	Blue	Push-Pull	6.1 mm	0.24 in	Male Pin	-65 ░C	105 ░C	Through Hole Right Angle
TE Connectivity Raychem Cable Protection 2-1761605-4	Square	UL94 V-0	Phosphor Bronze	2	2.54 µm	100 µin	Tin	1 A	0.102 in	2.6 mm	0.35 in	8.89 mm	30 Áin	0.76 Ám	Board to Cable/Wire	Header	All	Keying Slot	Gold	2.54 mm	0.1 in	Solder	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	12	250 VAC	Shrouded - 4 Wall	Blue	Push-Pull	6.1 mm	0.24 in	Male Pin	-65 ░C	105 ░C	Through Hole Right Angle
