5279C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

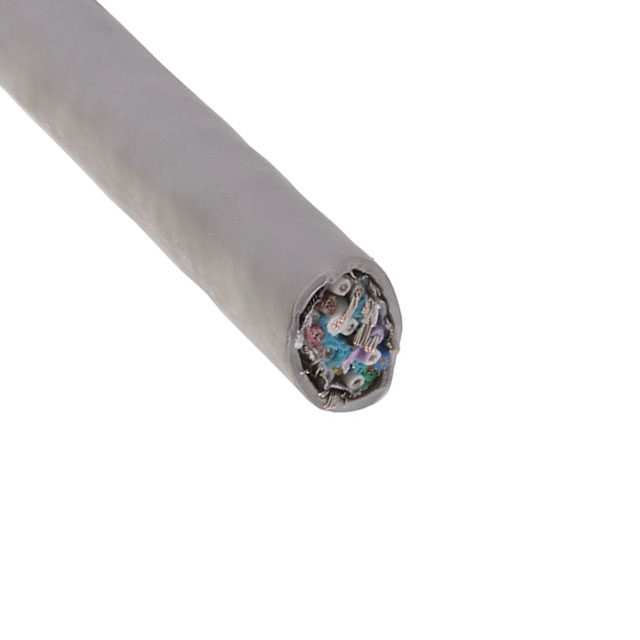

MULTIPAIR CABLE, XTRA GUARD® 1, SHIELDED, 9 PAIR, 24 AWG, 0.23 MM², 500 FT, 152.4 M
| Part | Shield Coverage | Number of Conductors | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Shield Type | Usage | Conductor Insulation | Features | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Voltage | Ratings | Cable Type | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | 18 | 24 AWG | 32 AWG | 7 | Slate | Braid Foil | Communication Control | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Copper Tinned | 300 V | ISO 10993 | Multi-Pair | 500 ' | 152.4 m | 9.14 mm | 0.36 " | Copper Tinned Suprashield® | ||
ALPHA WIRE | 70 % 100 % | 18 | 24 AWG | 32 AWG | 7 | Black | Braid Foil | Communication Control | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Copper Tinned | 300 V | ISO 10993 | Multi-Pair | 9.14 mm | 0.36 " | Copper Tinned Suprashield® | 1000 ft | 304.8 m | ||
 ALPHA WIRE | 70 % 100 % | 18 | 24 AWG | 32 AWG | 7 | Slate | Braid Foil | Communication Control | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Copper Tinned | 300 V | ISO 10993 | Multi-Pair | 100 ft | 30.5 m | 9.14 mm | 0.36 " | Copper Tinned Suprashield® | ||
ALPHA WIRE | 70 % 100 % | 18 | 24 AWG | 32 AWG | 7 | Slate | Braid Foil | Communication Control | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Copper Tinned | 300 V | ISO 10993 | Multi-Pair | 9.14 mm | 0.36 " | Copper Tinned Suprashield® |
