BM2P0361K-Z Series

PWM Type DC/DC Converter IC with Integrated Switching MOSFET

Catalog

PWM Type DC/DC Converter IC with Integrated Switching MOSFET

Part	Number of Outputs	Voltage - Input (Max) [Max]	Current - Output	Supplier Device Package	Package / Case	Package / Case	Package / Case	Mounting Type	Synchronous Rectifier	Voltage - Input (Min) [Min]	Frequency - Switching	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Output Configuration	Duty Cycle	Fault Protection	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Output Isolation	Voltage - Start Up	Voltage - Breakdown	Internal Switch(s)	Control Features

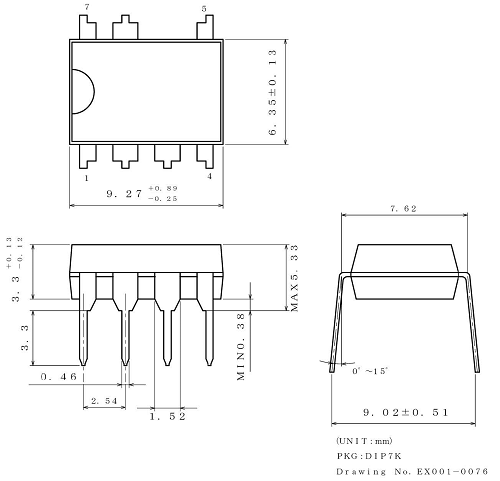

Rohm Semiconductor BM2P0361-Z	1	26 V	650 µA	7-DIPK	7.62 mm	0.3 in 7 Leads	8-DIP	Through Hole		8.9 V	65 kHz	105 °C	-40 °C	Flyback	Positive
Rohm Semiconductor BM2P0361K-Z				7-DIPK	7.62 mm	0.3 in 7 Leads	8-DIP	Through Hole			65 kHz	105 °C	-40 °C	Flyback		75 %	Current Limiting Over Load Over Temperature Over Voltage Short Circuit	8.9 V	26 V	Isolated	8.7 V	800 V		Soft Start

Catalog

PWM Type DC/DC Converter IC with Integrated Switching MOSFET

Key Features

• PWM Frequency: 65kHz, PWM Current Mode Control, Built-in Frequency Hopping Function, Burst Operation When Load is Light, Frequency Reduction Function, Built-in 730V Starter Circuit, Built-in 730V Switching MOSFET, VCC Pin Under-Voltage Protection, VCC Pin Over-Voltage Protection, SOURCE Pin Open Protection, SOURCE Pin Short Protection, SOURCE Pin Leading Edge Blanking Function, Per-Cycle Over-Current Protection Circuit, Over Current Protection AC Voltage Compensation Circuit, Soft Start, Secondary Over-Current Protection Circuit

Description

The PWM type DC/DC converter for AC/DC provides an optimal system for all products that require an electrical outlet. BM2P0361-Z supports both isolated and non-isolated devices, enabling simpler design of various types of low power consumption electrical converters. The built-in 650 V starter circuit contributes to low-power consumption. Power supply can be designed flexibly by connecting current sensing resistor for the switching externally. Current is restricted in each cycle and excellent performance is demonstrated in bandwidth and transient response since current mode control is utilized. The switching frequency is 65 kHz. At light load, the switching frequency is reduced and high efficiency is achieved. A frequency hopping function that contributes to low EMI is also included on chip. Design can be easily implemented because includes a 650 V switching MOSFET.You can choose from a variety of power and topologyevaluation boards.
