3SE5122 Series

Manufacturer: Siemens

Catalog

SWITCH LIMIT DPST 6A 125V

Part	Ingress Protection	Termination Style	Voltage Rating - AC	Actuator Type	Electrical Life	Current Rating (Amps)	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage Rating - DC	Circuit	Mechanical Life	Operating Force	Overtravel	Overtravel
Siemens 3SE51220BA001CA0	IP66 IP67	Screw Terminal	125 V	Round (Pin Plunger)	100000 Cycles	3 A 6 A	Off-Mom On-Mom	85 °C	-25 °C	Chassis Mount	24 V	DPST-NO/NC	15000000 Cycles	2039 gf
Siemens 3SE51220KB01	IP66 IP67	Screw Terminal	125 V	Round (Pin Plunger)	100000 Cycles	3 A 6 A	Off-Mom On-Mom	85 °C	-25 °C	Chassis Mount	24 V	3PST-2NC/1NO	15000000 Cycles	2039 gf
Siemens 3SE51220PC02	IP66 IP67	Screw Terminal	125 V	Round (Pin Plunger)	100000 Cycles	3 A 6 A	Off-Mom On-Mom	85 °C	-25 °C	Chassis Mount	24 V	3PST-2NO/1NC	15000000 Cycles	2039 gf	0.118 "	3 mm
Siemens 3SE51220LH50	IP66 IP67	Screw Terminal	125 V	Side Rotary Adjustable Roller	100000 Cycles	3 A 6 A	Off-Mom On-Mom	85 °C	-25 °C	Chassis Mount	24 V	3PST-2NC/1NO	15000000 Cycles
Siemens 3SE51220MA00	IP66 IP67	Screw Terminal	125 V	Round (Pin Plunger)	100000 Cycles	3 A 6 A	Off-Mom On-Mom	85 °C	-25 °C	Chassis Mount	24 V	3PST-2NC/1NO	15000000 Cycles	2039 gf
Siemens 3SE51220KA001AJ0	IP66 IP67	Screw Terminal	125 V	Round (Pin Plunger)	100000 Cycles	3 A 6 A	Off-Mom On-Mom	85 °C	-40 C	Chassis Mount	24 V	3PST-2NC/1NO	15000000 Cycles	2039 gf

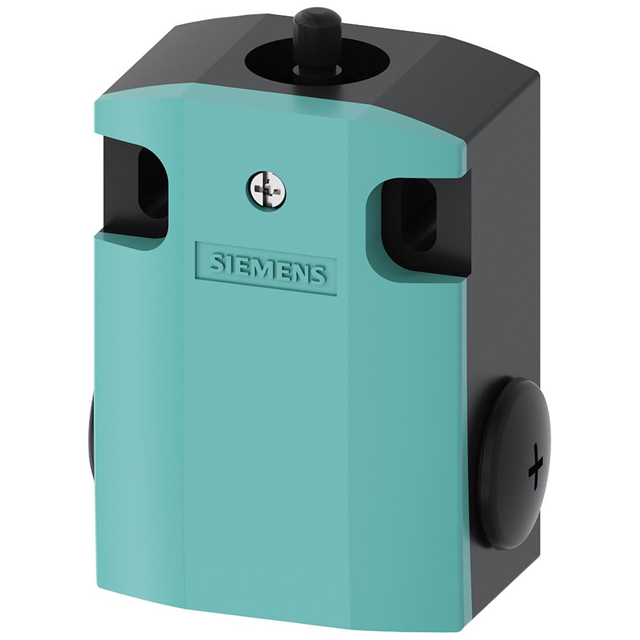

Siemens 3SE51220CA00	IP66 IP67	Screw Terminal	125 V	Round (Pin Plunger)	100000 Cycles	3 A 6 A	Off-Mom On-Mom	85 °C	-25 °C	Chassis Mount	24 V	DPST-NO/NC	15000000 Cycles	2039 gf
Siemens 3SE51220PE01	IP66 IP67	Screw Terminal	125 V	Roller Top Rotary	100000 Cycles	3 A 6 A	Off-Mom On-Mom	85 °C	-25 °C	Chassis Mount	24 V	3PST-2NO/1NC	15000000 Cycles	1020 gf

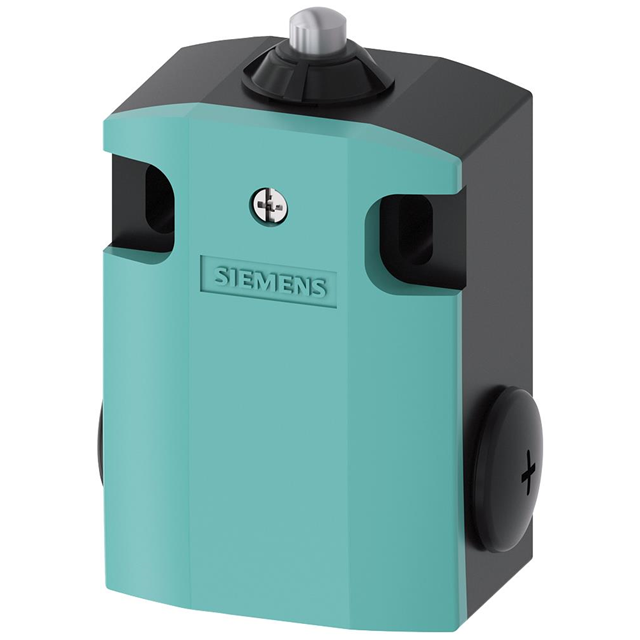

Siemens 3SE51220BB01	IP66 IP67	Screw Terminal	125 V	Round (Pin Plunger)	100000 Cycles	6 A 550 mA	Off-Mom On-Mom	85 °C	-25 °C	Chassis Mount	125 VDC	DPST-NO/NC	15000000 Cycles	2039 gf

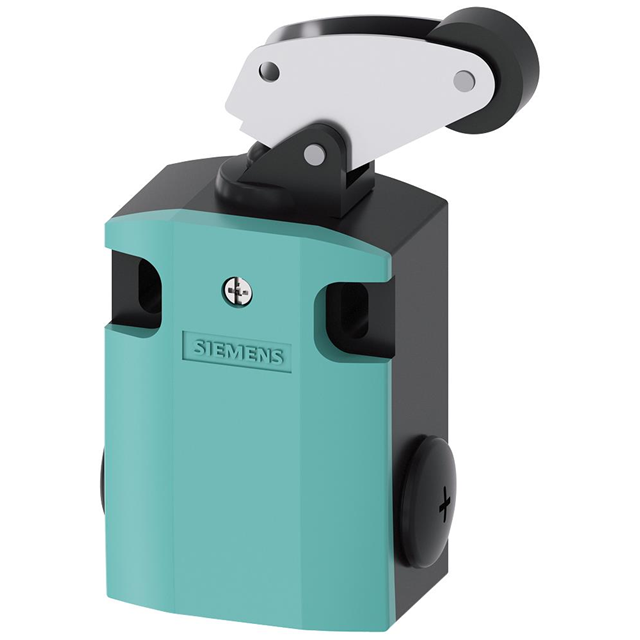

Siemens 3SE51220BF01	IP66 IP67	Screw Terminal	125 V	Roller Top Rotary	100000 Cycles	3 A 6 A	Off-Mom On-Mom	85 °C	-25 °C	Chassis Mount	24 V	DPST-NO/NC	15000000 Cycles	1020 gf
