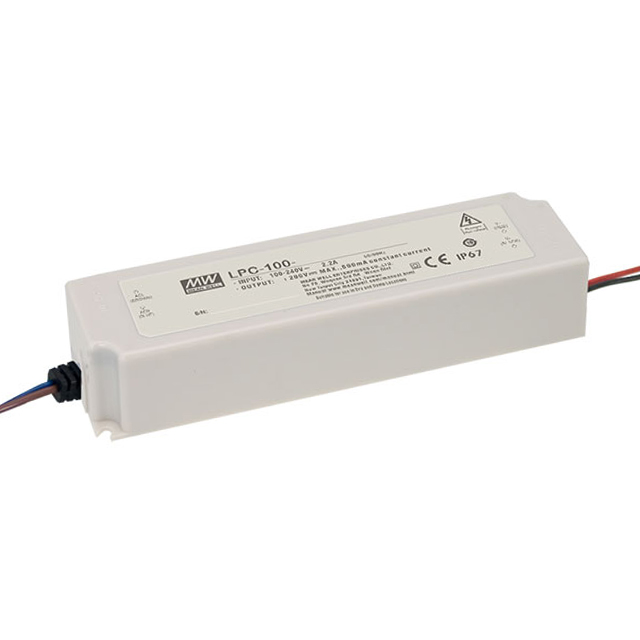

LPC-100 Series

Catalog

LED DRVR CC AC/DC 143-286V 350MA

Part	Mounting Type	Ratings	Number of Outputs	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Features	Current - Output (Max) [Max]	Topology	Power (Watts)	Approval Agency	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Type	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Output [Max]
MEAN WELL USA Inc. LPC-100-350	Chassis Mount	IP67	1	Wire Leads	50 °C	-25 °C	3000 V	OVP SCP	350 mA	AC DC Converter	100 W	CE	264 VAC	90 VAC	Constant Current	90 %	1.46 in	52 mm	7.48 in	37 mm	2.05 in	190 mm	143 V	286 V
MEAN WELL USA Inc. LPC-100-1400	Chassis Mount	IP67	1	Wire Leads	50 °C	-25 °C	3000 V	OVP SCP	1.4 A	AC DC Converter	101 W	CE	264 VAC	90 VAC	Constant Current		1.46 in	52 mm	7.48 in	37 mm	2.05 in	190 mm	36 V	72 V
MEAN WELL USA Inc. LPC-100-700	Chassis Mount	IP67	1	Wire Leads	50 °C	-25 °C	3000 V	OVP SCP	700 mA	AC DC Converter	100 W	CE	264 VAC	90 VAC	Constant Current	90 %	1.46 in	52 mm	7.48 in	37 mm	2.05 in	190 mm	72 V	143 V
MEAN WELL USA Inc. LPC-100-500	Chassis Mount	IP67	1	Wire Leads	50 °C	-25 °C	3000 V	OVP SCP	500 mA	AC DC Converter	100 W	CE	264 VAC	90 VAC	Constant Current	90 %	1.46 in	52 mm	7.48 in	37 mm	2.05 in	190 mm	100 V		200 V
MEAN WELL USA Inc. LPC-100-2100	Chassis Mount	IP67	1	Wire Leads	50 °C	-25 °C	3000 V	OVP SCP	2.1 A	AC DC Converter	101 W	CE	264 VAC	90 VAC	Constant Current	89 %	1.46 in	52 mm	7.48 in	37 mm	2.05 in	190 mm	24 V	48 V
