FVN.1S Series
Manufacturer: LEMO
Beta
⌘K

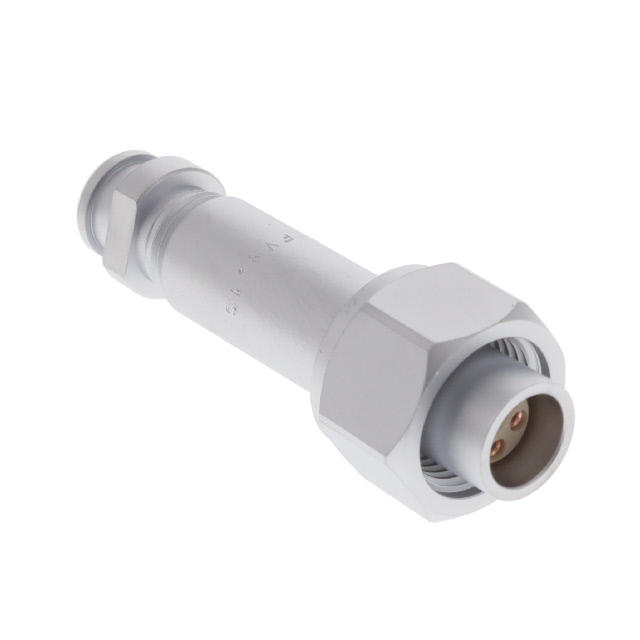

CONN CIRC PLUG 4POS GOLD
| Part | Connector Type | Shell Finish | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert | Ingress Protection | Orientation | Primary Material | Fastening Type | Shell Material | Mounting Type | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Current Rating (Amps) | Number of Positions | Insert Material | Material Flammability Rating | Contact Finish - Mating | Color | Shielding | Contact Material | Cable Opening [Max] | Cable Opening [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Plug Female Sockets and Male Pins | Chrome | -55 C | 250 °C | 304 | IP50 - Dust Protected | Keyed | Metal | Push-Pull | Brass | Free Hanging (In-Line) | 0.205 in | 4.2 mm | 5.2 mm | 0.165 " | 10 A | 4 | Polyetheretherketone (PEEK) | UL94 V-0 | Gold | Silver | Shielded | Brass Bronze | |||
Plug Female Sockets and Male Pins | Chrome | -55 C | 250 °C | 304 | IP50 - Dust Protected | Keyed | Metal | Push-Pull | Brass | Free Hanging (In-Line) | 0.126 " | 0.165 " | 10 A | 4 | Polyetheretherketone (PEEK) | UL94 V-0 | Gold | Silver | Shielded | Brass Bronze | 4.2 mm | 3.2 mm |
