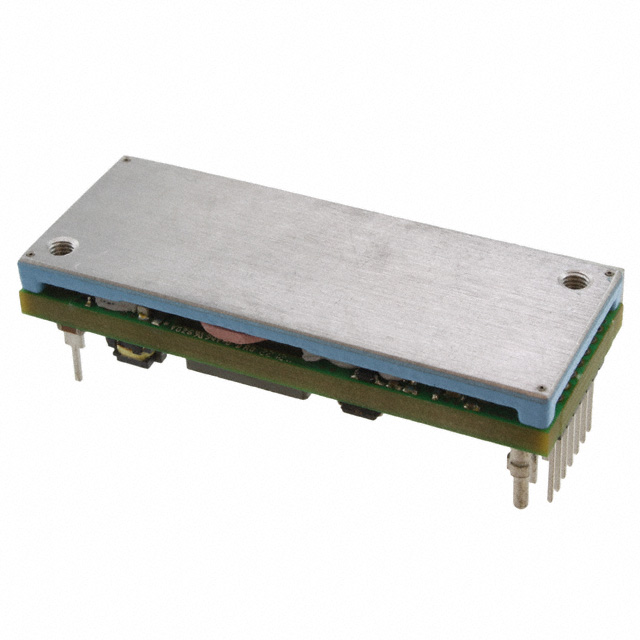

EBDW025 Series

Catalog

DC DC CONVERTER 12V 300W

Part	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Input (Min) [Min]	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Type	Efficiency	Power (Watts)	Mounting Type	Number of Outputs	Package / Case	Current - Output (Max) [Max]	Voltage - Output 1	Voltage - Input (Max) [Max]
OmniOn Power™ EBDW025A0B641-PHZ	2250 VDC	85 °C	-40 C	ITE (Commercial)	36 V	Digital with Remote On/Off and UVLO	0.44 in	58.4 mm	11.1 mm	0.9 in	22.9 mm	2.3 in	Intermediate Bus Converter Digital	94.7 %	300 W	Through Hole	1	8-DIP Module 1/8 Brick	25 A	12 V	75 V
OmniOn Power™ EBDW025A0B641-PHZ	2250 VDC	85 °C	-40 C	ITE (Commercial)	36 V	Digital with Remote On/Off and UVLO	0.44 in	58.4 mm	11.1 mm	0.9 in	22.9 mm	2.3 in	Intermediate Bus Converter Digital	94.7 %	300 W	Through Hole	1	8-DIP Module 1/8 Brick	25 A	12 V	75 V
OmniOn Power™ EBDW025A0B41Z	2250 VDC	85 °C	-40 C	ITE (Commercial)	36 V	Digital with Remote On/Off and UVLO	0.44 in	58.4 mm	11.1 mm	0.9 in	22.9 mm	2.3 in	Intermediate Bus Converter Digital	94.7 %	300 W	Through Hole	1	8-DIP Module 1/8 Brick	25 A	12 V	75 V
OmniOn Power™ EBDW025A0B41Z	2250 VDC	85 °C	-40 C	ITE (Commercial)	36 V	Digital with Remote On/Off and UVLO	0.44 in	58.4 mm	11.1 mm	0.9 in	22.9 mm	2.3 in	Intermediate Bus Converter Digital	94.7 %	300 W	Through Hole	1	8-DIP Module 1/8 Brick	25 A	12 V	75 V
