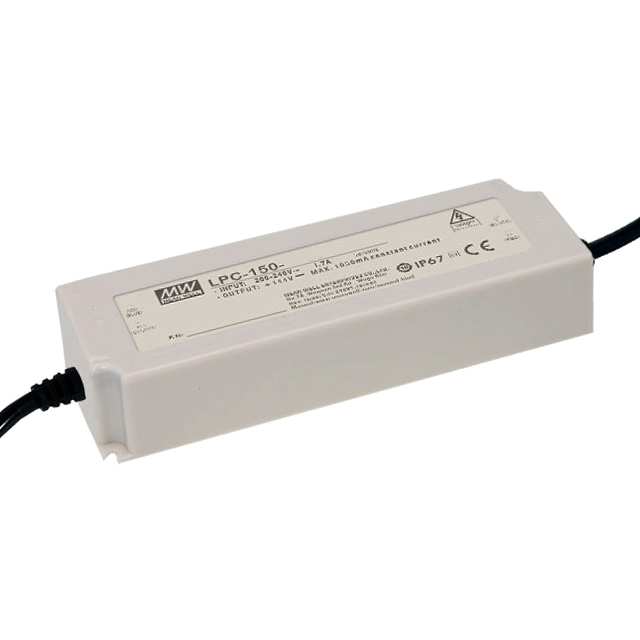

LPC-150 Series

Catalog

LED DRVR CC AC/DC 24-48V 3.15A

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Type	Voltage - Input (Min) [Min]	Ratings	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Output [Max]	Voltage - Output [Min]	Features	Approval Agency	Topology	Termination Style	Voltage - Isolation	Current - Output (Max) [Max]
MEAN WELL USA Inc. LPC-150-3150	Chassis Mount	50 °C	-25 °C	151 W	Constant Current	180 VAC	IP67	90 %	37.5 mm	191 mm	2.48 in	63 mm	7.52 in	1.48 "	1	305 VAC	48 V	24 V	OTP OVP SCP	CE	AC DC Converter	Wire Leads	3000 V	3.15 A
MEAN WELL USA Inc. LPC-150-350	Chassis Mount	50 °C	-25 °C	151 W	Constant Current	180 VAC	IP67	90 %	37.5 mm	191 mm	2.48 in	63 mm	7.52 in	1.48 "	1	305 VAC	430 V	215 V	OTP OVP SCP	CE	AC DC Converter	Wire Leads	3000 V	350 mA
MEAN WELL USA Inc. LPC-150-1750	Chassis Mount	50 °C	-25 °C	151 W	Constant Current	180 VAC	IP67	90 %	37.5 mm	191 mm	2.48 in	63 mm	7.52 in	1.48 "	1	305 VAC	86 V	43 V	OTP OVP SCP	CE	AC DC Converter	Wire Leads	3000 V	1.75 A
MEAN WELL USA Inc. LPC-150-2800	Chassis Mount	50 °C	-25 °C	151 W	Constant Current	180 VAC	IP67	90 %	37.5 mm	191 mm	2.48 in	63 mm	7.52 in	1.48 "	1	305 VAC	54 V	27 V	OTP OVP SCP	CE	AC DC Converter	Wire Leads	3000 V	2.8 A
MEAN WELL USA Inc. LPC-150-2450	Chassis Mount	50 °C	-25 °C	152 W	Constant Current	180 VAC	IP67	90 %	37.5 mm	191 mm	2.48 in	63 mm	7.52 in	1.48 "	1	305 VAC	62 V	31 V	OTP OVP SCP	CE	AC DC Converter	Wire Leads	3000 V	2.45 A
MEAN WELL USA Inc. LPC-150-700	Chassis Mount	50 °C	-25 °C	151 W	Constant Current	180 VAC	IP67	90 %	37.5 mm	191 mm	2.48 in	63 mm	7.52 in	1.48 "	1	305 VAC	215 V	107 V	OTP OVP SCP	CE	AC DC Converter	Wire Leads	3000 V	700 mA
MEAN WELL USA Inc. LPC-150-1400	Chassis Mount	50 °C	-25 °C	151 W	Constant Current	180 VAC	IP67	90 %	37.5 mm	191 mm	2.48 in	63 mm	7.52 in	1.48 "	1	305 VAC	108 V	54 V	OTP OVP SCP	CE	AC DC Converter	Wire Leads	3000 V	1.4 A
