2433C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

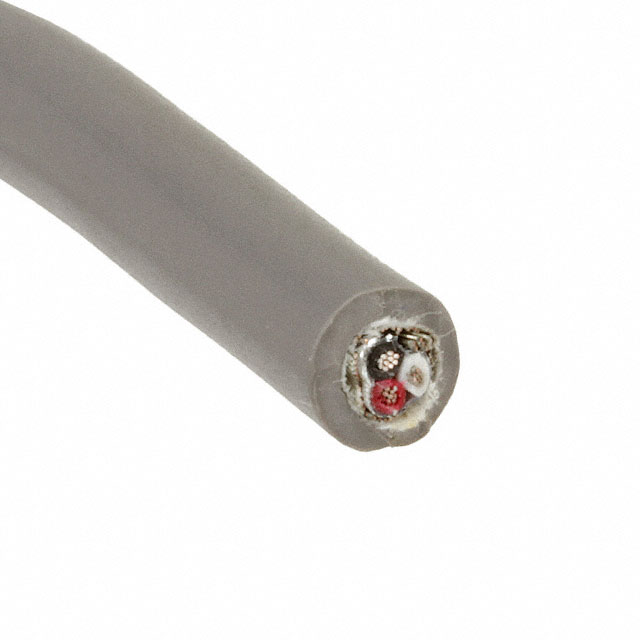

CABLE 3COND 16AWG SHLD
| Part | Shield Material | Shield Coverage | Wire Gauge | Features | Usage | Cable Type | Jacket (Insulation) Material | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Number of Conductors | Voltage | Shield Type | Length | Length | Conductor Strand [custom] | Conductor Strand [diameter] | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 16 AWG | Drain Wire | Communication Control | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Polyethylene (PE) | 0.24 " | 6.1 mm | Copper Tinned | 3 | 300 VDC | Foil | 304.8 m | 1000 ft | 19 | 0.0117 in | Slate | 0.02 " | 0.508 mm |
