MHR-50 Series
Manufacturer: Adam Tech
Beta
⌘K

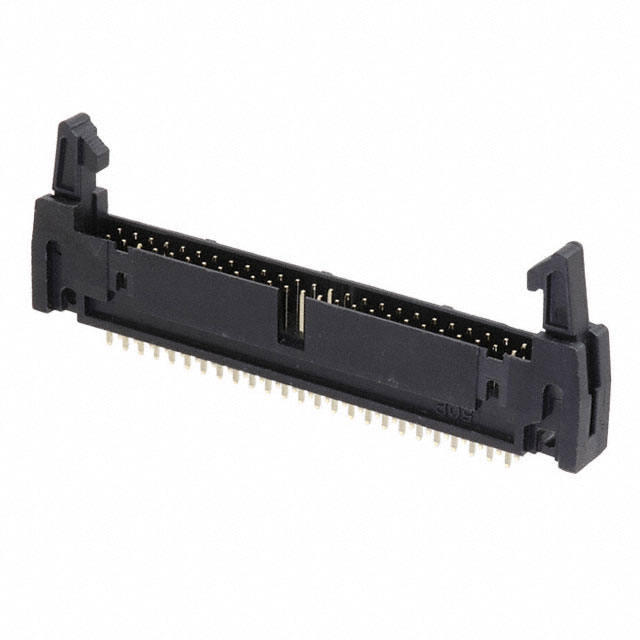

CONN HEADER VERT 50POS 2.54MM
| Part | Contact Finish Thickness - Post | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions | Contact Finish Thickness - Mating | Insulation Color | Mounting Type | Fastening Type | Style | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Insulation Height [z] | Insulation Height | Contact Finish - Mating | Current Rating (Amps) | Contact Material | Shrouding | Features | Connector Type | Voltage Rating | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Contact Type | Number of Positions Loaded | Contact Finish - Post | Insulation Material | Contact Shape | Number of Rows [custom] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Flash | 0.1 in | 2.54 mm | 50 | Flash | Black | Through Hole | Latch Lock/Eject Hooks Long | Board to Cable/Wire | -55 C | 105 ░C | 0.1 " | 2.54 mm | 0.331 in | 8.4 mm | Gold | 3 A | Brass | Shrouded - 4 Wall | Keying Slot | Header | 250 VAC | 0.142 in | 3.6 mm | UL94 V-0 | Male Pin | All | Gold | Polybutylene Terephthalate (PBT) | Square | 2 | Solder |
