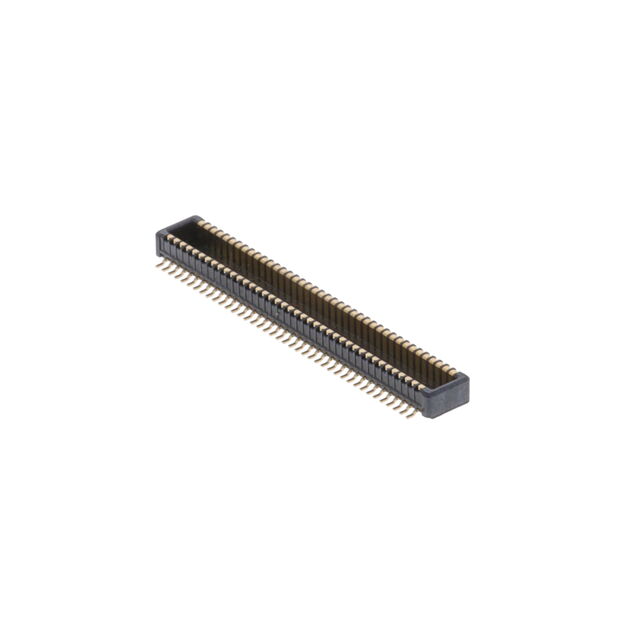

Board to Board & Mezzanine Connectors .5MM HDR SMT 02X40P VT 0.50mm Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical, 2.50mm Stack Height, 80 Circuits
Board to Board & Mezzanine Connectors .5MM HDR SMT 02X40P VT 0.50mm Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical, 2.50mm Stack Height, 80 Circuits
Board to Board & Mezzanine Connectors .5MM HDR SMT 02X40P VT 0.50mm Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical, 2.50mm Stack Height, 80 Circuits
| Part | Contact Finish | Pitch [x] | Pitch [x] | Height Above Board | Height Above Board | Mounting Type | Connector Type | Mated Stacking Heights | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Gold | 0.5 mm | 0.02 in | 0.058 in | 1.48 mm | Surface Mount | Outer Shroud Contacts Plug | 2.5 mm | 20 | 10 Áin | 0.25 Ám | 2 | |

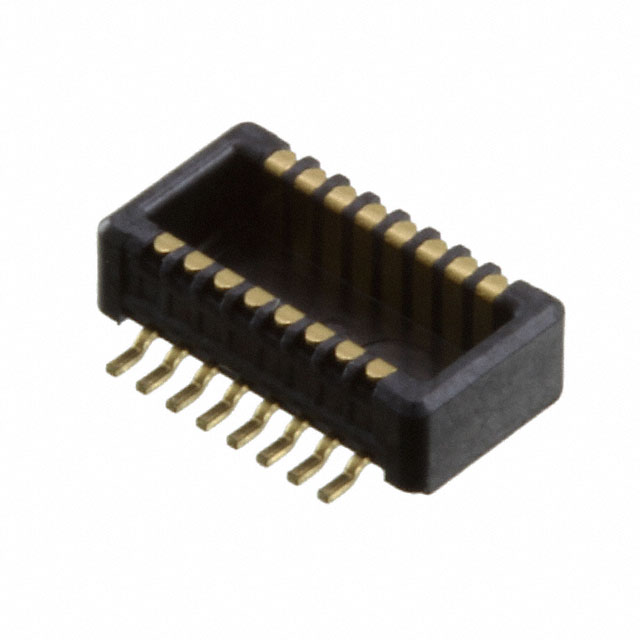

 Molex | Gold | 0.5 mm | 0.02 in | 0.058 in | 1.48 mm | Surface Mount | Outer Shroud Contacts Plug | 2.5 mm | 10 Áin | 0.25 Ám | 2 | 16 | |
 Molex | Gold | 0.5 mm | 0.02 in | 0.058 in | 1.48 mm | Surface Mount | Outer Shroud Contacts Plug | 2.5 mm | 30 | 10 Áin | 0.25 Ám | 2 | |
 Molex | Gold | 0.5 mm | 0.02 in | 0.058 in | 1.48 mm | Surface Mount | Outer Shroud Contacts Plug | 2.5 mm | 80 | 10 Áin | 0.25 Ám | 2 |
