3601-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

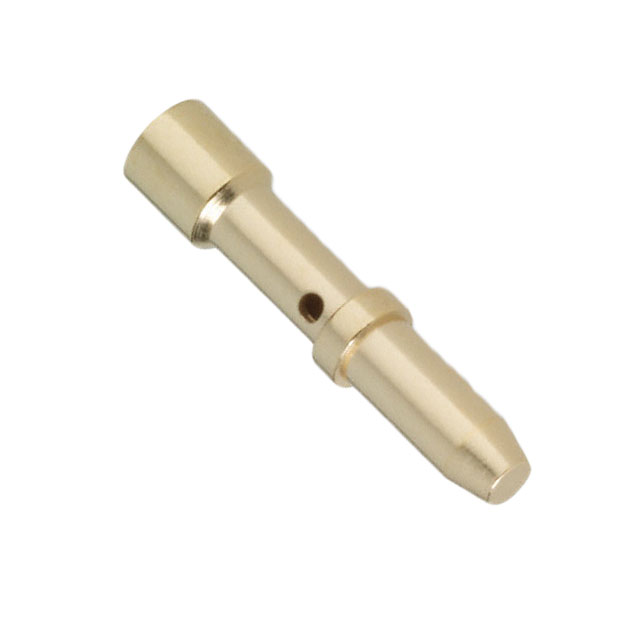

CONN PC PIN CIRC .080DIA GOLD
| Part | Contact Finish | Termination | Contact Finish Thickness | Contact Finish Thickness | Terminal Type | Length - Below Flange [x] | Length - Below Flange [x] | Length - Above Flange [x] | Length - Above Flange [x] | Terminal Style | Contact Material | Mounting Type | Pin Size - Above Flange | Pin Size - Above Flange [diameter] | Length - Overall [x] | Length - Overall [x] | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Gold | Crimp | 50 µin | 1.27 µm | PC Pin | 6.99 mm | 0.275 " | 0.2 in | 5.08 mm | Wire | Brass Alloy | Free Hanging (In-Line) | 2.03 mm | 0.08 in | 12.85 mm | 0.506 in | Non-Insulated |
 Mill-Max Manufacturing Corp. | Gold | Crimp | 20 µin | 0.51 µm | PC Pin | 6.99 mm | 0.275 " | 0.2 in | 5.08 mm | Wire | Brass Alloy | Free Hanging (In-Line) | 2.03 mm | 0.08 in | 12.85 mm | 0.506 in | Non-Insulated |
