629W11W Series
Manufacturer: EDAC Inc.
Beta
⌘K

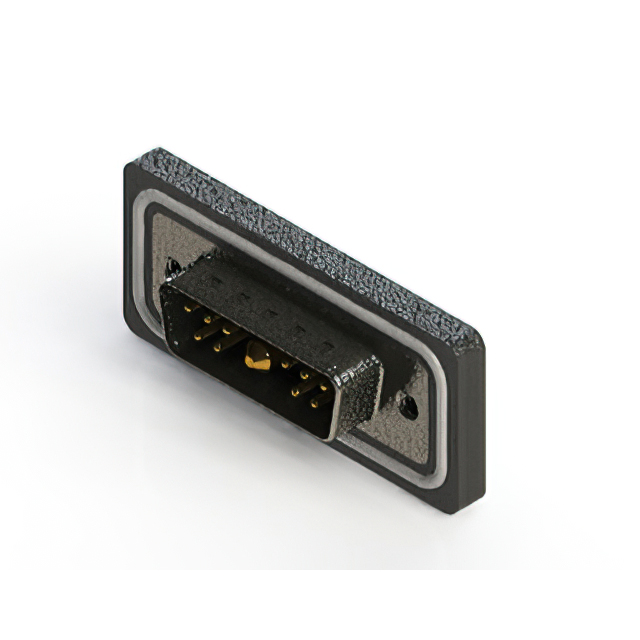

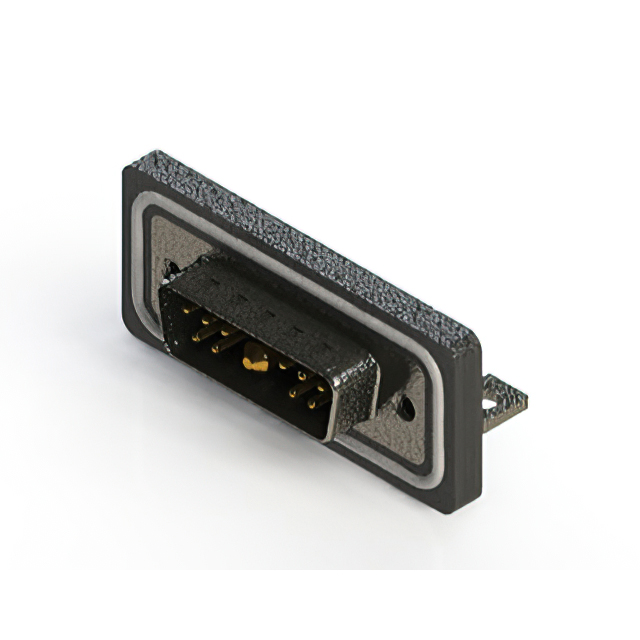

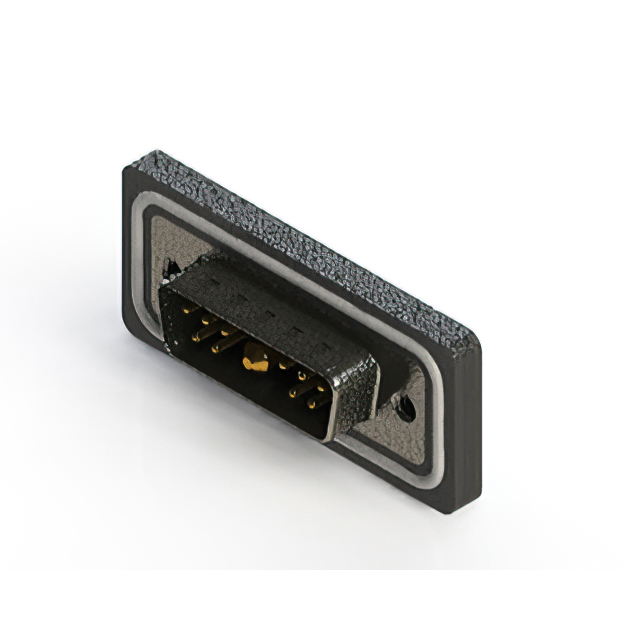

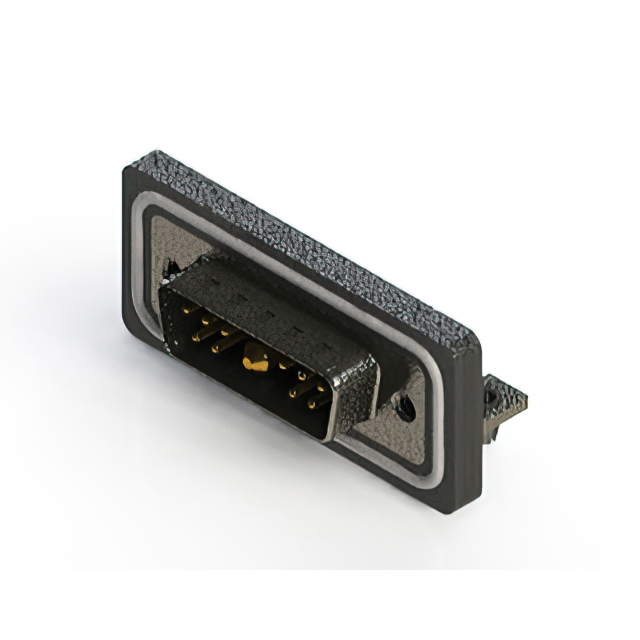

CONN D-SUB PLUG 11POS R/A SLDR
| Part | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Voltage Rating | Contact Finish | Features | Number of Rows [custom] | Connector Style | Shell Material, Finish | Flange Feature | Connector Type | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Termination | Current Rating (Amps) | Ingress Protection | Number of Positions [custom] | Number of Positions [custom] | Contact Type | Shell Size, Connector Layout | Flange Feature | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Black | 125 VDC | Gold | Grounding Indents Shielded | 2 | Combo D-Sub | Nickel Plated Steel | Housing/Shell (M3) | Plug Male Pins | Panel Mount Right Angle Through Hole | 5 µin | 0.127 µm | UL94 V-0 | Solder | 10A 5A | IP67 - Dust Tight Waterproof | 10 | 1 | Signal and Power | 2 (DA A) - 11C1 11W1 | ||
 EDAC Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Black | 125 VDC | Gold | Board Lock Filter Grounding Indents Mounting Brackets Shielded | 2 | Combo D-Sub | Nickel Plated Steel | Housing/Shell (M3) | Plug Male Pins | Panel Mount Right Angle Through Hole | 30 Áin | 0.76 Ám | UL94 V-0 | Solder | 20A 5A | IP67 - Dust Tight Waterproof | 10 | 1 | Signal and Power | 2 (DA A) - 11C1 11W1 | ||
 EDAC Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Black | 125 VDC | Gold | Grounding Indents Mounting Brackets Shielded | 2 | Combo D-Sub | Nickel Plated Steel | Housing/Shell | Plug Male Pins | Panel Mount Right Angle Through Hole | 5 µin | 0.127 µm | UL94 V-0 | Solder | 20A 5A | IP67 - Dust Tight Waterproof | 10 | 1 | Signal and Power | 2 (DA A) - 11C1 11W1 | 4-40 | |
 EDAC Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Black | 125 VDC | Gold | Grounding Indents Mounting Brackets Shielded | 2 | Combo D-Sub | Nickel Plated Steel | Housing/Shell | Plug Male Pins | Panel Mount Right Angle Through Hole | 30 Áin | 0.76 Ám | UL94 V-0 | Solder | IP67 - Dust Tight Waterproof | 10 | 1 | Signal and Power | 2 (DA A) - 11C1 11W1 | 4-40 | 5 A 30 A | |
 EDAC Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Black | 125 VDC | Gold | Board Lock Filter Grounding Indents Mounting Brackets Shielded | 2 | Combo D-Sub | Nickel Plated Steel | Housing/Shell (M3) | Plug Male Pins | Panel Mount Right Angle Through Hole | 30 Áin | 0.76 Ám | UL94 V-0 | Solder | IP67 - Dust Tight Waterproof | 10 | 1 | Signal and Power | 2 (DA A) - 11C1 11W1 | 5 A 30 A | ||
 EDAC Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Black | 125 VDC | Gold | Grounding Indents Mounting Brackets Shielded | 2 | Combo D-Sub | Nickel Plated Steel | Housing/Shell (M3) | Plug Male Pins | Right Angle Through Hole | 30 Áin | 0.76 Ám | UL94 V-0 | Solder | IP67 - Dust Tight Waterproof | 10 | 1 | Signal and Power | 2 (DA A) - 11C1 11W1 | 5 A 40 A | ||
 EDAC Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Black | 125 VDC | Gold | Grounding Indents Shielded | 2 | Combo D-Sub | Nickel Plated Steel | Housing/Shell (M3) | Plug Male Pins | Panel Mount Right Angle Through Hole | 30 Áin | 0.76 Ám | UL94 V-0 | Solder | IP67 - Dust Tight Waterproof | 10 | 1 | Signal and Power | 2 (DA A) - 11C1 11W1 | 5 A 30 A | ||
 EDAC Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Black | 125 VDC | Gold | Grounding Indents Mounting Brackets Shielded | 2 | Combo D-Sub | Nickel Plated Steel | Housing/Shell | Plug Male Pins | Panel Mount Right Angle Through Hole | 5 µin | 0.127 µm | UL94 V-0 | Solder | 10A 5A | IP67 - Dust Tight Waterproof | 10 | 1 | Signal and Power | 2 (DA A) - 11C1 11W1 | 4-40 | |
 EDAC Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Black | 125 VDC | Gold | Grounding Indents Mounting Brackets Shielded | 2 | Combo D-Sub | Nickel Plated Steel | Housing/Shell (M3) | Plug Male Pins | Right Angle Through Hole | 30 Áin | 0.76 Ám | UL94 V-0 | Solder | IP67 - Dust Tight Waterproof | 10 | 1 | Signal and Power | 2 (DA A) - 11C1 11W1 | 5 A 30 A | ||
 EDAC Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Black | 125 VDC | Gold | Grounding Indents Mounting Brackets Shielded | 2 | Combo D-Sub | Nickel Plated Steel | Housing/Shell (M3) | Plug Male Pins | Right Angle Through Hole | 5 µin | 0.127 µm | UL94 V-0 | Solder | 10A 5A | IP67 - Dust Tight Waterproof | 10 | 1 | Signal and Power | 2 (DA A) - 11C1 11W1 |
