3294 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

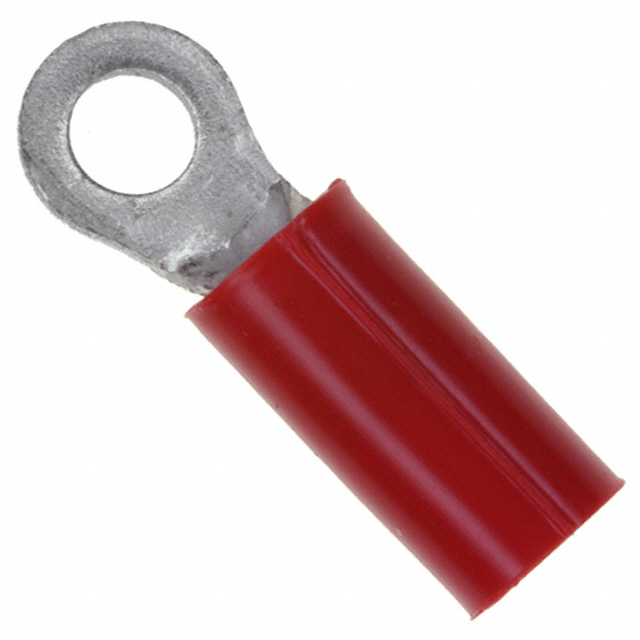

PG R 22-16 COMM 22-18 MIL 4
| Part | Stud/Tab Size | Thickness | Thickness | Wire Gauge [Max] | Wire Gauge [Min] | Width - Outer Edges [x] | Width - Outer Edges [x] | Features | Mounting Type | Length - Overall [x] | Length - Overall [x] | Contact Material | Terminal Type | Termination | Material - Insulation | Color | Insulation | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 4 Stud | 0.031 in | 0.79 mm | 22 AWG | 16 AWG | 5.54 mm | 0.218 in | Serrated Termination | Free Hanging (In-Line) | 17.37 mm | 0.684 in | Copper | Circular | Crimp | Poly-Vinyl Chloride (PVC) | Red | Insulated | 2.03 mm | 3.18 mm | 0.125 " | 0.08 in | Tin |
