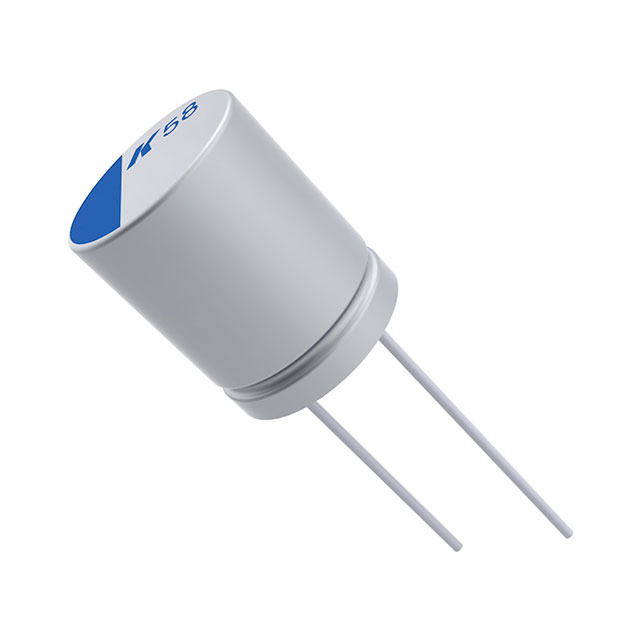

A758KR Series

Manufacturer: KEMET

Catalog

CAP ALUM POLY 680UF 20% 10V TH

Part	Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Mounting Type	Package / Case	Ripple Current @ Low Frequency	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Lifetime @ Temp.	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Tolerance	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]
KEMET A758KR687M1AAAE008	Polymer	0.315 in	8 mm	5.65 A	Through Hole	Can Radial	282.5 mA	10 V	0.512 "	13 mm	General Purpose	5000 Hrs	0.138 in	3.5 mm	8 mOhms	20 %	680 µF	-55 C	105 ░C
KEMET A758KR477M1AAAE011	Polymer	0.315 in	8 mm	5.1 A	Through Hole	Can Radial	255 mA	10 V	0.512 "	13 mm	General Purpose	5000 Hrs	0.138 in	3.5 mm	11 mOhm	20 %	470 µF	-55 C	105 ░C
KEMET A758KR277M1CAAE011	Polymer	0.315 in	8 mm		Through Hole	Can Radial	250 mA	16 V	0.512 "	13 mm	General Purpose	5000 Hrs	0.138 in	3.5 mm	11 mOhm	20 %	270 µF	-55 C	105 ░C
KEMET A758KR567M1AAAE011	Polymer	0.315 in	8 mm	5.1 A	Through Hole	Can Radial	255 mA	10 V	0.512 "	13 mm	General Purpose	5000 Hrs	0.138 in	3.5 mm	11 mOhm	20 %	560 µF	-55 C	105 ░C
