5122FN Series
Manufacturer: Belden Inc.
Beta
⌘K

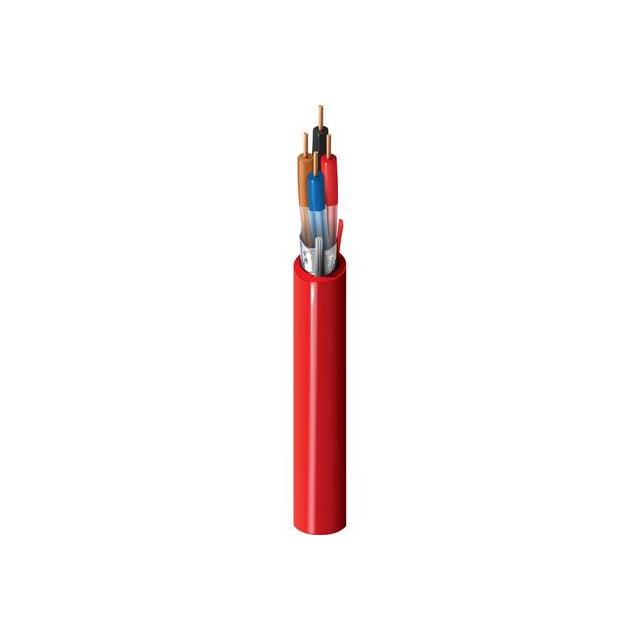

CABLE 4COND 14AWG RED SHLD 500'
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Conductor Insulation | Conductor Insulation | Conductor Insulation | Number of Conductors | Ratings | Cable Type | Length | Length | Features | Jacket Color | Conductor Material | Conductor Strand | Voltage | Usage | Shield Type | Wire Gauge | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 0.042 in | 1.067 mm | 8.84 mm | 0.348 in | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | 4 | UL Style NPLF | Multi-Conductor | 152.4 m | 500 ft | Drain Wire Rip Cord | Red | Copper Bare | Solid | 150 V | Alarm Safety | Foil | 14.5 AWG | Poly-Vinyl Chloride (PVC) |
