F62ERL Series

Catalog

OM1 2F 1.6MM PC OFNR LC DUP/LC DUP STD P

Part	1st Connector	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Type	Color - Connectors	Insertion Loss	Color - Cable	Fiber Type	2nd Connector	Bend Radius [radius]	Cable Diameter [diameter]	Cable Diameter [diameter]	Features	Length - Overall [x]	Length - Overall [x]

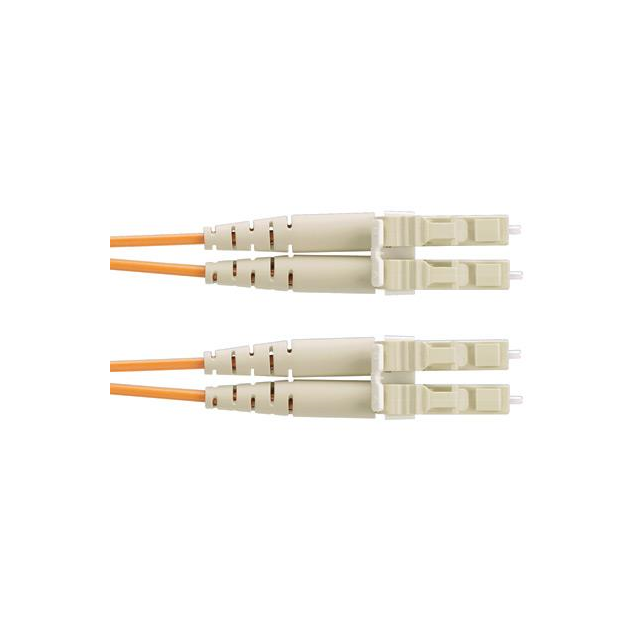

Panduit Corp F62ERLNLNSNM045	LC Duplex	Twin Zip	-20 C	70 °C	Duplex Multimode OM1	Black	0.25 dB	Orange	62.5/125	LC Duplex	16 mm	0.06 in	1.6 mm	Riser Zipcord

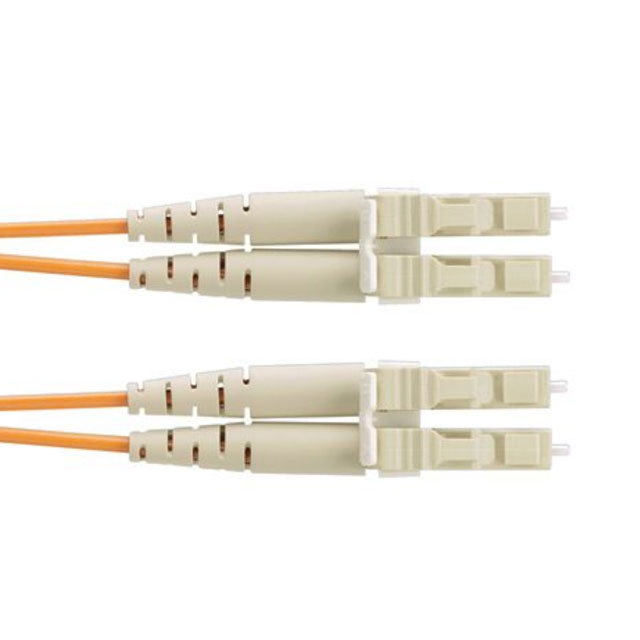

Panduit Corp F62ERLNLNSNM003	LC Duplex	Twin Zip	-20 C	70 °C	Duplex Multimode OM1	Black	0.25 dB	Orange	62.5/125	LC Duplex	16 mm	0.06 in	1.6 mm	Riser Zipcord	3 m	9.8 ft

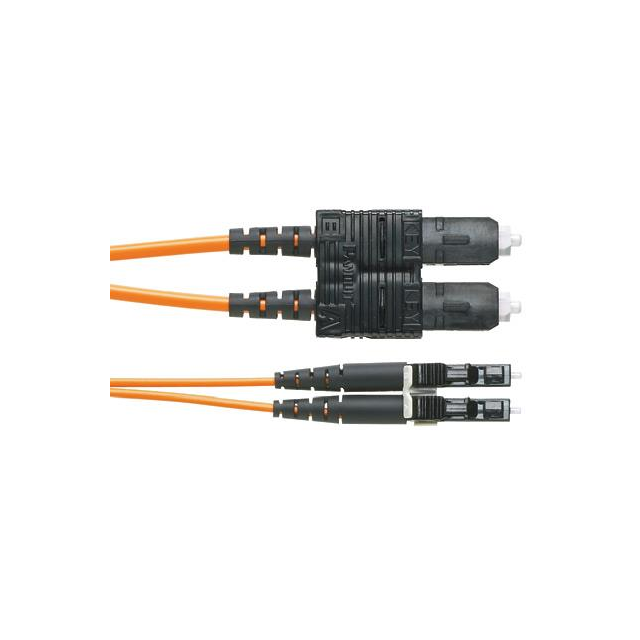

Panduit Corp F62ERLNSNSNM030	LC Duplex	Twin Zip	-20 C	70 °C	Duplex Multimode OM1	Black	0.25 dB	Orange	62.5/125	SC Duplex	16 mm	0.06 in	1.6 mm	Riser Zipcord
Panduit Corp F62ERLNLNSNM023	LC Duplex	Twin Zip	-20 C	70 °C	Duplex Multimode OM1	Black	0.25 dB	Orange	62.5/125	LC Duplex	16 mm	0.06 in	1.6 mm	Riser Zipcord
Panduit Corp F62ERLNSNSNM028	LC Duplex	Twin Zip	-20 C	70 °C	Duplex Multimode OM1	Black	0.25 dB	Orange	62.5/125	SC Duplex	16 mm	0.06 in	1.6 mm	Riser Zipcord
Panduit Corp F62ERLNSNSNM023	LC Duplex	Twin Zip	-20 C	70 °C	Duplex Multimode OM1	Black	0.25 dB	Orange	62.5/125	SC Duplex	16 mm	0.06 in	1.6 mm	Riser Zipcord
Panduit Corp F62ERLNSNSNM015	LC Duplex	Twin Zip	-20 C	70 °C	Duplex Multimode OM1	Black	0.25 dB	Orange	62.5/125	SC Duplex	16 mm	0.06 in	1.6 mm	Riser Zipcord
Panduit Corp F62ERLNLNSNM033	LC Duplex	Twin Zip	-20 C	70 °C	Duplex Multimode OM1	Black	0.25 dB	Orange	62.5/125	LC Duplex	16 mm	0.06 in	1.6 mm	Riser Zipcord
Panduit Corp F62ERLNSNSNM020	LC Duplex	Twin Zip	-20 C	70 °C	Duplex Multimode OM1	Black	0.25 dB	Orange	62.5/125	SC Duplex	16 mm	0.06 in	1.6 mm	Riser Zipcord
Panduit Corp F62ERLNSNSNM032	LC Duplex	Twin Zip	-20 C	70 °C	Duplex Multimode OM1	Black	0.25 dB	Orange	62.5/125	SC Duplex	16 mm	0.06 in	1.6 mm	Riser Zipcord
