AO740 Series

Catalog

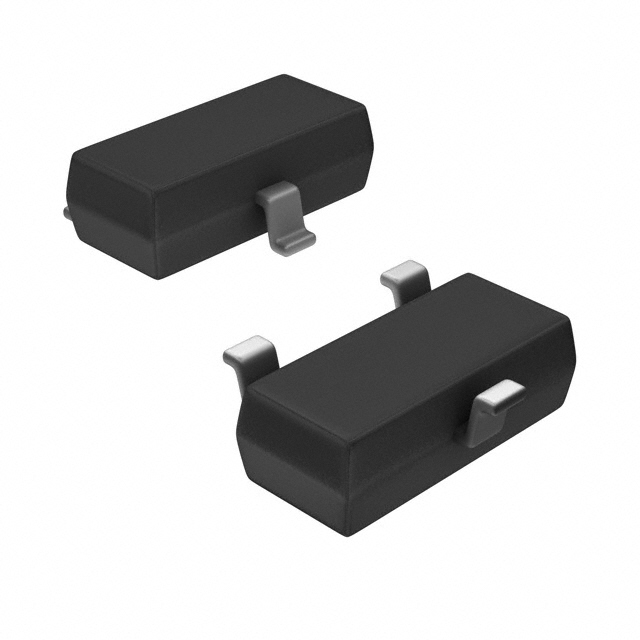

MOSFET N-CH 20V 1A SC70-3

Part	Power Dissipation (Max)	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs [Max]	Mounting Type	Rds On (Max) @ Id, Vgs	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	FET Type	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	Vgs (Max) [Max]	Technology	Input Capacitance (Ciss) (Max) @ Vds [Max]	Vgs (Max)	Drive Voltage (Max Rds On, Min Rds On)	Gate Charge (Qg) (Max) @ Vgs
Alpha & Omega Semiconductor Inc. AO7404	350 mW	SC-70-3	1.57 nC	Surface Mount	225 mOhm	SC-70 SOT-323	150 °C	-55 °C	1.8 V	4.5 V	N-Channel	20 V	101 pF	1 A	800 mV	8 V	MOSFET (Metal Oxide)
Alpha & Omega Semiconductor Inc. AO7401L	350 mW	SC-70-3		Surface Mount		SC-70 SOT-323	150 °C	-55 °C			P-Channel	30 V		1.2 A	1.4 V		MOSFET (Metal Oxide)	409 pF	12 V	2.5 V 10 V	5.06 nC
Alpha & Omega Semiconductor Inc. AO7401	350 mW	SC-70-3		Surface Mount		SC-70 SOT-323	150 °C	-55 °C			P-Channel	30 V		1.4 A	1.4 V		MOSFET (Metal Oxide)	409 pF	12 V	2.5 V 10 V	5.06 nC

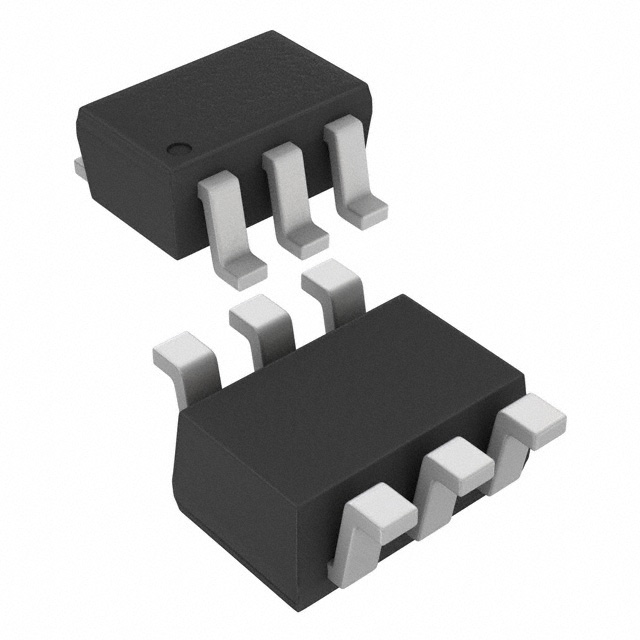

Alpha & Omega Semiconductor Inc. AO7408L	350 mW	SC-70-6		Surface Mount	62 mOhm	6-TSSOP SC-88 SOT-363	150 °C	-55 °C	1.8 V	4.5 V	N-Channel	20 V	320 pF	2 A	1 V	8 V	MOSFET (Metal Oxide)				4 nC
