KSF0M3 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 32V

Part	Contact Rating @ Voltage	Mechanical Life	Mounting Type	Circuit	Actuator Height off PCB, Vertical [z]	Illumination	Termination Style	Actuator Type	Actuator Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Outline [x]	Outline [y]	Switch Travel	Switch Function	Ingress Protection

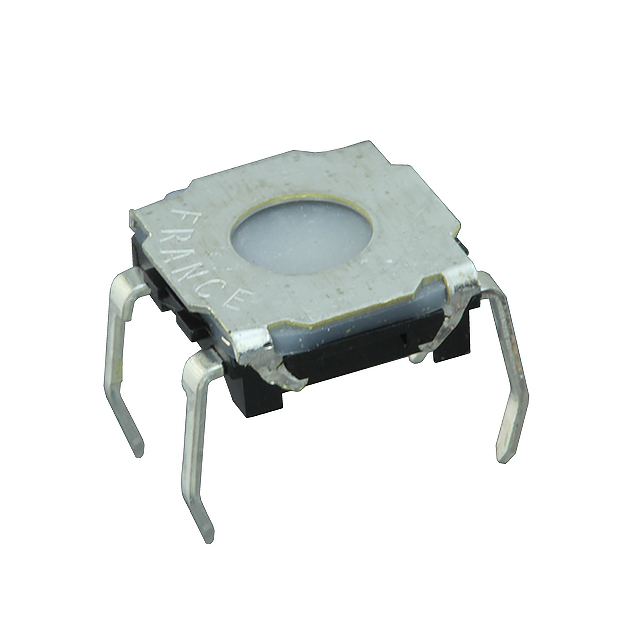

Littelfuse/Commercial Vehicle Products KSF0M311 LFTR	0.05 A	500000 Cycles	Through Hole	SPST-NO	2.6 mm	Non-Illuminated	PC Pin	Without	Top Actuated	85 °C	-40 °C	7.4 mm	7.3 mm	0.25 mm	Off-Mom	IP60
Littelfuse/Commercial Vehicle Products KSF0M331LFT	0.01 A 32 VDC	500000 Cycles	Through Hole	SPST-NO	2.6 mm	Non-Illuminated	PC Pin	Without	Top Actuated	125 °C	-40 °C	7.4 mm	7.3 mm	0.25 mm	Off-Mom	IP60
Littelfuse/Commercial Vehicle Products KSF0M331 LFTR	0.01 A 32 VDC	500000 Cycles	Through Hole	SPST-NO	2.6 mm	Non-Illuminated	PC Pin	Without	Top Actuated	125 °C	-40 °C	7.4 mm	7.3 mm	0.25 mm	Off-Mom	IP60
Littelfuse/Commercial Vehicle Products KSF0M311LFT	0.05 A	500000 Cycles	Through Hole	SPST-NO	2.6 mm	Non-Illuminated	PC Pin	Without	Top Actuated	85 °C	-40 °C	7.4 mm	7.3 mm	0.25 mm	Off-Mom	IP60
