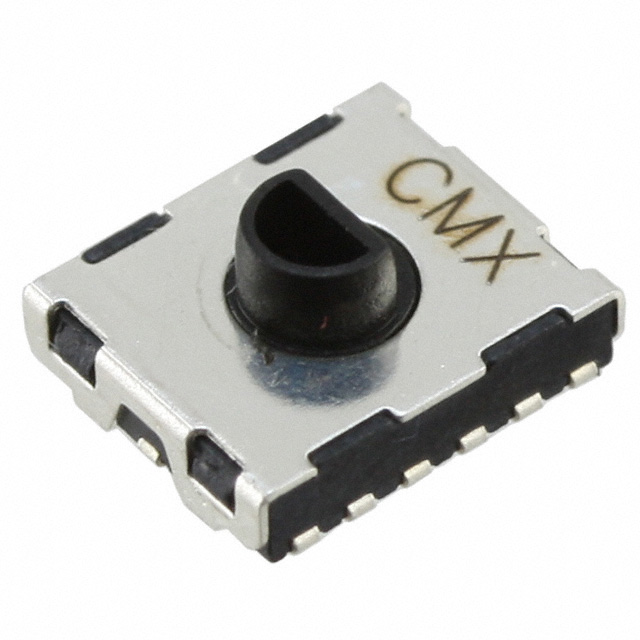

RW-1106 Series
Manufacturer: LITTELFUSE
Beta
⌘K
SWITCH ROTARY DIP SP10T 0.01A 5V
| Part | Termination Style | Body Material | Height Above Board [z] | Height Above Board [z] | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Actuator Level | Washable | Actuator Type | Length | Length | Mounting Type | Pitch | Pitch | Voltage Rating | Current Rating (Amps) | Contact Finish | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | J Lead | Liquid Crystal Polymer (LCP) | 0.12 in | 3.05 mm | 7000 Cycles | 80 °C | -30 ░C | SP10T | Raised | Rotary with Shaft | 7 mm | 0.276 in | Surface Mount | 0.042 in | 1.08 mm | 5 V | 10 mA | Gold | 10 |
