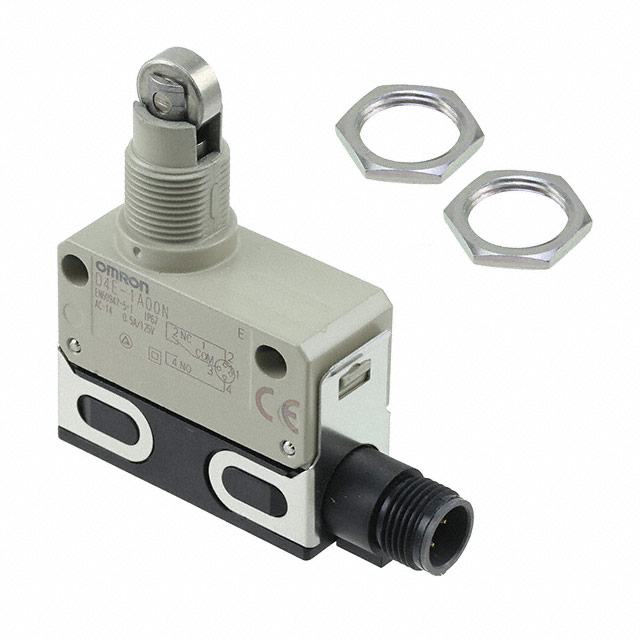

D4E-1A00 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACTION SPDT 1A 125V
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Actuator Type | Termination Style | Differential Travel | Differential Travel | Voltage Rating - AC | Circuit | Pretravel | Pretravel | Ingress Protection | Operating Force | Mechanical Life | Switch Function | Voltage Rating - DC | Current Rating (Amps) | Overtravel | Overtravel | Release Force | Operating Position | Operating Position |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | -10 °C | 80 °C | Panel Mount | Roller Plunger | Connector | 0.1 mm | 0.004 in | 125 V | SPDT | 0.06 in | 1.5 mm | IP67 - Dust Tight Waterproof | 1200 gf | 10000000 Cycles | On-Mom | 30 V | 1 A | 0.118 " | 3 mm | 500 gf | 1.235 in | 31.4 mm |
