ALS40A Series

Manufacturer: KEMET

Catalog

CAP ALUM 4700UF 20% 63V SCREW CH

Part	ESR (Equivalent Series Resistance)	Package / Case	Lifetime @ Temp.	Polarization	Voltage - Rated	Height - Seated (Max) [z]	Height - Seated (Max) [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Capacitance	Tolerance	Impedance	Mounting Type	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

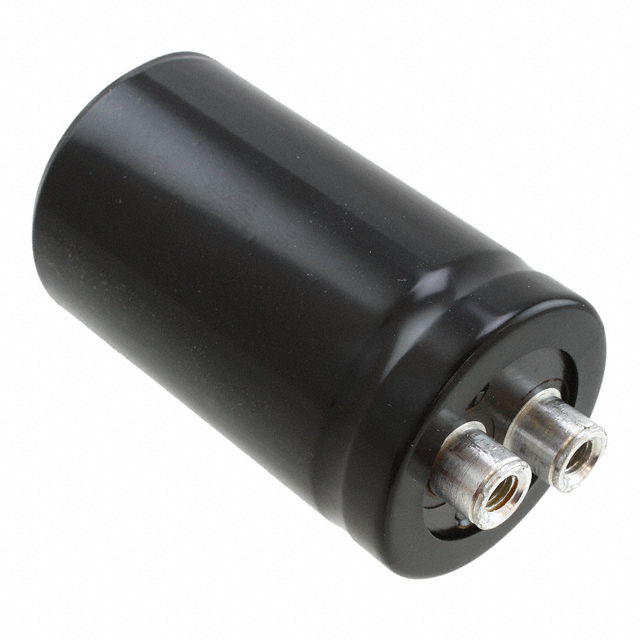

KEMET ALS40A472DB063	27 mOhm	Radial Can - Screw Terminals	6000 Hrs	Polar	63 V	64 mm	2.52 in	1.417 in	36 mm	-40 C	105 ░C	0.504 in	12.8 mm	4700 µF	20 %	22 mOhms	Chassis Mount	6.7 A	7.5 A	General Purpose
KEMET ALS40A473DF025	9 mOhm	Radial Can - Screw Terminals	6000 Hrs	Polar	25 VDC			1.417 in	36 mm	-40 C	105 ░C	0.504 in	12.8 mm	47 mF	20 %	8 mOhms	Chassis Mount	14 A	14.7 A	General Purpose	105 mm	4.134 "

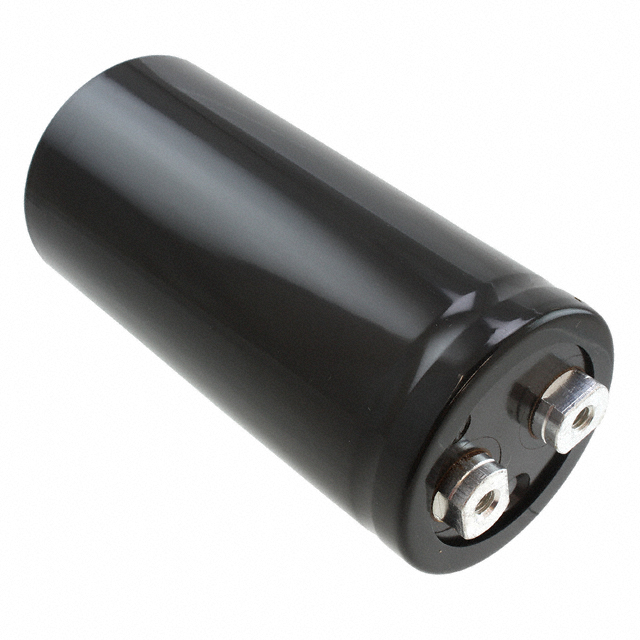

KEMET ALS40A103KF100	21 mOhm	Radial Can - Screw Terminals	7000 Hrs	Polar	100 V			2.008 in	51 mm	-40 C	105 ░C	0.874 in	22.2 mm	10000 µF	20 %	18 mOhms	Chassis Mount	10.9 A	11.5 A	General Purpose			4.213 in	107 mm
KEMET ALS40A472DF100	26 mOhm	Radial Can - Screw Terminals	6000 Hrs	Polar	100 V			1.417 in	36 mm	-40 C	105 ░C	0.504 in	12.8 mm	4700 µF	20 %	21 mOhms	Chassis Mount	8.1 A	9.3 A	General Purpose	105 mm	4.134 "

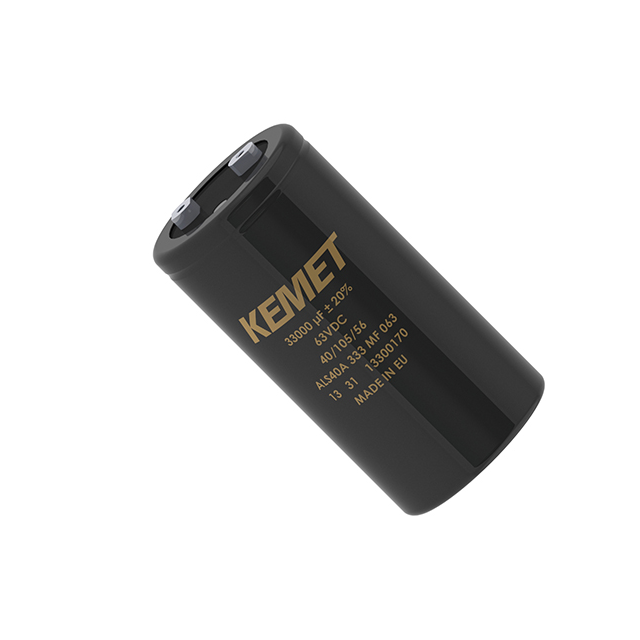

KEMET ALS40A221DE450	487 mOhm	Radial Can - Screw Terminals	6000 Hrs	Polar	450 V			1.417 in	36 mm	-40 C	105 ░C	0.504 in	12.8 mm	220 µF	20 %	242 mOhms	Chassis Mount	2.5 A	6.2 A	General Purpose				3.228 in	82 mm
KEMET ALS40A104KF025	9 mOhm	Radial Can - Screw Terminals	7000 Hrs	Polar	25 VDC			2.008 in	51 mm	-40 C	105 ░C	0.874 in	22.2 mm	100000 µF	20 %	8 mOhms	Chassis Mount	16.4 A	16.7 A	General Purpose			4.213 in	107 mm
