737-014 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 14POS 0.156

Part	Read Out	Termination Rows	Contact Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Material	Contact Finish	Color	Number of Rows	Gender	Number of Positions/Bay/Row [custom]	Material - Insulation	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Card Type

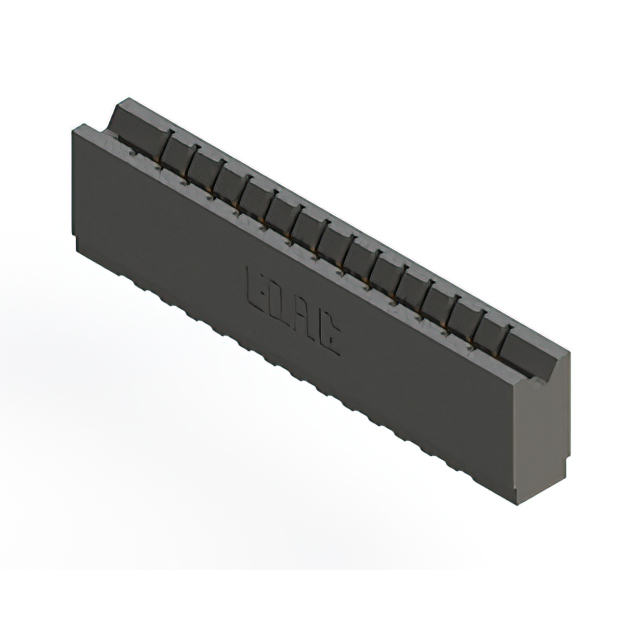

EDAC Inc. 737-014-525-106	Single	1	Cantilever	14	-40 °C	105 ░C	Press-Fit	Copper Alloy	Gold	Black	1	Female	14	Polyester Thermoplastic	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Through Hole	Non Specified - Single Edge

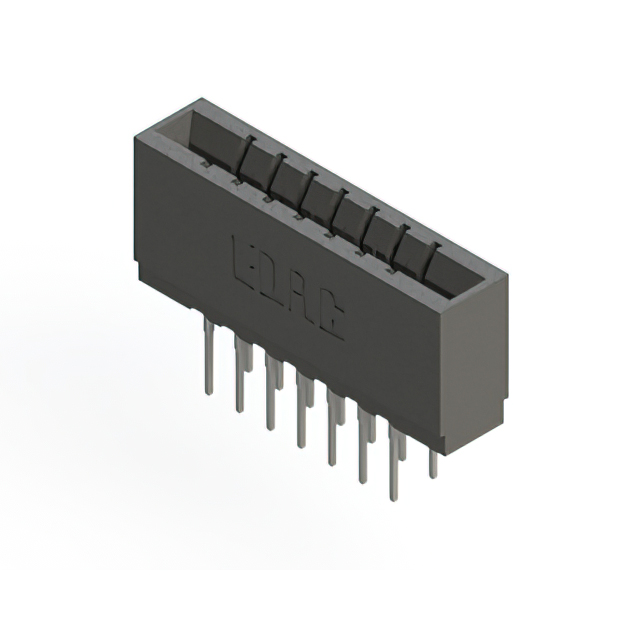

EDAC Inc. 737-014-522-201	Dual	2	Cantilever	14	-40 °C	105 ░C	Press-Fit	Copper Alloy	Gold	Black	2	Female	7	Polyester Thermoplastic	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Through Hole	Non Specified - Dual Edge
EDAC Inc. 737-014-520-106	Single	1	Cantilever	14	-40 °C	105 ░C	Press-Fit	Copper Alloy	Gold	Black	1	Female	14	Polyester Thermoplastic	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Through Hole	Non Specified - Single Edge

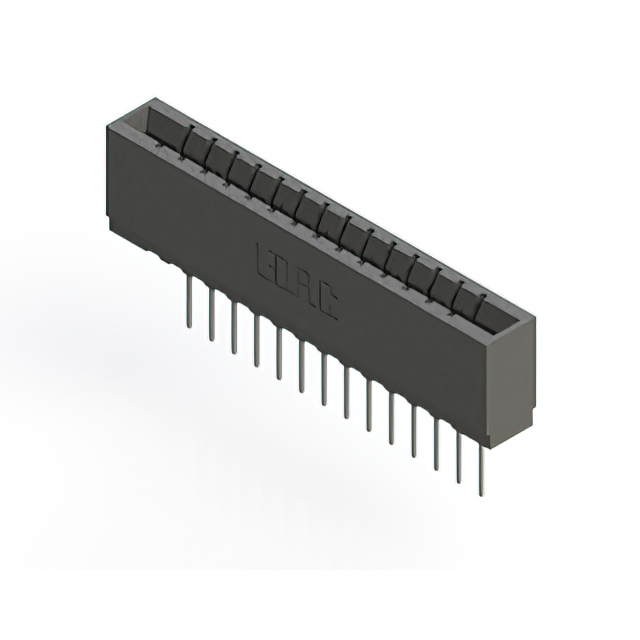

EDAC Inc. 737-014-540-101	Single	1	Cantilever	14	-40 °C	105 ░C	Press-Fit Wire Wrap	Copper Alloy	Gold	Black	1	Female	14	Polyester Thermoplastic	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Through Hole	Non Specified - Single Edge

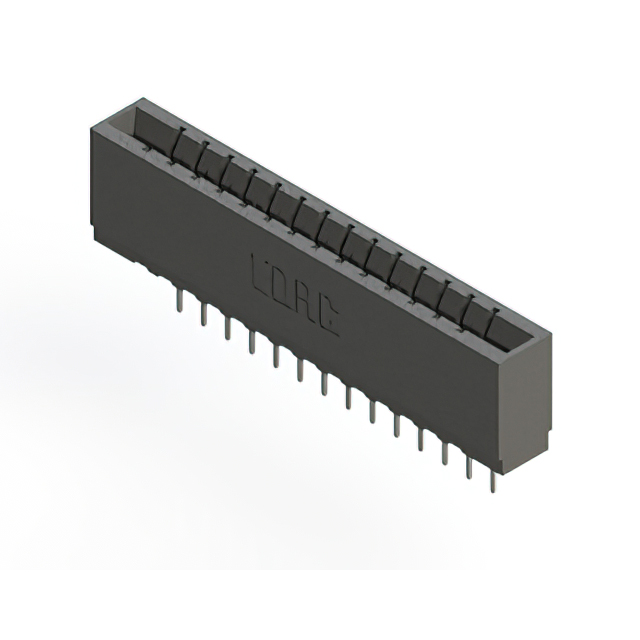

EDAC Inc. 737-014-522-101	Single	1	Cantilever	14	-40 °C	105 ░C	Press-Fit	Copper Alloy	Gold	Black	1	Female	14	Polyester Thermoplastic	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Through Hole	Non Specified - Single Edge
EDAC Inc. 737-014-545-106	Single	1	Cantilever	14	-40 °C	105 ░C	Press-Fit Wire Wrap	Copper Alloy	Gold	Black	1	Female	14	Polyester Thermoplastic	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Through Hole	Non Specified - Single Edge

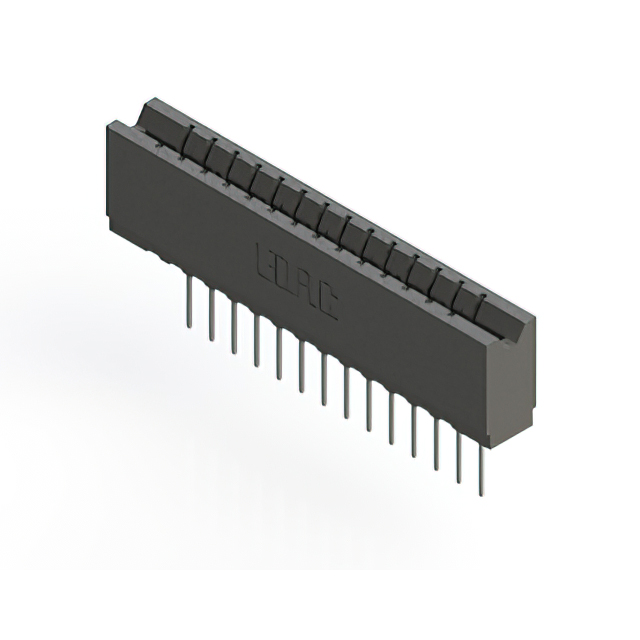

EDAC Inc. 737-014-540-106	Single	1	Cantilever	14	-40 °C	105 ░C	Press-Fit Wire Wrap	Copper Alloy	Gold	Black	1	Female	14	Polyester Thermoplastic	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Through Hole	Non Specified - Single Edge

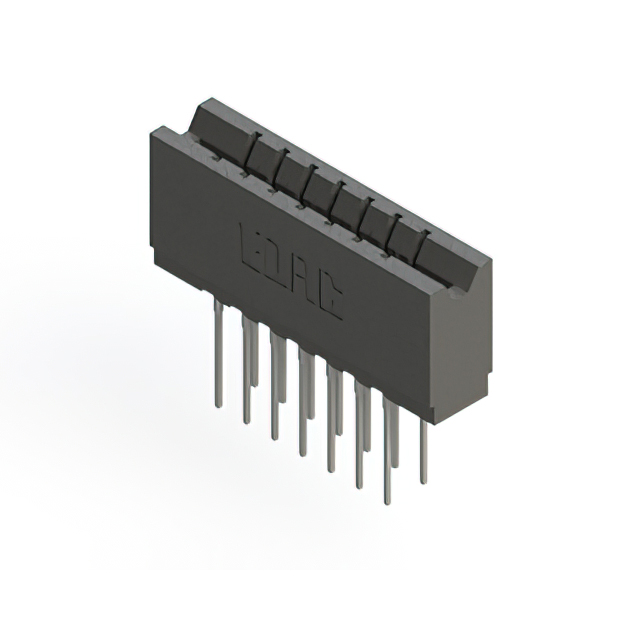

EDAC Inc. 737-014-540-206	Dual	2	Cantilever	14	-40 °C	105 ░C	Press-Fit Wire Wrap	Copper Alloy	Gold	Black	2	Female	7	Polyester Thermoplastic	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Through Hole	Non Specified - Dual Edge

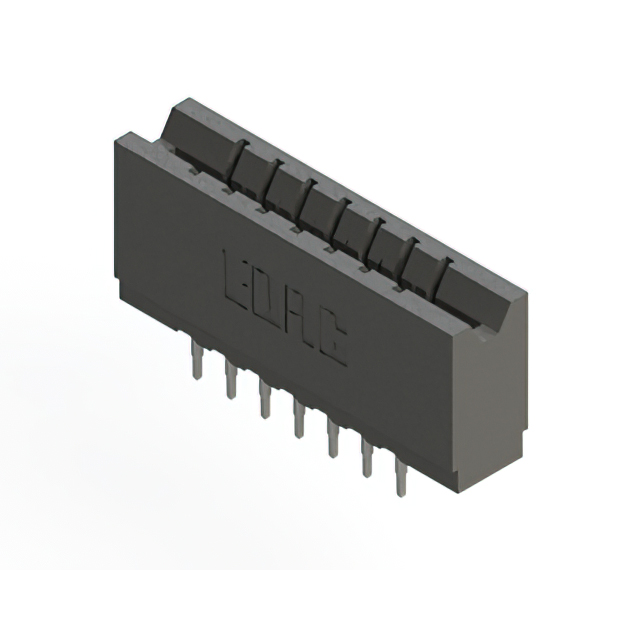

EDAC Inc. 737-014-520-206	Dual	2	Cantilever	14	-40 °C	105 ░C	Press-Fit	Copper Alloy	Gold	Black	2	Female	7	Polyester Thermoplastic	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Through Hole	Non Specified - Dual Edge

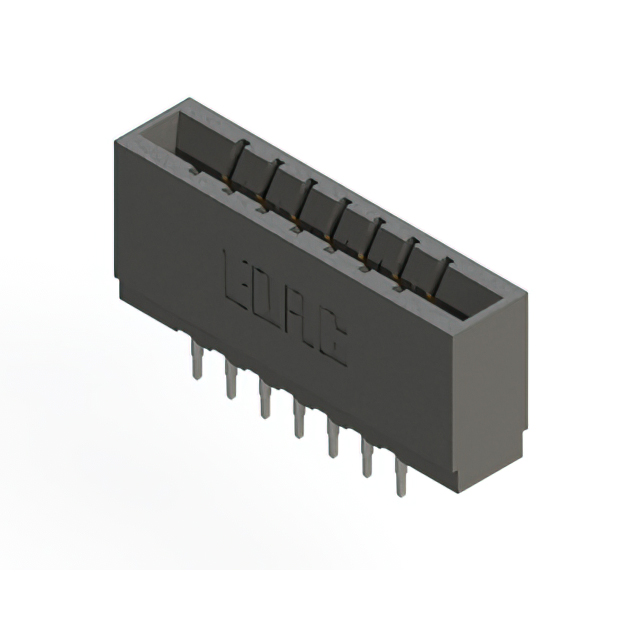

EDAC Inc. 737-014-525-201	Dual	2	Cantilever	14	-40 °C	105 ░C	Press-Fit	Copper Alloy	Gold	Black	2	Female	7	Polyester Thermoplastic	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Through Hole	Non Specified - Dual Edge
